Manufacturer part number
ES-48-Lite
Warranty
?
12 months
EAN
0810354022296

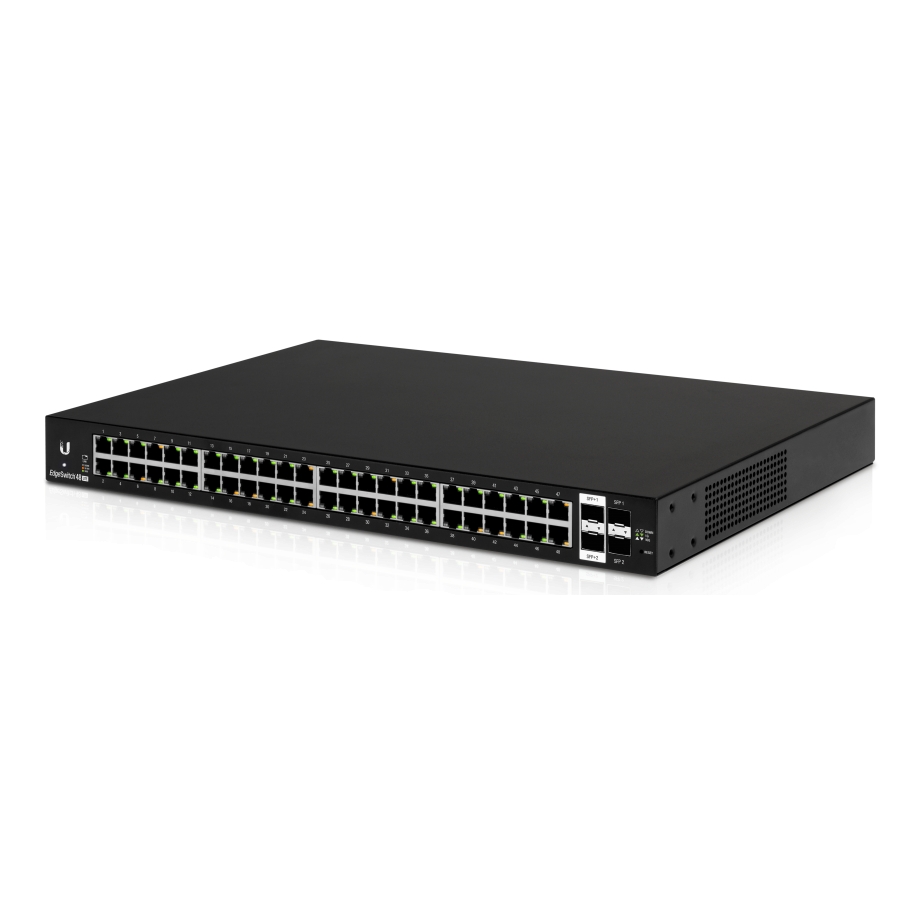

UISP EdgeSwitch 48 Lite
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description

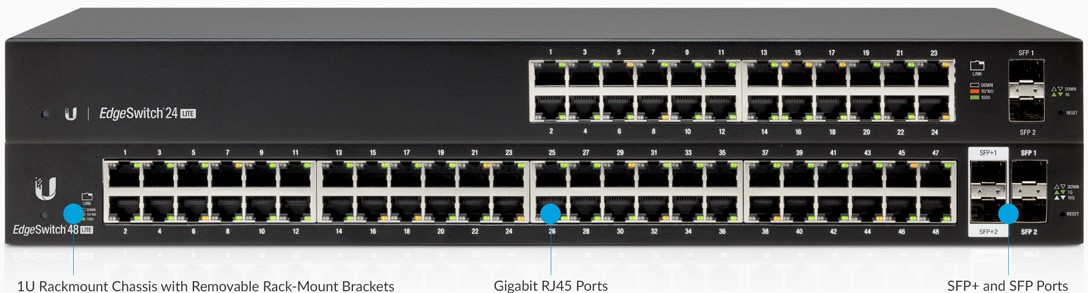

Powerful Enterprise Switch Models
The EdgeSwitch® Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for the 24-port models and up to 70 Gbps for the 48-port models.
Enterprise-Class Features
The EdgeSwitch® Lite supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

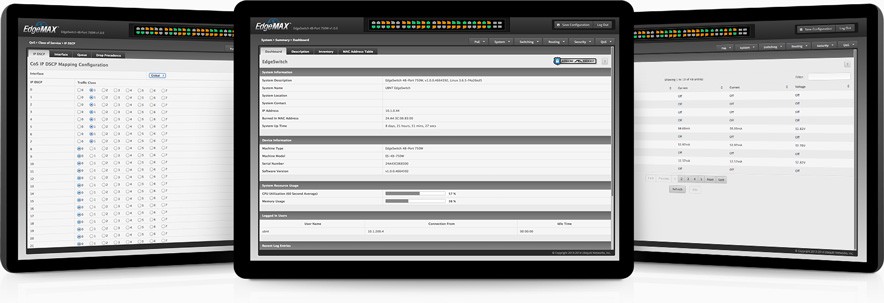

Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Technical Specs / Datasheet
Specifications
Interfaces
RJ45 Ports
(48) 1 Gbps
PoE Out Standards
w/o PoE
SFP Ports
(2) 1G SFP, (2) 10G SFP+
Communication Interface
RJ45
Management
Ethernet
Power
Power Method
AC/DC Adapter
Power Supply
Internal PSU
Supported Input Voltage
16 - 25 V DC, 100 - 240 V AC
Max Power Consumption
56 W
Power Connector
DC Plug 2.1 x 5.5 mm
Physical Parameters
Color
Black
Dimensions
443 x 43 x 286 mm
Weight
3.65 kg
Operating Temperature
-5 °C to 40 °C
Environment
Indoor
Form Factor
Rack-mounted 19", Desktop
Number of Rack Units
1U
Mounting Method
RackMount, Wall Mount
