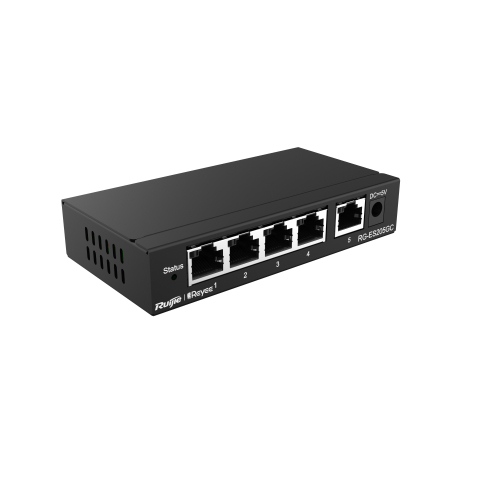

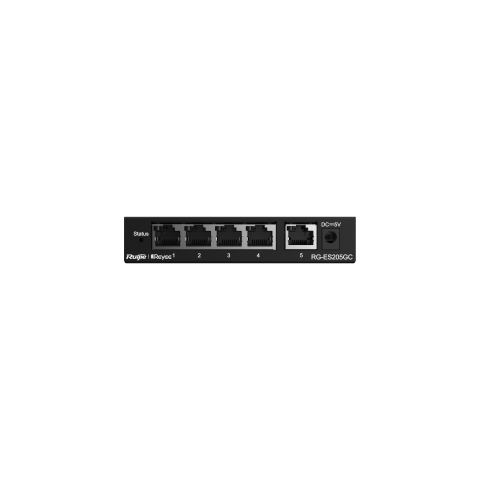

RG-ES205GC is a high-quality managed gigabit switch designed for enterprise, hospitality, factory, education, retail, surveillance, etc. This switch is equipped with 5 Gigabit Ethernet ports, providing high-speed, reliable and secure data transmission. RG-ES205GC switch provides an incredibly reliable and efficient network performance, offering 10 Gbps switching capacity and 7.44 Mpps forwarding rate.
The RG-ES205GC supports the management via Ruijie Cloud application, that allows to use self-organizing network, configure VLANs and monitor switch statistics at anytime anywhere. The switch provides robust performance with features such as flow control, loop prevention, broadcast storm suppression and port isolation.
Cost-Effective Smart Cloud Managed Switches
Unique Value for CCTV Network
Automatic Loop Prevention Ensures Service Continuity
Compare with similar products
| | | | |
---|
Ethernet Ports | |
| |
5 x 1 Gbps
| 16 x 1 Gbps
| 24 x 1 Gbps
| 8 x 1 Gbps
|
Switching capacity | |
| |
10 Gbps
| 32 Gbps
| 48 Gbps
| 16 Gbps
|
Forwarding rate | |
| |
7.44 Mpps
| 23.81 Mpps
| 35.71 Mpps
| 11.90 Mpps
|
MAC address table | |
| |
2000
| 8000
| 8000
| 4000
|
Max Power Consumption | |
| |
3 W
| 12 W
| 14 W
| 4 W
|
Dimensions | |
| |
119 x 75 x 24 mm
| 440 x 165 x 44 mm
| 440 x 165 x 44 mm
| 119 x 75 x 24 mm
|
Weight | |
| |
0.36 kg
| 2.7 kg
| 2.8 kg
| 0.36 kg
|
Operating Temperature | |
| |
0 °C to 40 °C
| 0 °C to 50 °C
| 0 °C to 50 °C
| 0 °C to 40 °C
|
| | | | |
---|
Ethernet Ports | 5 x 1 Gbps
| 16 x 1 Gbps
| 24 x 1 Gbps
| 8 x 1 Gbps
|
Switching capacity | 10 Gbps
| 32 Gbps
| 48 Gbps
| 16 Gbps
|
Forwarding rate | 7.44 Mpps
| 23.81 Mpps
| 35.71 Mpps
| 11.90 Mpps
|
MAC address table | 2000
| 8000
| 8000
| 4000
|
Max Power Consumption | 3 W
| 12 W
| 14 W
| 4 W
|
Dimensions | 119 x 75 x 24 mm
| 440 x 165 x 44 mm
| 440 x 165 x 44 mm
| 119 x 75 x 24 mm
|
Weight | 0.36 kg
| 2.7 kg
| 2.8 kg
| 0.36 kg
|
Operating Temperature | 0 °C to 40 °C
| 0 °C to 50 °C
| 0 °C to 50 °C
| 0 °C to 40 °C
|
Technical Specs / Datasheet
