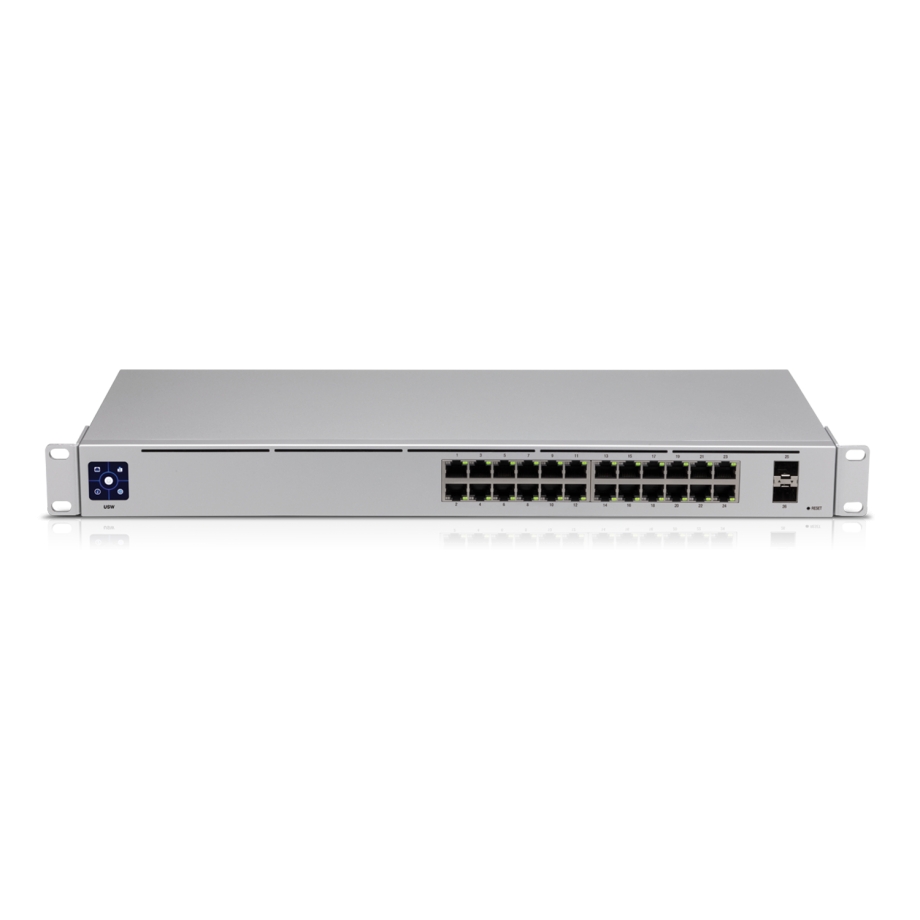

Ubiquiti UniFi Switch Standard 24
Ubiquiti Elite Distributor
in stock
?
202.56 €
202.56 €
Ubiquiti Elite Distributor
Available product variations
Detailed description
USW-24 is a managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) SFP ports. Its compact 7.9" depth and fanless design allow it to be placed in any workspace, and the 1.3" touchscreen provides current switch states and the necessary information you need for quick diagnosis.

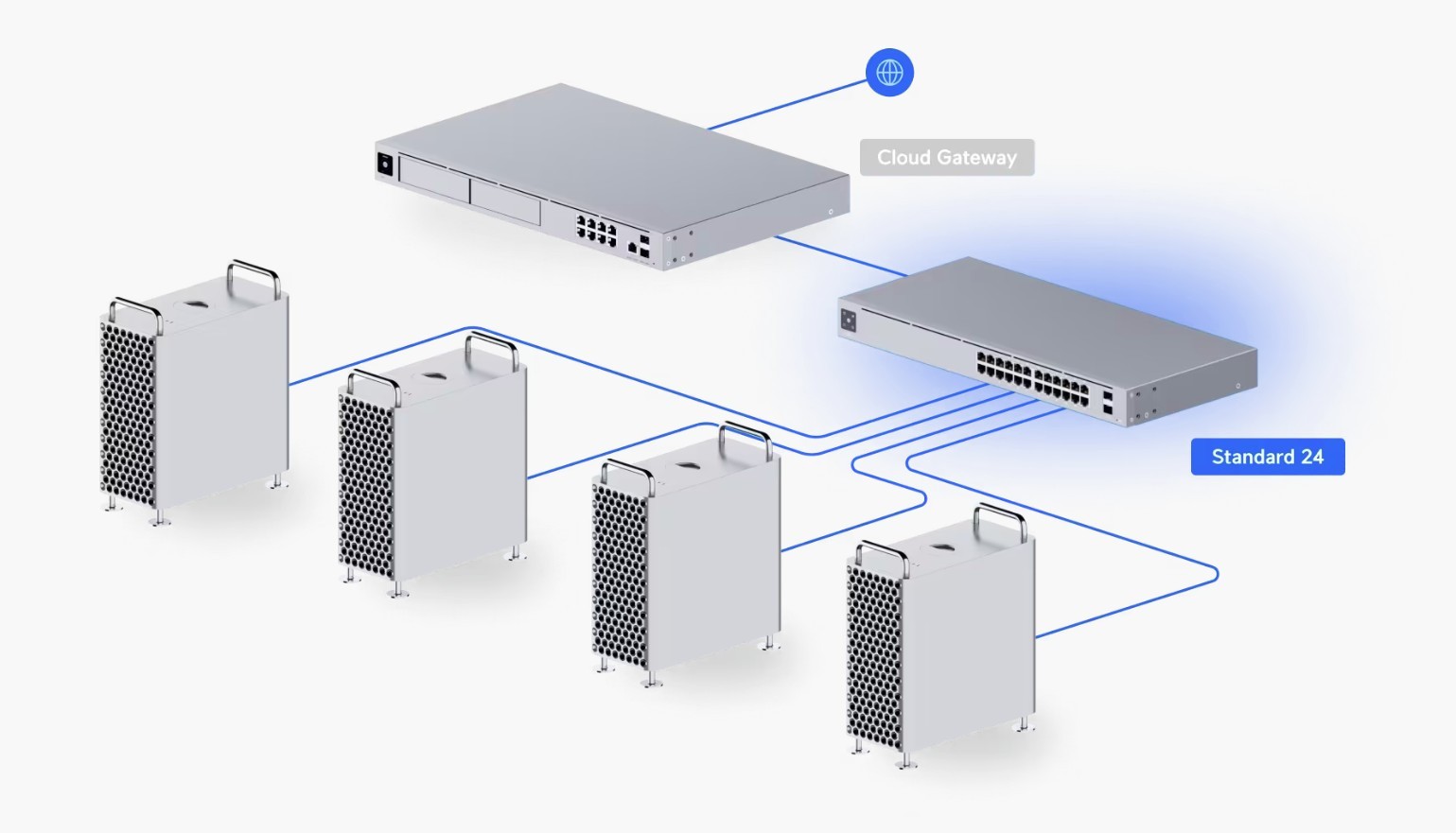

Placement scheme
Works with the UniFi Network Application
Managed and configured by the UniFi Network Application with UniFi mobile app support, the USW-24 offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Application and mobile app allow admins to configure and monitor virtually all the switch features in a graphical user interface from anywhere.
Augmented reality for switch management
Industry’s first AR (augmented reality) switch management simplifies network changes.
Compare with similar products
| Ethernet Ports | |||||
| 24 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | |
| PoE Out Ports | |||||
| 8 x 802.3af (PoE), 802.3at (PoE+) | 16 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+ | |||
| SFP Ports | |||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 4 x 1G SFP | 4 x 1G SFP | |
| Management | |||||
| Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | |
| Max Power Consumption | |||||
| 25 W | 60W | 120 W | 40 W | 240 W | |
| Operating Temperature | |||||
| -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -15 °C to 40 °C | -5 °C to 40 °C | |
| Dimensions | |||||
| 443 x 200 x 44 mm | 442.4 x 200 x 43.7 mm | 442.4 x 200 x 43.7 mm | 443 x 285 x 44 mm | 442.4 x 285 x 43.7 mm | |
| Weight | |||||
| 2.79 kg | 2.89 kg | 3.09 kg | 3.99 kg | 4.61 kg | |
| Mounting Method | |||||
| RackMount | RackMount | RackMount | RackMount | RackMount | |
| Environment | |||||
| Indoor | Indoor | Indoor | Indoor | Indoor | |
| Ethernet Ports | 24 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps |
| PoE Out Ports | 8 x 802.3af (PoE), 802.3at (PoE+) | 16 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+ | ||
| SFP Ports | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 4 x 1G SFP | 4 x 1G SFP |
| Management | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Max Power Consumption | 25 W | 60W | 120 W | 40 W | 240 W |
| Operating Temperature | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -15 °C to 40 °C | -5 °C to 40 °C |
| Dimensions | 443 x 200 x 44 mm | 442.4 x 200 x 43.7 mm | 442.4 x 200 x 43.7 mm | 443 x 285 x 44 mm | 442.4 x 285 x 43.7 mm |
| Weight | 2.79 kg | 2.89 kg | 3.09 kg | 3.99 kg | 4.61 kg |
| Mounting Method | RackMount | RackMount | RackMount | RackMount | RackMount |
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
Specifications
Interfaces
RJ45 Ports
(24) 1 Gbps
PoE Out Standards
w/o PoE
SFP Ports
(2) 1G SFP
Management
Ethernet
Power
Power Supply
Internal PSU
Supported Input Voltage
100 - 240 V AC
Max Power Consumption
25 W
Physical Parameters
Color
Silver
Material
Metal
Dimensions
443 x 200 x 44 mm
Weight
2.79 kg
Operating Temperature
-5 °C to 40 °C
Environment
Indoor
Form Factor
Rack-mounted 19"
Number of Rack Units
1U
Mounting Method
RackMount
