Ubiquiti UniFi Switch Standard 48 PoE

Ubiquiti Elite Distributor

in stock

522.30 €

in stock

522.30 €

plug

Brand

Ubiquiti

Manufacturer part number

USW-48-POE

Warranty

12 months

EAN

0810010072146

Available product variations

Ubiquiti UniFi Switch Standard 24 PoE

USW-24-POE

Detailed description

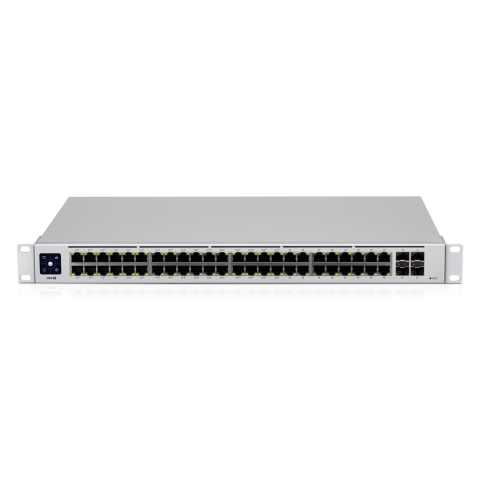

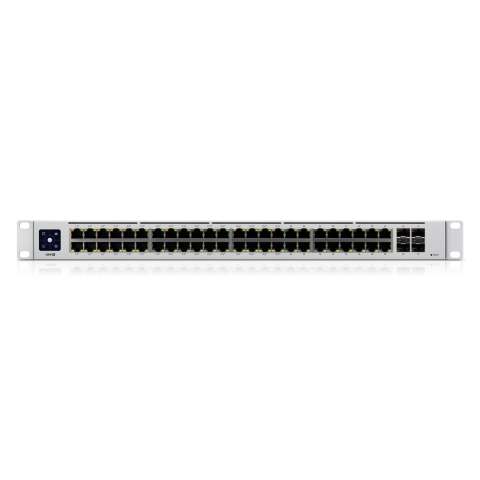

The UniFi Switch 48 PoE is a high-performance 48-port PoE-enabled managed switch. The switch features 48 Gigabit Ethernet ports (including 32 ports with 802.3at PoE+ support with auto-discovery), and 4 SFP ports. Powerful second-generation UniFi switching. This model of customizable Layer 2 Gigabit Layer 2 Switch, will easily provide gigabit powered connectivity to your RJ45 Ethernet devices and switch traffic. Equipped with a 1.3-inch LCM touchscreen display, it will help both quick operation and display the current status of the device.

/images/catalogue/description/436/usw48poe1-653f646bc53ce-1406x1200.jpg

Placement scheme

/images/catalogue/description/436/usw244-653f647c4967f-1960x1066.jpg

Works with the UniFi Network Application

Managed and configured by the UniFi Network Application with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Application and mobile app allow admins to configure and monitor virtually all the switch features in a graphical user interface from anywhere.

/images/catalogue/description/436/swunifinetwork-6374c2d5b807f-838x479.jpg

Augmented reality for switch management

Industry’s first AR (augmented reality) switch management simplifies network changes.

Compare with similar products

	Switch Standard 48 PoE	Switch Standard 16 PoE	Switch Standard 24	Switch Standard 24 PoE
Ethernet Ports

48 x 1 Gbps	16 x 1 Gbps	24 x 1 Gbps	24 x 1 Gbps	48 x 1 Gbps
PoE Out Ports

48 x 802.3af (PoE), 802.3at (PoE+	8 x 802.3af (PoE), 802.3at (PoE+)		16 x 802.3af (PoE), 802.3at (PoE+)
SFP Ports

4 x 1G SFP	2 x 1G SFP	2 x 1G SFP	2 x 1G SFP	4 x 1G SFP
Management

Ethernet	Ethernet	Ethernet	Ethernet	Ethernet
Max Power Consumption

240 W	60W	25 W	120 W	40 W
Operating Temperature

-5 °C to 40 °C	-5 °C to 40 °C	-5 °C to 40 °C	-5 °C to 40 °C	-15 °C to 40 °C
Dimensions

442.4 x 285 x 43.7 mm	442.4 x 200 x 43.7 mm	443 x 200 x 44 mm	442.4 x 200 x 43.7 mm	443 x 285 x 44 mm
Weight

4.61 kg	2.89 kg	2.79 kg	3.09 kg	3.99 kg
Mounting Method

RackMount	RackMount	RackMount	RackMount	RackMount
Environment

Indoor	Indoor	Indoor	Indoor	Indoor

	Switch Standard 48 PoE	Switch Standard 16 PoE	Switch Standard 24	Switch Standard 24 PoE	Switch Standard 48
Ethernet Ports	48 x 1 Gbps	16 x 1 Gbps	24 x 1 Gbps	24 x 1 Gbps	48 x 1 Gbps
PoE Out Ports	48 x 802.3af (PoE), 802.3at (PoE+	8 x 802.3af (PoE), 802.3at (PoE+)		16 x 802.3af (PoE), 802.3at (PoE+)
SFP Ports	4 x 1G SFP	2 x 1G SFP	2 x 1G SFP	2 x 1G SFP	4 x 1G SFP
Management	Ethernet	Ethernet	Ethernet	Ethernet	Ethernet
Max Power Consumption	240 W	60W	25 W	120 W	40 W
Operating Temperature	-5 °C to 40 °C	-5 °C to 40 °C	-5 °C to 40 °C	-5 °C to 40 °C	-15 °C to 40 °C
Dimensions	442.4 x 285 x 43.7 mm	442.4 x 200 x 43.7 mm	443 x 200 x 44 mm	442.4 x 200 x 43.7 mm	443 x 285 x 44 mm
Weight	4.61 kg	2.89 kg	2.79 kg	3.09 kg	3.99 kg
Mounting Method	RackMount	RackMount	RackMount	RackMount	RackMount
Environment	Indoor	Indoor	Indoor	Indoor	Indoor
