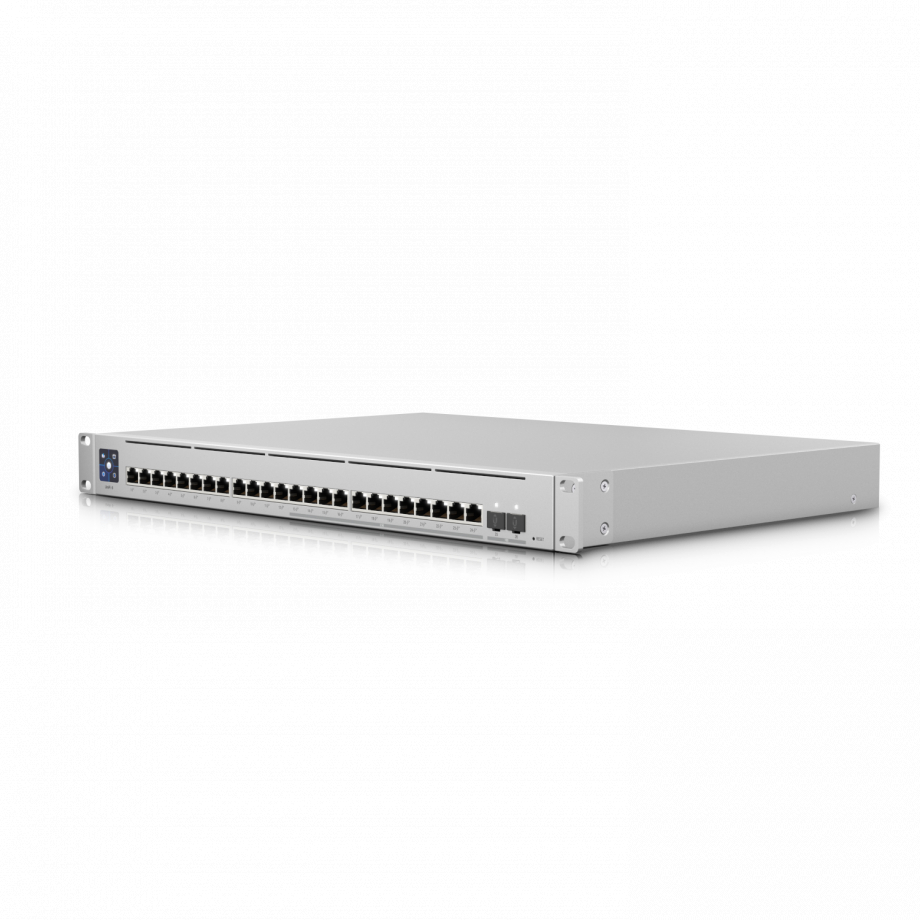

Ubiquiti UniFi Switch Enterprise 24 PoE
Ubiquiti Elite Distributor
in stock
?
708.41 €
708.41 €
Ubiquiti Elite Distributor
Available product variations
Detailed description

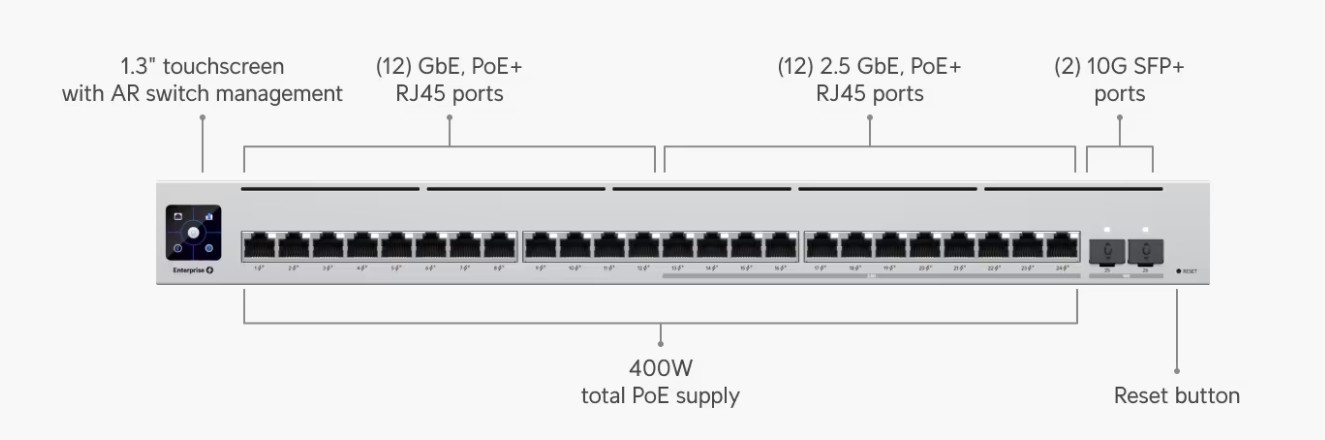

The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network Application and mobile app.

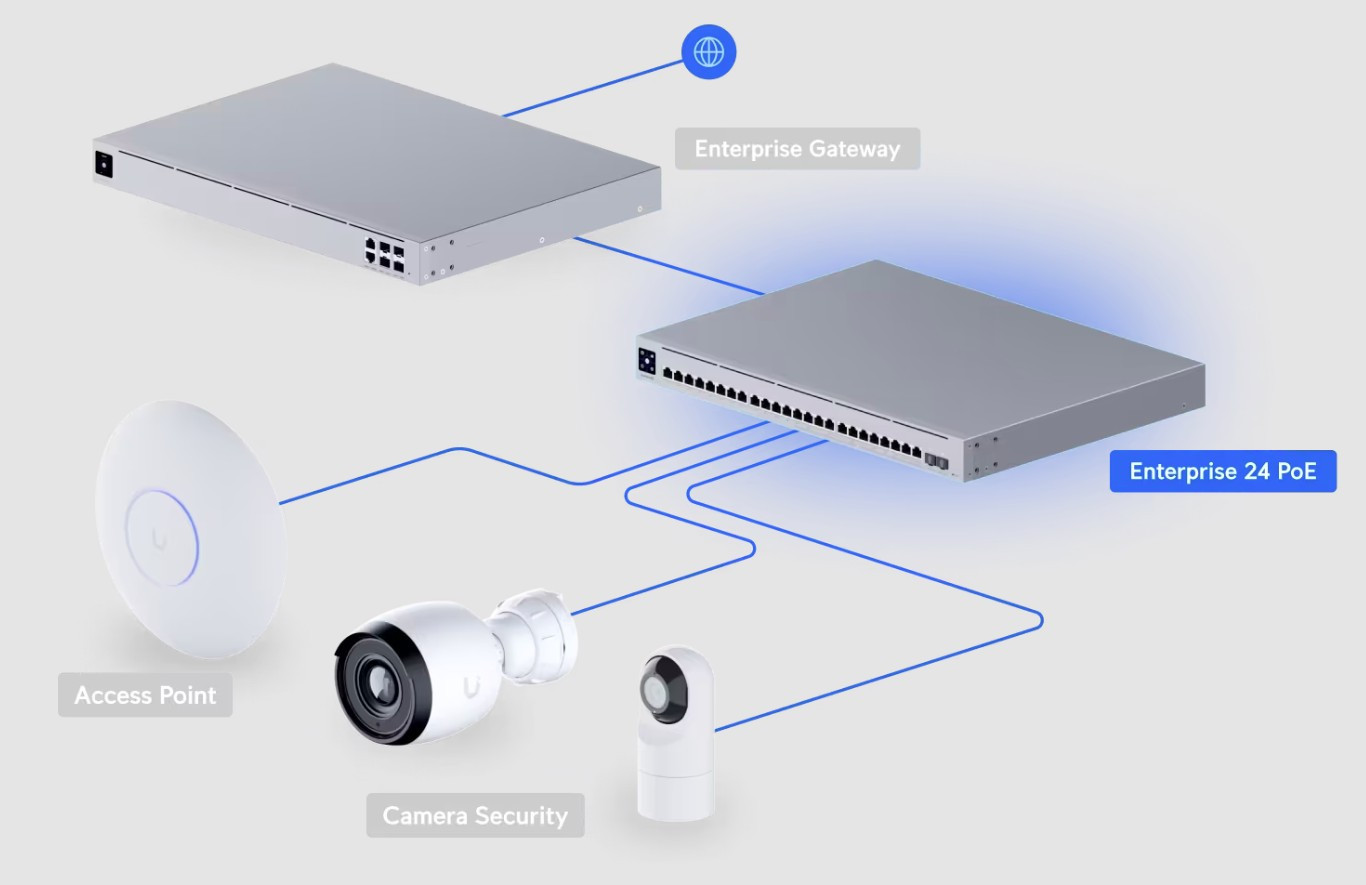

Placement scheme
Works with the UniFi Network Application
Augmented reality for switch management
Industry’s first AR (augmented reality) switch management simplifies network changes.
Compare with similar products
| Ethernet Ports | ||||
| 12 x 1 Gbps, 12 x 2.5 Gbps | 48 x 2.5 Gbps | 8 x 2.5 Gbps | 24 x 10 Gbps | |
| PoE Out Ports | ||||
| 24 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+) | 8 x 802.3af (PoE), 802.3at (PoE+) | ||
| SFP Ports | ||||
| 2 x 10G SFP+ | 4 x 10G SFP+ | 2 x 10G SFP+ | 2 x 25G SFP28 | |
| Management | ||||
| Ethernet | Ethernet | Ethernet | Ethernet | |
| Max Power Consumption | ||||
| 550 W | 870 W | 150 W | 100 W | |
| Operating Temperature | ||||
| -5 °C to 40 °C | -5 °C a 40 °C | -5 °C to 45 °C | -5 °C to 40 °C | |
| Dimensions | ||||
| 442 x 44 x 325 mm | 442 x 44 x 400 mm | 200 x 248 x 44 mm | 442 x 44 x 285 mm | |
| Weight | ||||
| 5.2 kg | 6.3 kg | 2.44 kg | 4.57 kg | |
| Mounting Method | ||||
| RackMount | RackMount | Wall Mount, Tabletop | RackMount | |
| Environment | ||||
| Indoor | Indoor | Indoor | Indoor | |
| Ethernet Ports | 12 x 1 Gbps, 12 x 2.5 Gbps | 48 x 2.5 Gbps | 8 x 2.5 Gbps | 24 x 10 Gbps |
| PoE Out Ports | 24 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+) | 8 x 802.3af (PoE), 802.3at (PoE+) | |
| SFP Ports | 2 x 10G SFP+ | 4 x 10G SFP+ | 2 x 10G SFP+ | 2 x 25G SFP28 |
| Management | Ethernet | Ethernet | Ethernet | Ethernet |
| Max Power Consumption | 550 W | 870 W | 150 W | 100 W |
| Operating Temperature | -5 °C to 40 °C | -5 °C a 40 °C | -5 °C to 45 °C | -5 °C to 40 °C |
| Dimensions | 442 x 44 x 325 mm | 442 x 44 x 400 mm | 200 x 248 x 44 mm | 442 x 44 x 285 mm |
| Weight | 5.2 kg | 6.3 kg | 2.44 kg | 4.57 kg |
| Mounting Method | RackMount | RackMount | Wall Mount, Tabletop | RackMount |
| Environment | Indoor | Indoor | Indoor | Indoor |
Compatible products
Specifications
Interfaces
RJ45 Ports
(12) 1 Gbps, (12) 2.5 Gbps
Number of PoE Ports
24 pcs
PoE Out Standards
802.3af (PoE), 802.3at (PoE+)
SFP Ports
(2) 10G SFP+
Management
Ethernet
Power
Power Method
USP RPS DC input
Power Supply
Internal PSU
Supported Input Voltage
100 - 240 V AC
Max Power Consumption
550 W
Physical Parameters
Color
Silver
Material
Metal
Dimensions
442 x 44 x 325 mm
Weight
5.2 kg
Operating Temperature
-5 °C to 40 °C
Environment
Indoor
Form Factor
Rack-mounted 19"
Number of Rack Units
1U
Mounting Method
RackMount
