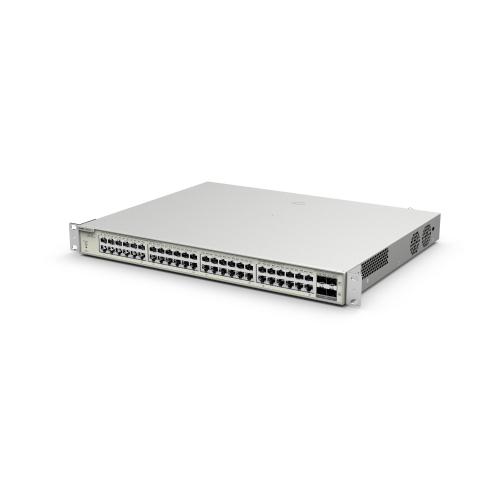

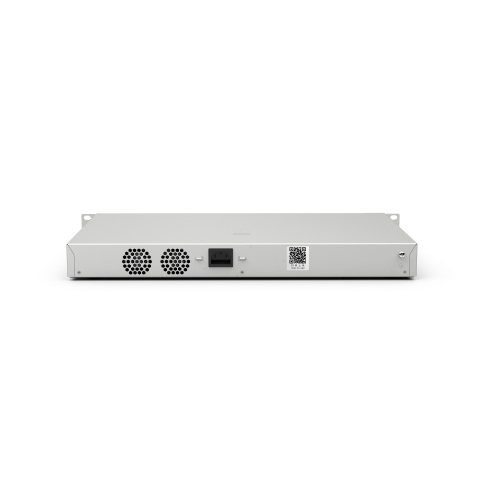

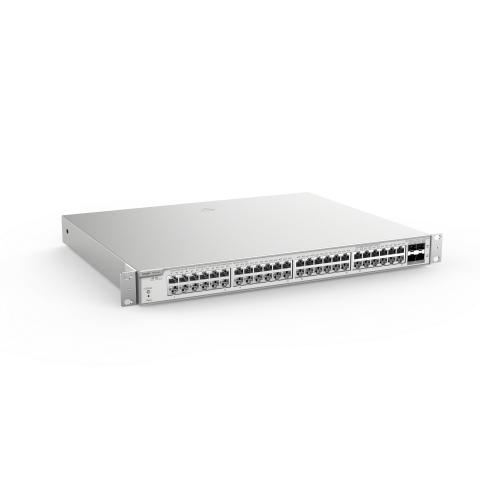

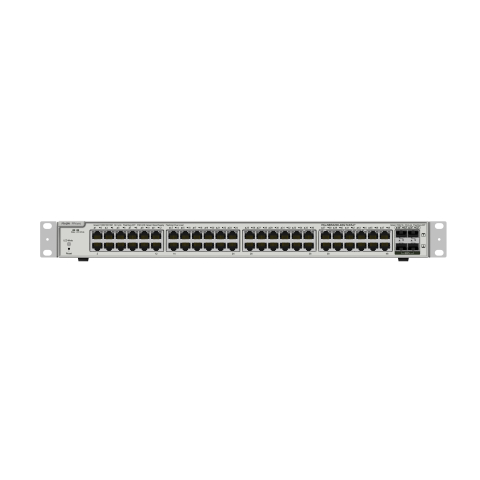

Reyee 48-Port Gigabit Layer 2 Managed PoE Switch
in stock
?
1109.01 €
1109.01 €
Detailed description
The Power of Reyee PoE Switches
The Reyee PoE Switch series is a revolutionary range of network switches explicitly designed for Power over Ethernet (PoE) applications. They provide high-speed, reliable and secure data transmission, while simultaneously powering up PoE-enabled devices like cameras, wireless access points, VoIP phones and other connected devices. Reyee switches are available in different versions, giving you the opportunity to choose the model with the features that will best meet your requirements.

Exceptional Performance and Reliability
Reyee PoE Switches provide an incredibly reliable and efficient network performance, making them ideal for applications across many industries and sectors. The RG-NBS3200 series offers switches with up to 8/24/48 ports and 2-4 SFP ports. Reyee PoE Switches provide robust performance with features such as port security, loop guard and storm control, making them a safe and secure choice for PoE applications.

Advanced Features for Increased Productivity
Reyee PoE Switches are packed with advanced features to ensure optimal performance and increased productivity. The RG-NBS3200 series supports PoE scheduling, PoE Auto Recovery and PoE port setting, as well as PoE surge protection and IEEE802.3at/af detection. By providing these advanced features, Reyee PoE Switches help to reduce network downtime and improve the overall user experience.
Multiple Security Policies to Protect Your Network
Compare with similar products
Ethernet Ports | ||||
48 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps | |
PoE Out Ports | ||||
48 x 802.3af (PoE), 802.3at (PoE+) | 8 x 802.3af (PoE), 802.3at (PoE+) | 24 x 802.3af (PoE), 802.3at (PoE+) | 24 x 802.3af (PoE), 802.3at (PoE+) | |
SFP ports | ||||
4 x 10G SFP+ | 2 x 1G SFP | 4 x 10G SFP+ | 4 x 1G SFP | |
Switching capacity | ||||
176 Gbps | 20 Gbps | 128 Gbps | 56 Gbps | |
Forwarding rate | ||||
130.95 Mpps | 14.88 Mpps | 95.24 Mpps | 41.67 Mpps | |
MAC address table | ||||
16000 | 8000 | 16000 | 8000 | |
Link Aggregation Group (LAG) | ||||
16 | 8 | 16 | 8 | |
ACL | ||||
1900 | 1200 | 1900 | 1200 | |
Max Power Consumption | ||||
448 W | 145 W | 432 W | 443 W | |
Dimensions | ||||
440 x 358 x 44 mm | 330 x 220 x 43.6 mm | 440 x 357.6 x 43.6 mm | 440 x 293 x 44 mm | |
Weight | ||||
5.4 kg | 2 kg | 4.75 kg | 4.5 kg |
Ethernet Ports | 48 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps |
PoE Out Ports | 48 x 802.3af (PoE), 802.3at (PoE+) | 8 x 802.3af (PoE), 802.3at (PoE+) | 24 x 802.3af (PoE), 802.3at (PoE+) | 24 x 802.3af (PoE), 802.3at (PoE+) |
SFP ports | 4 x 10G SFP+ | 2 x 1G SFP | 4 x 10G SFP+ | 4 x 1G SFP |
Switching capacity | 176 Gbps | 20 Gbps | 128 Gbps | 56 Gbps |
Forwarding rate | 130.95 Mpps | 14.88 Mpps | 95.24 Mpps | 41.67 Mpps |
MAC address table | 16000 | 8000 | 16000 | 8000 |
Link Aggregation Group (LAG) | 16 | 8 | 16 | 8 |
ACL | 1900 | 1200 | 1900 | 1200 |
Max Power Consumption | 448 W | 145 W | 432 W | 443 W |
Dimensions | 440 x 358 x 44 mm | 330 x 220 x 43.6 mm | 440 x 357.6 x 43.6 mm | 440 x 293 x 44 mm |
Weight | 5.4 kg | 2 kg | 4.75 kg | 4.5 kg |
Specifications
Interfaces
RJ45 Ports
(48) 1 Gbps
Number of PoE Ports
48 pcs
PoE Out Standards
802.3af (PoE), 802.3at (PoE+)
SFP Ports
(4) 10G SFP+
Management
Ethernet
Power
Power Supply
Internal PSU
Supported Input Voltage
100 - 240 V AC
Max Power Consumption
448 W
Physical Parameters
Dimensions
440 x 358 x 44 mm
Weight
5.4 kg
Operating Temperature
0 °C to 50 °C
Environment
Indoor
Form Factor
Desktop
Number of Rack Units
1U
Mounting Method
RackMount, Tabletop
Ruijie
PoE Switches
Layer 2
