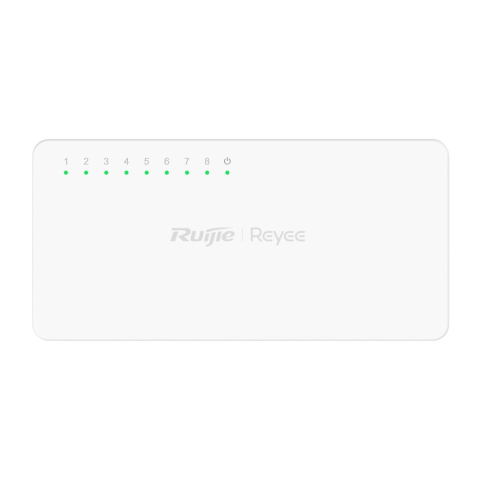

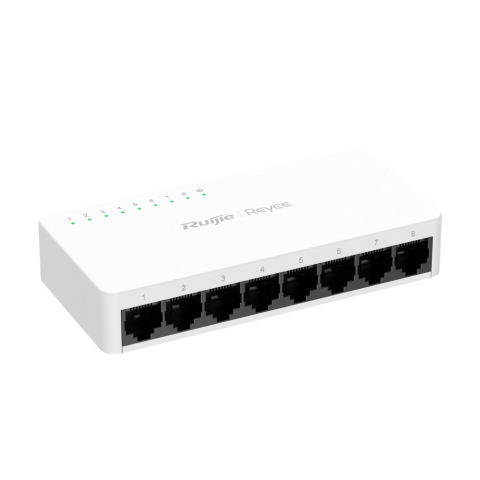

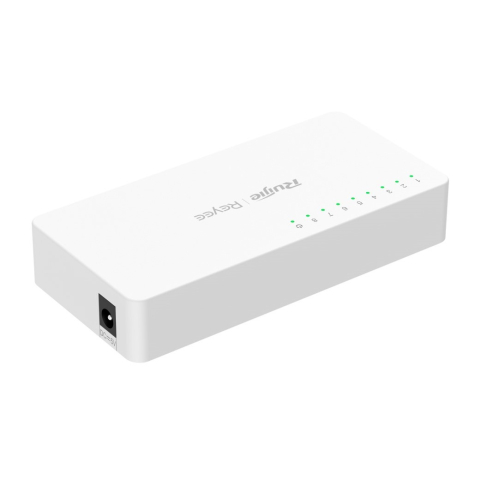

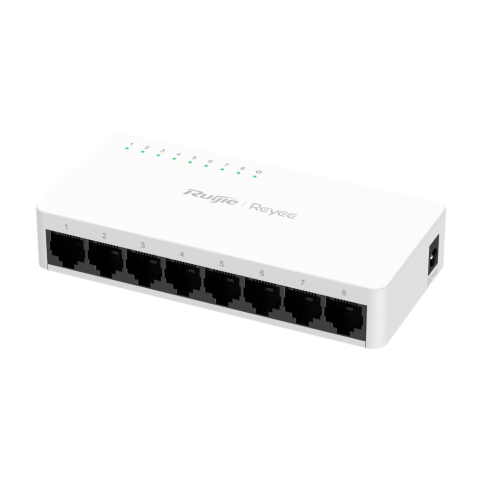

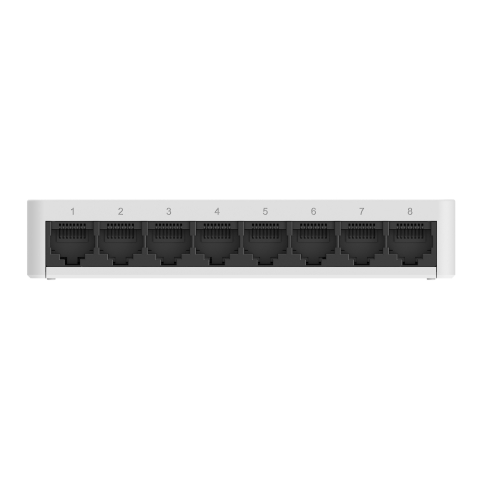

Reyee 8-Port Gigabit Unmanaged Desktop Switch
out of stock
?
25.87 €
25.87 €
Expected arrival?
?
arrival date unknown
Available alternatives
Detailed description
The perfect combination of quality & cost-effectiveness
RG-ES08G is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which meets the network needs of small enterprise customers. The switch features easy configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience. RG-ES08G model is equipped with eight Gigabit Ethernet Ports and provides 11.904Mpps packet forwarding rate.

Exquisite Design and outstanding quality

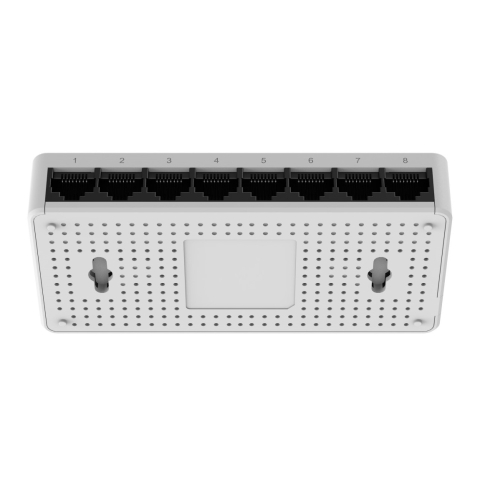

The matte-finish diamond pattern design with honeycomb heat dissipation holes at the bottom ensures effective heat dissipation. The embedded foot pads and hidden hanging hole design also provide ease of use for the users. The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission. A series of rigorous tests have been performed in the manufacturing process, including anti-drop test, anti-collision test, high-temperature resistance test and humidity resistance test, to provide worry-free products.

Plug and Play & Energy Saving
Self-adaptive feature is supported for the network ports. The configuration is not needed, so the device can operate instantly after plugging in. The energy saving feature enables the non-operating ports to automatically reduce power consumption, and the fanless design also enables noiseless operation. If the Ruijie Cloud management platform is available, you can add the switch to the topology manually or by scanning the QR code to conveniently output a complete topology.

Compare with similar products
Ethernet Ports | ||||||
8 x 1 Gbps | 5 x 1 Gbps | 5 x 100 Mbps | 8 x 100 Mbps | 16 x 1 Gbps | 24 x 1 Gbps | |
Switching capacity | ||||||
16 Gbps | 10 Gbps | 1 Gbps | 1.6 Gbps | 32 Gbps | 48 Gbps | |
Forwarding rate | ||||||
11.904 Mpps | 7.44 Mpps | 0.744 Mpps | 1.1904 Mpps | 23.81 Mpps | 35.71 Mpps | |
MAC address table | ||||||
4000 | 2000 | 1000 | 1000 | 8000 | 8000 | |
Max Power Consumption | ||||||
6.5 W | 3.5 W | 2.5 W | 3 W | 11 W | 16 W | |
Dimensions | ||||||
144 x 85 x 23 mm | 144 x 85 x 23 mm | 108 x 64 x 25 mm | 108 x 64 x 25 mm | 280 x 126 x 44 mm | 280 x 126 x 44 mm | |
Weight | ||||||
0.35 kg | 0.20 kg | 0.19 kg | 0.33 kg | 1.75 kg | 1.76 kg | |
Operating Temperature | ||||||
0 °C to 40 °C | 0 °C to 40 °C | 0 °C to 40 °C | 0 °C to 40 °C | 0 °C to 45 °C | 0 °C to 45 °C |
Ethernet Ports | 8 x 1 Gbps | 5 x 1 Gbps | 5 x 100 Mbps | 8 x 100 Mbps | 16 x 1 Gbps | 24 x 1 Gbps |
Switching capacity | 16 Gbps | 10 Gbps | 1 Gbps | 1.6 Gbps | 32 Gbps | 48 Gbps |
Forwarding rate | 11.904 Mpps | 7.44 Mpps | 0.744 Mpps | 1.1904 Mpps | 23.81 Mpps | 35.71 Mpps |
MAC address table | 4000 | 2000 | 1000 | 1000 | 8000 | 8000 |
Max Power Consumption | 6.5 W | 3.5 W | 2.5 W | 3 W | 11 W | 16 W |
Dimensions | 144 x 85 x 23 mm | 144 x 85 x 23 mm | 108 x 64 x 25 mm | 108 x 64 x 25 mm | 280 x 126 x 44 mm | 280 x 126 x 44 mm |
Weight | 0.35 kg | 0.20 kg | 0.19 kg | 0.33 kg | 1.75 kg | 1.76 kg |
Operating Temperature | 0 °C to 40 °C | 0 °C to 40 °C | 0 °C to 40 °C | 0 °C to 40 °C | 0 °C to 45 °C | 0 °C to 45 °C |
Technical Specs / Datasheet
Specifications
Interfaces
RJ45 Ports
(8) 1 Gbps
PoE Out Standards
w/o PoE
Management
Ethernet
Power
Power Method
AC/DC Adapter
Power Supply
External AC/DC Adapter
Max Power Consumption
6.5 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
5 V DC 0.6 A
Physical Parameters
Color
Black
Material
Plastic
Dimensions
144 x 85 x 23 mm
Weight
0.35 kg
Operating Temperature
0 °C to 40 °C
Environment
Indoor
Mounting Method
Tabletop
Package Contains
External Power Supply
Included
Ruijie
Switches
Unmanaged
