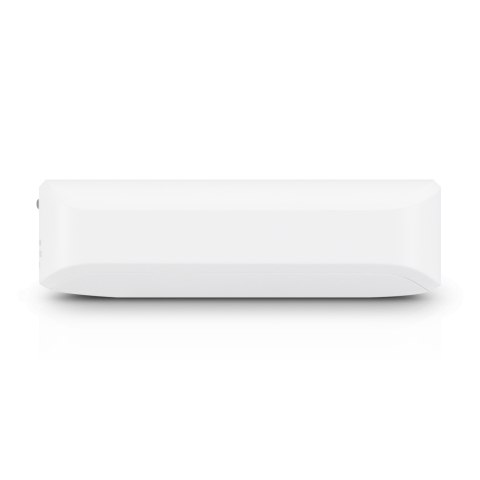

Ubiquiti UniFi Switch Flex Mini
Ubiquiti Elite Distributor
in stock
?
28.68 €
28.68 €
Ubiquiti Elite Distributor
Detailed description
USW Flex Mini
Build and expand your network with the UniFi® Switch, part of the Ubiquiti Inc® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices.

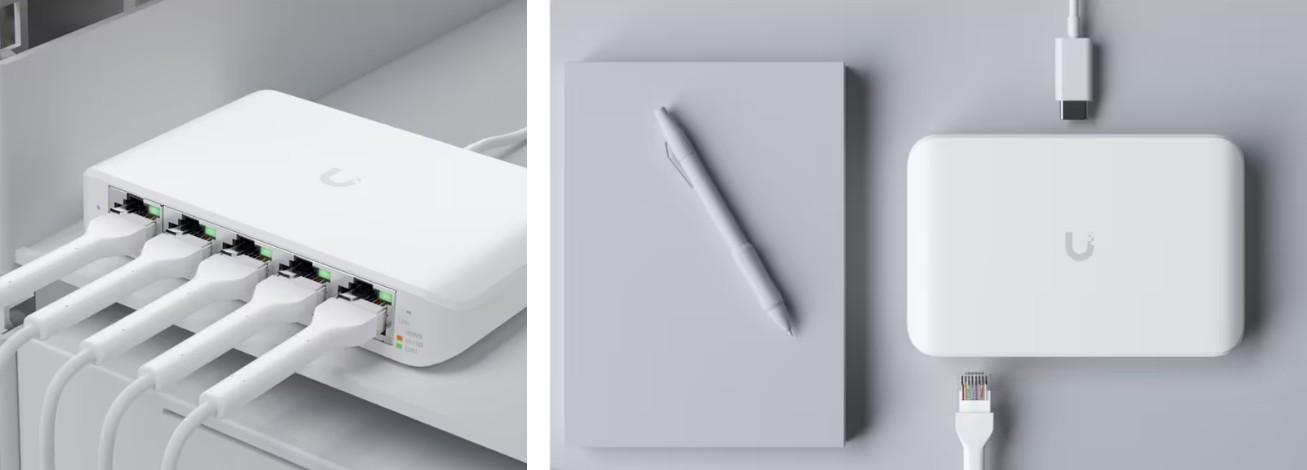

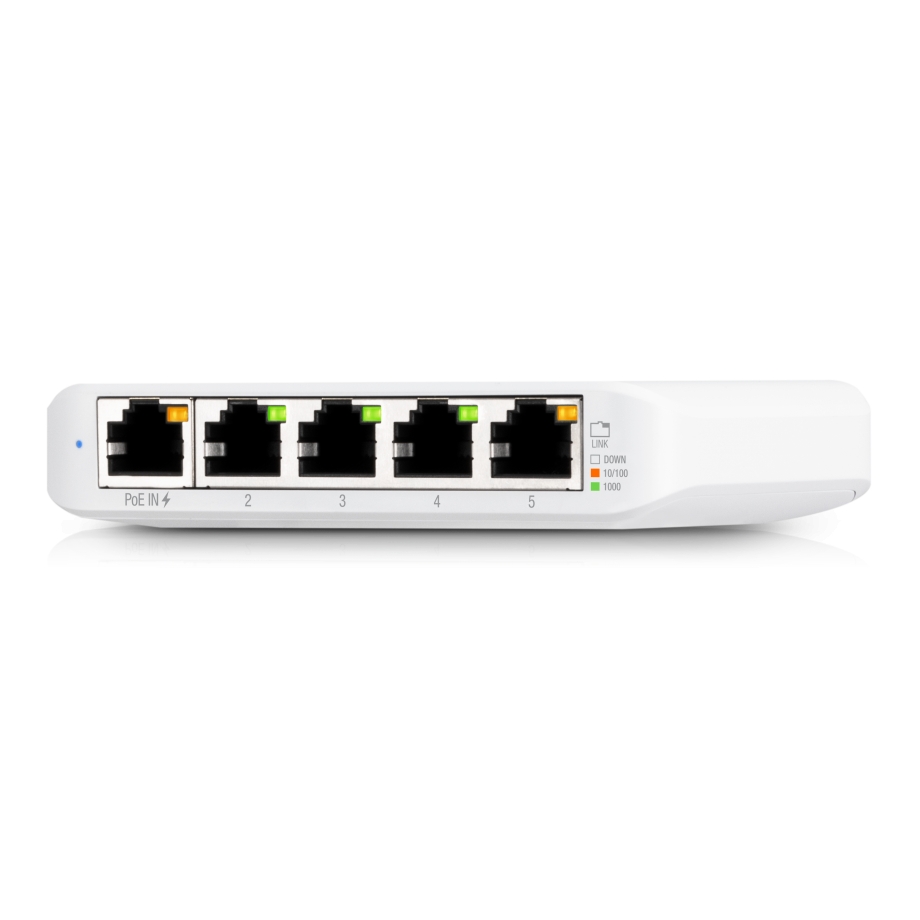

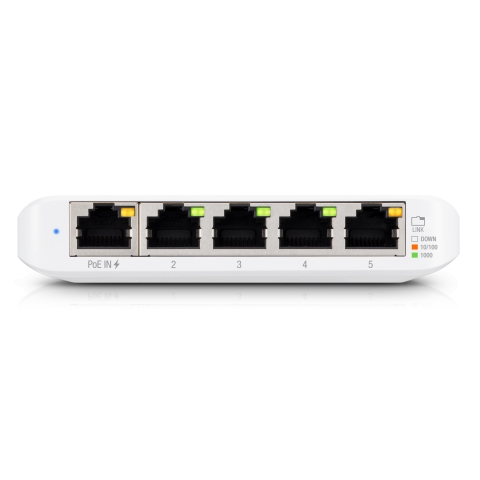

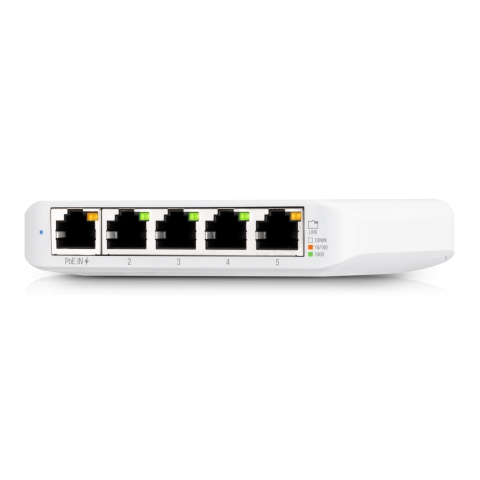

Compact Switch Flex Mini, part of the UniFi Switch series. This model is perfect when you need to connect multiple peripherals to a UniFi network over twisted pair cable and PoE power is not required. UniFi Switch Flex Mini does not support PoE power distribution. The set of functionality of the device can be called a phrase combination of rational minimalism - on board the model are 5 Gigabit Ethernet ports, with LED status indication (presence / absence of connection, as well as its speed).

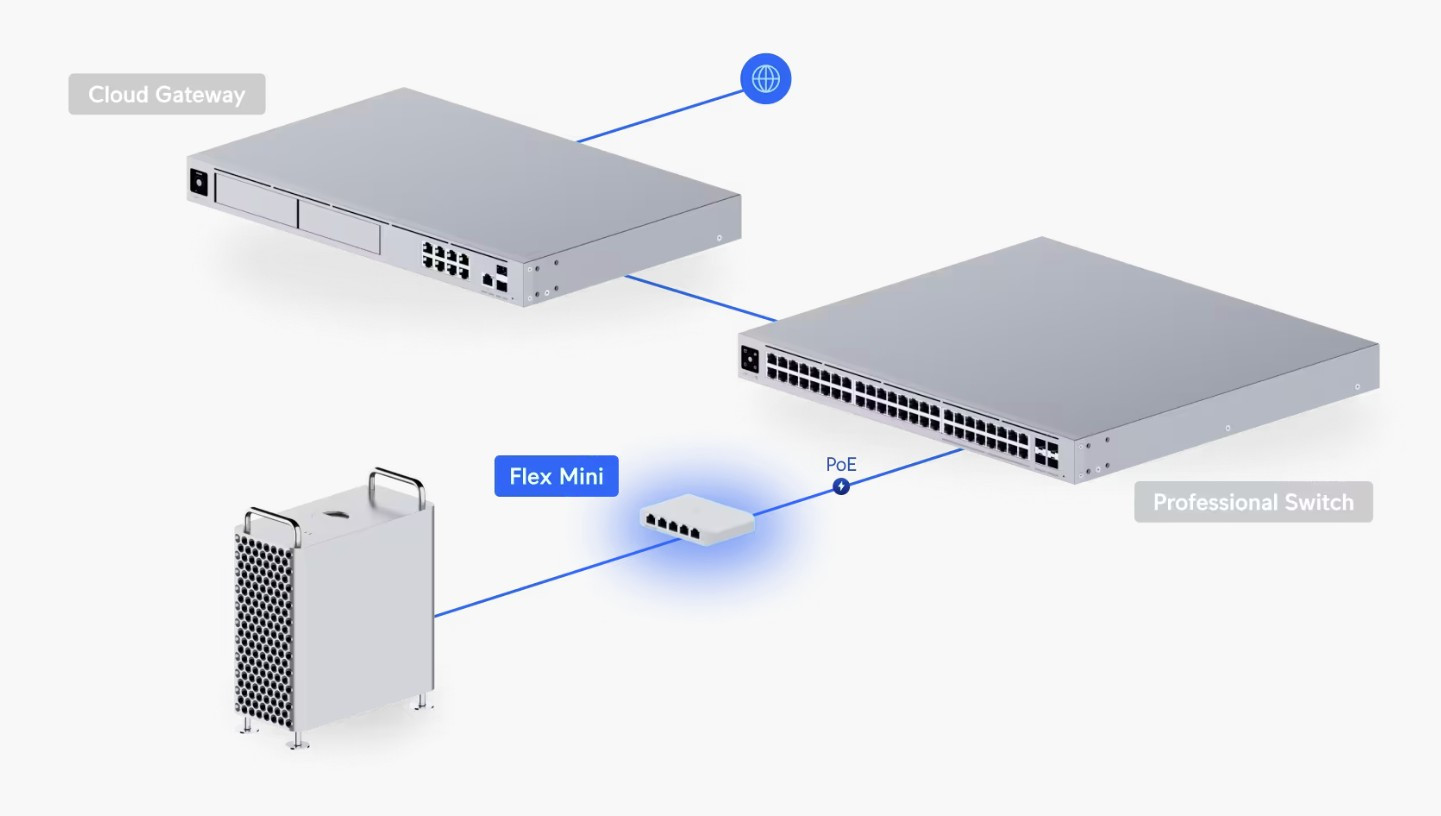

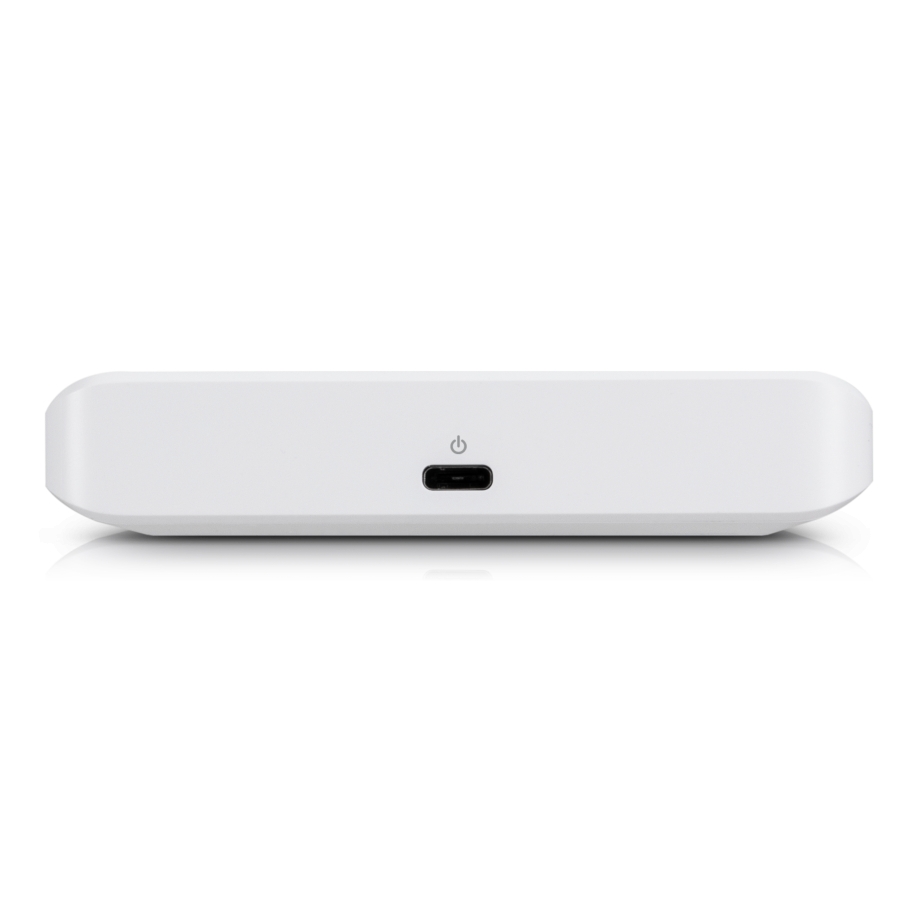

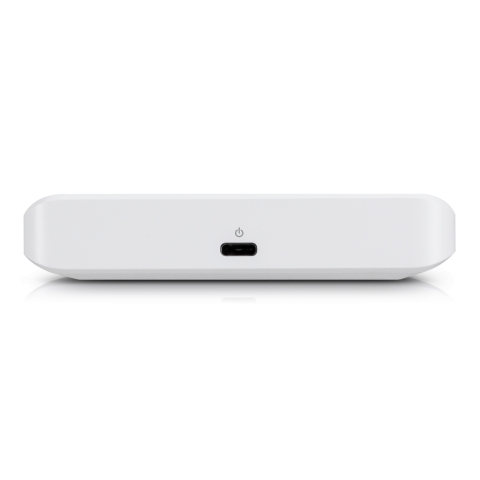

Power up the USW-Flex-Mini with USB Type-C power adapter (not included in 3- and 5-pack) or with 802.3af PoE Ethernet in port 1.
Compare with similar products
| Ethernet Ports | |||
| 5 x 1 Gbps | 5 x 1 Gbps | 1 x 1 Gbps, 4 x 10 Gbps | |
| PoE Out Ports | |||
| 4 x 802.3at (PoE+) | 1 x 802.3at (PoE) | ||
| Management | |||
| Ethernet | Ethernet | Ethernet | |
| Max Power Consumption | |||
| 2.5 W | 5 W | 25 W | |
| Operating Temperature | |||
| -5 °C to 45 °C | -40 °C to 55 °C | -5 °C to 45 °C | |
| Dimensions | |||
| 107.16 x 70.15 x 21.17 mm | 122.5 x 107.1 x 28.0 mm | 135 x 185 x 32 mm | |
| Weight | |||
| 0.150 kg | 0.230 kg | 1.2 kg | |
| Environment | |||
| Indoor | Indoor/Outdoor | Indoor | |
| Ethernet Ports | 5 x 1 Gbps | 5 x 1 Gbps | 1 x 1 Gbps, 4 x 10 Gbps |
| PoE Out Ports | 4 x 802.3at (PoE+) | 1 x 802.3at (PoE) | |
| Management | Ethernet | Ethernet | Ethernet |
| Max Power Consumption | 2.5 W | 5 W | 25 W |
| Operating Temperature | -5 °C to 45 °C | -40 °C to 55 °C | -5 °C to 45 °C |
| Dimensions | 107.16 x 70.15 x 21.17 mm | 122.5 x 107.1 x 28.0 mm | 135 x 185 x 32 mm |
| Weight | 0.150 kg | 0.230 kg | 1.2 kg |
| Environment | Indoor | Indoor/Outdoor | Indoor |
Compatible products
Specifications
Interfaces
RJ45 Ports
(5) 1 Gbps
PoE Out Standards
w/o PoE
Management
Ethernet
Power
Power Method
AC/DC Adapter, 802.3af PoE, 802.3at PoE+
Power Supply
External AC/DC Adapter
Supported Input Voltage
4.7 - 5.3 V DC
Max Power Consumption
2.5 W
Power Connector
USB Type-C
PSU / POE adapter
5 V DC 1 A
Physical Parameters
Color
White
Dimensions
107.16 x 70.15 x 21.17 mm
Weight
0.150 kg
Operating Temperature
-5 °C to 45 °C
Environment
Indoor
Form Factor
Desktop
Mounting Method
Tabletop
Package Contains
External Power Supply
Included
