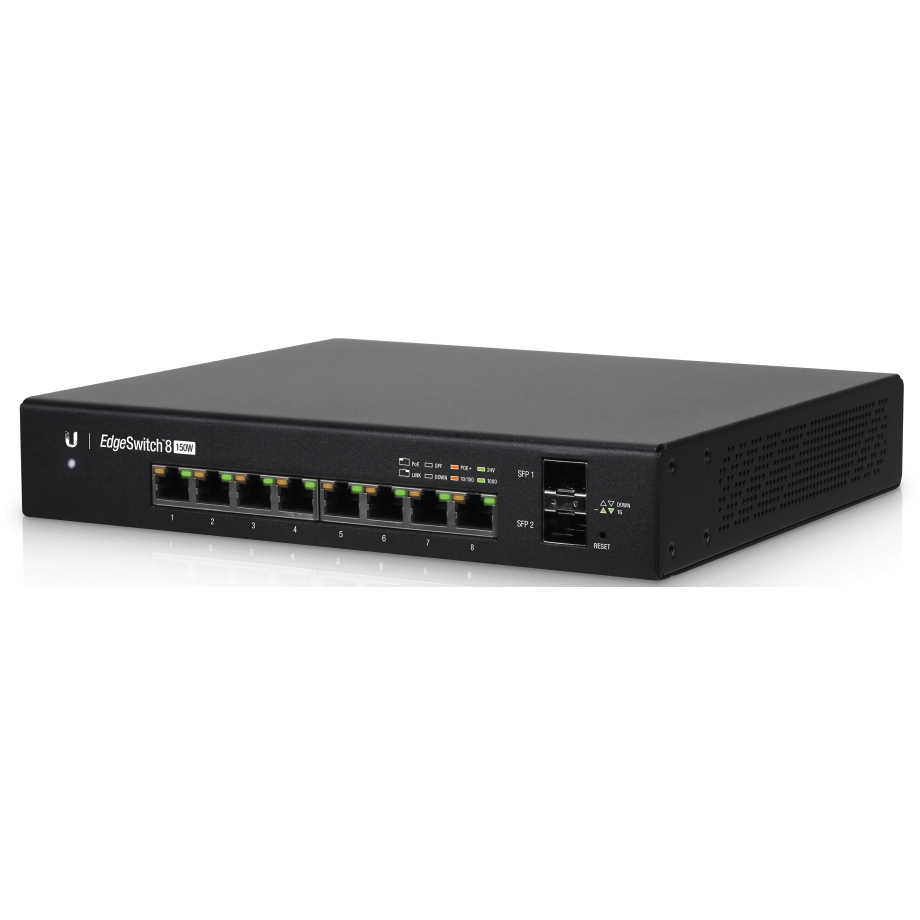

Ubiquiti EdgeSwitch 8 PoE
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description
Managed PoE+ Gigabit Switch with SFP
The EdgeSwitch 8-150W is equipped with high performance hardware that is sufficient to provide a packet processing speed of 14.88 Mpps. At the same time, the throughput reaches 10 Gbps.
The network interface of the model consists of 8 gigabit Ethernet ports, each of which can distribute PoE power according to 802.3at/af Passive PoE 24V standards. This approach allows you to eliminate the need for additional power adapters, which greatly simplifies the network layout and maintenance. In addition, the designers provided two slots for SFP modules to integrate the device into a fiber network.
Each of the physical interfaces has its own LED indication, which makes it possible to quickly assess its status and promptly react to a malfunction. More detailed information about the state of the equipment is available through the graphical interface, where you can find not only detailed logs, but also up-to-date operation statistics. This allows you to quickly identify the source of the problem and eliminate it.
Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.
Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.
Optical Fiber Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.
Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Compare with similar products
| Ethernet Ports | ||||
| 8 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | |
| PoE Out Ports | ||||
| 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |
| SFP Ports | ||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | |
| USB Ports | ||||
| Management | ||||
| Ethernet | Ethernet | Ethernet | Ethernet | |
| Max Power Consumption | ||||
| 150 W | 8 W | 250 W | 500 W | |
| Operating Temperature | ||||
| -25 °C to 45 °C | -10 °C to 50 °C | -5 °C to 40 °C | -5 °C to 40 °C | |
| Dimensions | ||||
| 204 x 43 x 235 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm | |
| Weight | ||||
| 1.8 kg | 0.5 kg | 4.7 kg | 6.1 kg | |
| Mounting Method | ||||
| Tabletop | Tabletop | Rack-mounted 19" | Rack-mounted 19" | |
| Form Factor | ||||
| Desktop | Desktop | RackMount | RackMount | |
| Ethernet Ports | 8 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps |
| PoE Out Ports | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) |
| SFP Ports | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ |
| USB Ports | ||||
| Management | Ethernet | Ethernet | Ethernet | Ethernet |
| Max Power Consumption | 150 W | 8 W | 250 W | 500 W |
| Operating Temperature | -25 °C to 45 °C | -10 °C to 50 °C | -5 °C to 40 °C | -5 °C to 40 °C |
| Dimensions | 204 x 43 x 235 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm |
| Weight | 1.8 kg | 0.5 kg | 4.7 kg | 6.1 kg |
| Mounting Method | Tabletop | Tabletop | Rack-mounted 19" | Rack-mounted 19" |
| Form Factor | Desktop | Desktop | RackMount | RackMount |
Technical Specs / Datasheet
