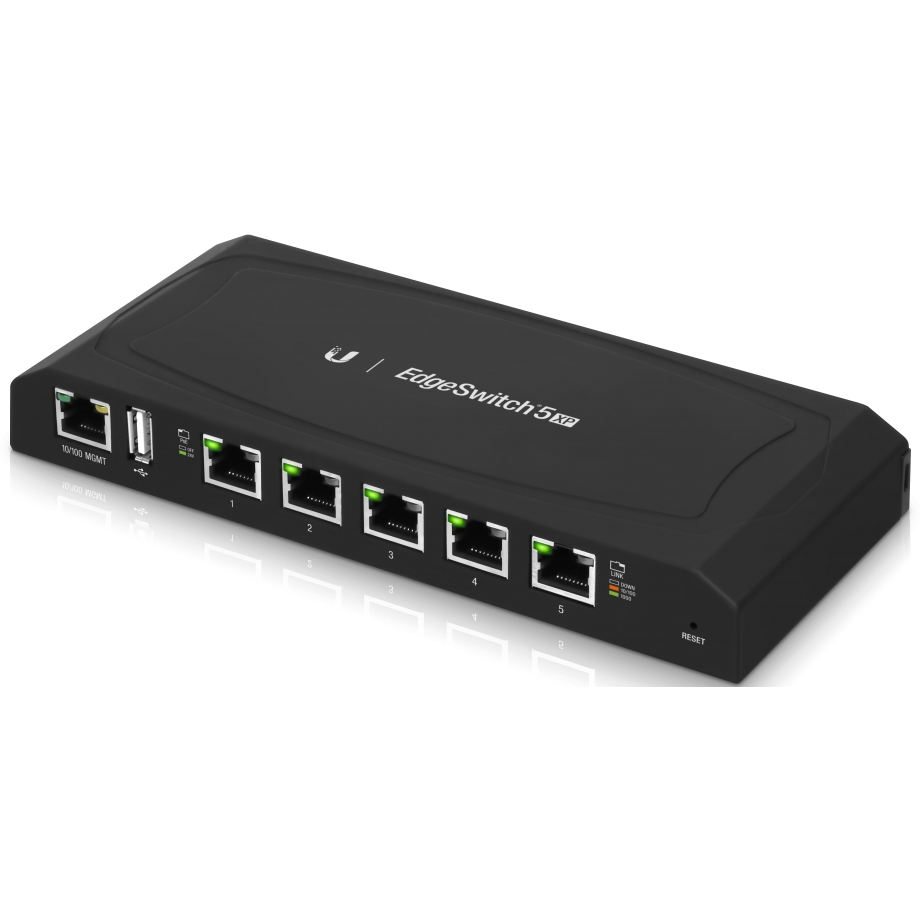

Ubiquiti EdgeSwitch 5XP
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description
Clean Industrial Design
The EdgeSwitch 5XP is designed to operate at the two lower logical access levels: utilization and distribution. Due to its hardware base, the device is able to handle a significant load and maintain segment switching with the rest of the LAN even under heavy traffic.
The computing part of EdgeSwitch 5XP includes a processor with a frequency of 400 mHz and RAM of 64 MB, which is enough for timely processing of all incoming packets. For storing system information, backups and other data, the developers have provided 8 MB of permanent memory, which allows you to store important information except logs.

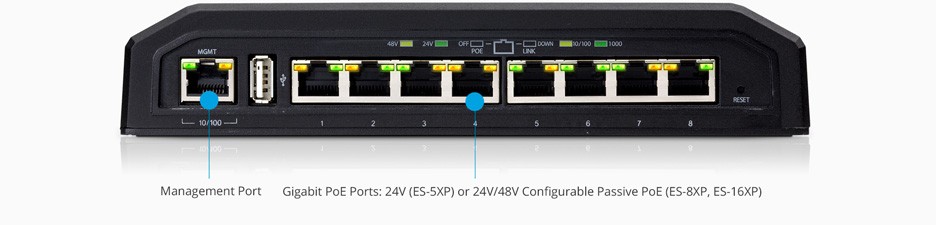

Network interface of 5 Ethernet ports with a bandwidth of up to 1000 Mbps. Each of their connectors is able to distribute power according to the scheme Passive PoE 24V, which allows you to avoid the use of additional blocks in the network structure, thereby simplifying its maintenance. It is worth noting the presence of a special Ethernet console port and USB-connector. Although the latter is present in the network interface, it is reserved for future functionality and is currently not active.
Convenient PoE Support
The EdgeSwitch XP supports 24V or 48V passive PoE to power multiple devices on your network.
Carrier-Class Reliability
The EdgeSwitch XP delivers uptime performance equal to leading carrier or enterprise technology solutions.
Industrial-Strength Construction
The EdgeSwitch XP is purpose-built with robust mechanicals for industrial application use.

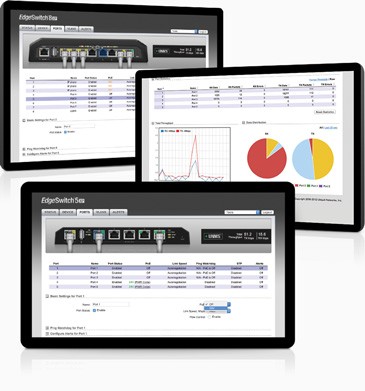

Intuitive UI
Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:
- Port monitoring
- System connection and management services
- Virtual Local Area Network (VLAN) configuration
- Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
- Jumbo frame support
- Ping Watchdog
- Configurable alerts
Compare with similar products
| Ethernet Ports | |||||
| 5 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps | |
| PoE Out Ports | |||||
| 5 x Passive PoE | 1 x Passive PoE | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |
| SFP Ports | |||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | ||
| USB Ports | |||||
| 1 x USB-A 2.0 | |||||
| Management | |||||
| Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | |
| Max Power Consumption | |||||
| 60 W | 8 W | 250 W | 500 W | 150 W | |
| Operating Temperature | |||||
| -25 °C to 55 °C | -10 °C to 50 °C | -5 °C to 40 °C | -5 °C to 40 °C | -25 °C to 45 °C | |
| Dimensions | |||||
| 197 x 87.5 x 27.3 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm | 204 x 43 x 235 mm | |
| Weight | |||||
| 0.25 kg | 0.5 kg | 4.7 kg | 6.1 kg | 1.8 kg | |
| Mounting Method | |||||
| Tabletop | Tabletop | Rack-mounted 19" | Rack-mounted 19" | Tabletop | |
| Form Factor | |||||
| Desktop | Desktop | RackMount | RackMount | Desktop | |
| Ethernet Ports | 5 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps |
| PoE Out Ports | 5 x Passive PoE | 1 x Passive PoE | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) |
| SFP Ports | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | |
| USB Ports | 1 x USB-A 2.0 | ||||
| Management | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Max Power Consumption | 60 W | 8 W | 250 W | 500 W | 150 W |
| Operating Temperature | -25 °C to 55 °C | -10 °C to 50 °C | -5 °C to 40 °C | -5 °C to 40 °C | -25 °C to 45 °C |
| Dimensions | 197 x 87.5 x 27.3 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm | 204 x 43 x 235 mm |
| Weight | 0.25 kg | 0.5 kg | 4.7 kg | 6.1 kg | 1.8 kg |
| Mounting Method | Tabletop | Tabletop | Rack-mounted 19" | Rack-mounted 19" | Tabletop |
| Form Factor | Desktop | Desktop | RackMount | RackMount | Desktop |
Specifications
Interfaces
RJ45 Ports
(5) 1 Gbps
Number of PoE Ports
5 pcs
PoE Out Standards
Passive PoE
USB Ports
(1) USB-A 2.0
Communication Interface
RJ45
Management
Ethernet
System Specification
Chipset
MIPS 24K, 400 MHz
RAM
64 MB
Storage Memory
8 MB
Power
Power Method
AC/DC Adapter
Power Supply
External AC/DC Adapter
Supported Input Voltage
58 - 62 V DC
Max Power Consumption
60 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
24 V DC 2.5 A
Physical Parameters
Color
Black
Dimensions
197 x 87.5 x 27.3 mm
Weight
0.25 kg
Operating Temperature
-25 °C to 55 °C
Environment
Indoor
Form Factor
Desktop
Mounting Method
Tabletop
Package Contains
External Power Supply
Included
