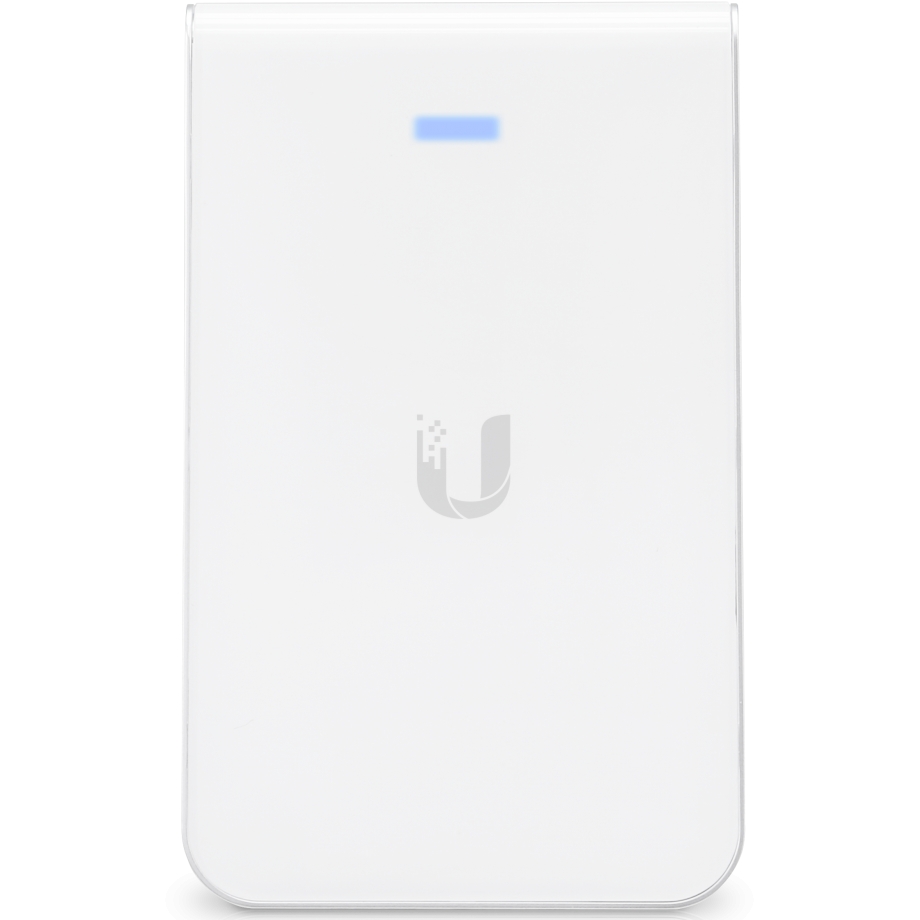

UniFi AC In-Wall

This item has been discontinued

Manufacturer part number

UAP-AC-IW

Warranty

?
12 months

EAN

0810354025549

We recommend to use the product presented below

Detailed description

Compact Dual-Band Access

Discover the UniFi AC In-Wall, a dual-band WiFi access point that epitomizes both simplicity and efficiency in a compact design. This device is enhanced with a built-in radio module, which assures coverage of up to 25 meters, perfectly suiting medium-sized environments like conference rooms and waiting areas. Equipped with a MIMO 2x2 antenna complex, it achieves remarkable bandwidth, offering up to 300 Mbps at 2.4 GHz and 867 Mbps at 5 GHz, culminating in a total transmission speed exceeding 1 Gbps. This capability makes the UniFi AC In-Wall an essential tool for spaces requiring robust internet access for up to 250 simultaneous connections.
The built-in radio module serves as the core of the device, managing the sophisticated transmission and reception of radio signals which are crucial for maintaining high performance across both frequency bands. This ensures stable connectivity and impressive speeds even in settings with multiple users or physical barriers that might otherwise impede signal strength. The advantage of MIMO technology with its 2x2 configuration allows for simultaneous handling of two data streams, enhancing throughput and reliability. This is particularly beneficial in environments where the network must support a variety of demanding applications simultaneously. Additionally, the UniFi AC In-Wall's dual-band capabilities allow it to provide flexible network management. The 2.4 GHz band offers broader coverage and better penetration through solid structures, making it ideal for widespread use throughout larger areas, while the 5 GHz band supports higher-bandwidth activities such as streaming high-definition video and engaging in high-speed data transfers, benefiting from reduced interference and less congestion.
/images/catalogue/description/412/acinwall22-6549e8330ecd2-1200x1224.jpg

Enhanced Bandwidth Performance

The UniFi AC In-Wall is a robust wireless access point adhering to the advanced 802.11 a/b/g/n/r/k/v/ac standards, designed to provide optimal connectivity across a range of applications. It features dual-band capabilities with 2x2 MIMO technology on both the 2.4GHz and 5GHz bands, enhancing signal strength and reliability. On the 2.4GHz band, it delivers a radio rate of 300 Mbps, while on the 5GHz band it impressively reaches up to 867 Mbps. This setup not only increases the data throughput but also minimizes signal obstruction and interference, making it ideal for environments where consistent and reliable wireless access is critical. The device is equipped with antennas that cover frequency ranges of 2.4 GHz (1 dBi) and 5 GHz (2 dBi). These modest gains are indicative of an antenna design that prioritizes broader coverage rather than directional focus, which is suitable for environments such as small to medium-sized enterprises or residential areas where extensive coverage is more beneficial than concentrated beams.
Furthermore, the UniFi AC In-Wall boasts three 1 Gbps Ethernet ports, ensuring high-speed wired connections essential for efficient backhaul data transfers and connecting to high-speed internet. One of these ports offers passive Power over Ethernet (PoE) output under the 802.3at standard, capable of delivering up to 25.5 Watts. This feature allows the device to power other PoE-compatible devices like external IP cameras or secondary access points directly through the Ethernet cable, simplifying installations and reducing the need for additional power sources. This access point also operates effectively in a wide range of temperatures, from -10 °C to 50 °C, ensuring reliability under various environmental conditions. With a maximum power consumption of 7 W, it is an energy-efficient solution for continuous operation without compromising performance.
/images/catalogue/description/412/2-5fa474edcf361.jpeg

UniFi Network Application Integration

Integrated with the UniFi Network Application, this access point forms part of a robust enterprise wireless management system, ideal for environments requiring high-density client deployments. Through the UniFi Network Application, network administrators can efficiently manage multiple networks from a unified interface, streamlining the configuration and monitoring of network devices across various locations. This centralized platform offers real-time network performance insights, enabling administrators to apply configuration changes to multiple networks simultaneously, thereby enhancing operational efficiency.
The application also excels in managing network users and guests, providing tools to create and manage user groups with specific access rights and custom guest portals tailored for different needs. These features ensure appropriate access levels, significantly boosting network security. Additionally, the ability to remotely upgrade device firmware enhances device security and performance across the network by addressing vulnerabilities and updating features without manual intervention. Furthermore, the UniFi Network Application allows for the customization of guest hotspot design, architecture, and privacy settings. Administrators can personalize the login experience, set bandwidth limits, and integrate brand elements, creating a cohesive and controlled guest access environment. Advanced options such as voucher systems are also available to regulate and potentially monetize access. Enhanced privacy controls within the application help in managing data retention and user activity logs, ensuring compliance with privacy regulations. These features, along with the capability to segment network traffic and encrypt user data, bolster both security and privacy for users and guests alike.
Adding to its versatility, the mobile app component of the UniFi Network Application facilitates quick device setup and on-the-go management, providing administrators with the flexibility to manage the network remotely. This integration is particularly beneficial in dynamic settings like hotels, educational institutions, offices, and retail spaces, where managing diverse user needs and maintaining stringent security protocols are paramount.

Compare with similar products


Wireless Standard
802.11 a/b/g/n/r/k/v/ac
802.11a/b/g/n/ac
802.11 a/b/g/n/r/k/v/ac
802.11 a/b/g/n/r/k/v/ac
802.11 a/b/g/n/r/k/v/ac
802.11 a/b/g/n/r/k/v/ac
MIMO
2.4GHz 2x2, 5GHz 2x2
2.4GHz 3x3, 5GHz 3x3
2.4GHz 2x2, 5GHz 2x2
2.4GHz 3x3, 5GHz 2x2
2.4GHz 2x2, 5GHz 2x2
2.4GHz 3x3, 5GHz 3x3
2.4GHz Radio Rate
300 Mbps
450 Mbps
300 Mbps
450 Mbps
300 Mbps
450 Mbps
5GHz Radio Rate
867 Mbps
1.3 Gbps
867 Mbps
867 Mbps
867 Mbps
1.3 Gbps
Wireless Antenna Frequency Range & Gain
2.4 - 2.4 (GHz) 1 (dBi), 5.0 – 5.0 (GHz) 2 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 – 5.0 (GHz) 3 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 – 5.0 (GHz) 3 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 – 5.0 (GHz) 3 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 - 5.0 (GHz) 4 (dBi)
2.4 - 2.4 (GHz) 8 (dBi), 5.0 - 5.0 (GHz) 8 (dBi)
Antenna range
25 m²
140 m²
115 m²
185 m²
140 m²
185 m²
Ethernet Ports
3 x 1 Gbps
2 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
2 x 1 Gbps
PoE Out Ports
1 x Passive PoE
Management
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet, Bluetooth
Ethernet
Max Power Consumption
7 W
9 W
6.5 W
6.5 W
8.5W
9W
Operating Temperature
-10 °C to 50 °C
-10 °C to 70 °C
-10 °C to 70 °C
-10 °C to 70 °C
-30 °C to 70 °C
-40 °C to 70 °C
Dimensions
139.7 x 86.7 x 25.75 mm
Ø196.7 x 35 mm
Ø160 x 31.45 mm
Ø175.7 x 43.2 mm
353 x 46 x 34.4 mm
343.2 x 181.2 x 60.2 mm
Weight
0.200 kg
0.450 kg
0.185 kg
0.315 kg
0.152 kg
0.633 kg
Environment
Indoor
Indoor, Outdoor
Indoor
Indoor
Indoor, Outdoor
Outdoor

Wireless Standard 802.11 a/b/g/n/r/k/v/ac
802.11a/b/g/n/ac
802.11 a/b/g/n/r/k/v/ac
802.11 a/b/g/n/r/k/v/ac
802.11 a/b/g/n/r/k/v/ac
802.11 a/b/g/n/r/k/v/ac
MIMO 2.4GHz 2x2, 5GHz 2x2
2.4GHz 3x3, 5GHz 3x3
2.4GHz 2x2, 5GHz 2x2
2.4GHz 3x3, 5GHz 2x2
2.4GHz 2x2, 5GHz 2x2
2.4GHz 3x3, 5GHz 3x3
2.4GHz Radio Rate300 Mbps
450 Mbps
300 Mbps
450 Mbps
300 Mbps
450 Mbps
5GHz Radio Rate 867 Mbps
1.3 Gbps
867 Mbps
867 Mbps
867 Mbps
1.3 Gbps
Wireless Antenna Frequency Range & Gain2.4 - 2.4 (GHz) 1 (dBi), 5.0 – 5.0 (GHz) 2 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 – 5.0 (GHz) 3 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 – 5.0 (GHz) 3 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 – 5.0 (GHz) 3 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5.0 - 5.0 (GHz) 4 (dBi)
2.4 - 2.4 (GHz) 8 (dBi), 5.0 - 5.0 (GHz) 8 (dBi)
Antenna range 25 m²
140 m²
115 m²
185 m²
140 m²
185 m²
Ethernet Ports3 x 1 Gbps
2 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
2 x 1 Gbps
PoE Out Ports 1 x Passive PoE
ManagementEthernet
Ethernet
Ethernet
Ethernet
Ethernet, Bluetooth
Ethernet
Max Power Consumption 7 W
9 W
6.5 W
6.5 W
8.5W
9W
Operating Temperature -10 °C to 50 °C
-10 °C to 70 °C
-10 °C to 70 °C
-10 °C to 70 °C
-30 °C to 70 °C
-40 °C to 70 °C
Dimensions 139.7 x 86.7 x 25.75 mm
Ø196.7 x 35 mm
Ø160 x 31.45 mm
Ø175.7 x 43.2 mm
353 x 46 x 34.4 mm
343.2 x 181.2 x 60.2 mm
Weight0.200 kg
0.450 kg
0.185 kg
0.315 kg
0.152 kg
0.633 kg
EnvironmentIndoor
Indoor, Outdoor
Indoor
Indoor
Indoor, Outdoor
Outdoor
