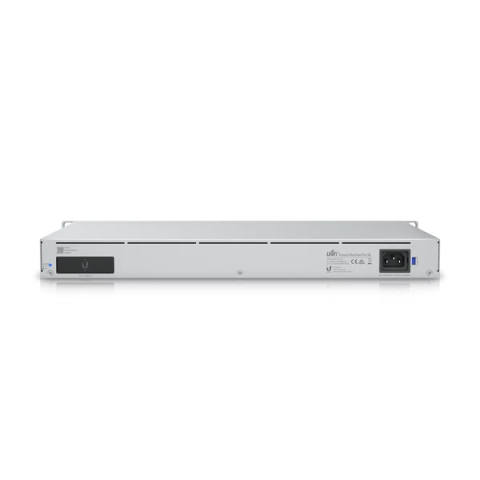

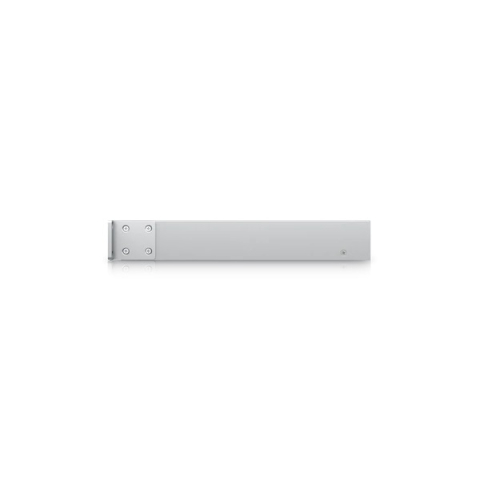

Ubiquiti UniFi Dream Machine Special Edition

Ubiquiti Elite Distributor

in stock

448.53 €

in stock

448.53 €

plug

Brand

Ubiquiti

Manufacturer part number

UDM-SE

Warranty

12 months

EAN

0810010077769

Detailed description

All-in-one router and security gateway with an integrated PoE switch and network video recorder.

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).

/images/catalogue/description/1306/dreammachinespecialedition2-654e12e7c3f43-1400x1280.jpg

Full UniFi OS Integration

/images/catalogue/description/1306/udmse_5-627ba3c52cd61-408x296.jpg

UniFi Dream Machine Special Edition runs current and future UniFi OS applications from a single, intuitive interface, providing remote access to your network from anywhere with the UniFi OS Portal. Tailor user, role, and group-level network use with a robust slate of management features.

Seamless Network Integration

For traffic processing in UniFi Dream Machine Special Edition is responsible for a quad-core processor, built on ARM Cortex-A57 with a frequency of 1.7 GHz. The amount of RAM is 4 gigabytes of DDR 4, which allows the model to effectively cope with the task of traffic routing and network management. In addition, UniFi Dream Machine Special Edition has 16 GB of on-board eMMC memory and 128 GB of on-board SSD storage for full operation of UniFi OS applications.

UniFi Dream Machine Special Edition is based on the existing UDM Pro with a few new additions. Most notable is the upgrade to 2.5 Gigabit Ethernet, which provides improved connectivity. While the device still has eight Gigabit Ethernet ports, the SE version features PoE support to deliver up to 130W of power to connected cameras or access points. As before, the main feature of UniFi Dream Special Edition is maximum versatility. The model combines everything you need to route traffic, as well as for its switching and management of any product line UniFi, including video surveillance networks. The server running on the UniFi OS has on board pre-installed software products UniFi Controller / UniFi Protect.

/images/catalogue/description/1306/dreammachinespecialedition3-654e12f498acd-2000x1414.jpg

Compare with similar products

	Dream Machine Special Edition	Dream Router	Dream Machine	Dream Machine Professional
Wireless Standard

	802.11a/b/g/n/ac/ax, Wi-Fi 6	802.11a/b/g/n/ac, 802.11ac Wave2		802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO

	2.4GHz 4x4, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4		2.4GHz 2x2, 5GHz 4x4,
2.4GHz Radio Rate

	600 Mbps	300 Mbps		300 Mbps
5GHz Radio Rate

	2.4 Gbps	1.7 Gbps		2.4 Gbps
Wireless Antenna Frequency Range & Gain

	2.4 - 2.4 (GHz) 3.4 (dBi), 5 - 5 (GHz) 4.3 (dBi)	2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4.5 (dBi)		2.4 - 2.4 (GHz) 5.9 (dBi), 5 - 5 (GHz) 6 (dBi)
Ethernet Ports

8 x 1 Gbps, 1 x 2.5 Gbps	5 x 1 Gbps	5 x 1 Gbps	9 x 1 Gbps	17 x 1 Gbps, 1 x 2.5 Gbps
SFP Ports

2 x 10G SFP+			2 x 10G SFP+	2 x 10G SFP+
PoE Out Ports

8 x 802.3af (PoE), 802.3at (PoE+)	2 x 802.3af (PoE)			12 x 802.3af (PoE), 802.3at (PoE+), 802.3bt
Chipset

Quad-Core ARM® Cortex ® - A57 at 1.7 GHz	Dual-Core® Cortex® A53 at 1.35 GHz	Arm Cortex-A57 Quad-Core at 1.7 GHz	Quad ARM Cortex-A57 Core at 1.7 GHz	Quad-Core ARM® Cortex ® -A57 at 1.7 GHz
RAM

4 GB	2 GB	2 GB	4 GB	4 GB
Storage Memory

16 GB		16 GB	16 GB	16 GB
Max Power Consumption

50 W	19.37 W	26 W	33 W	532 W
Mounting Method

RackMount	Tabletop	Tabletop	RackMount	Wall Mount

	Dream Machine Special Edition	Dream Router	Dream Machine	Dream Machine Professional	Dream Wall
Wireless Standard		802.11a/b/g/n/ac/ax, Wi-Fi 6	802.11a/b/g/n/ac, 802.11ac Wave2		802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO		2.4GHz 4x4, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4		2.4GHz 2x2, 5GHz 4x4,
2.4GHz Radio Rate		600 Mbps	300 Mbps		300 Mbps
5GHz Radio Rate		2.4 Gbps	1.7 Gbps		2.4 Gbps
Wireless Antenna Frequency Range & Gain		2.4 - 2.4 (GHz) 3.4 (dBi), 5 - 5 (GHz) 4.3 (dBi)	2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4.5 (dBi)		2.4 - 2.4 (GHz) 5.9 (dBi), 5 - 5 (GHz) 6 (dBi)
Ethernet Ports	8 x 1 Gbps, 1 x 2.5 Gbps	5 x 1 Gbps	5 x 1 Gbps	9 x 1 Gbps	17 x 1 Gbps, 1 x 2.5 Gbps
SFP Ports	2 x 10G SFP+			2 x 10G SFP+	2 x 10G SFP+
PoE Out Ports	8 x 802.3af (PoE), 802.3at (PoE+)	2 x 802.3af (PoE)			12 x 802.3af (PoE), 802.3at (PoE+), 802.3bt
Chipset	Quad-Core ARM® Cortex ® - A57 at 1.7 GHz	Dual-Core® Cortex® A53 at 1.35 GHz	Arm Cortex-A57 Quad-Core at 1.7 GHz	Quad ARM Cortex-A57 Core at 1.7 GHz	Quad-Core ARM® Cortex ® -A57 at 1.7 GHz
RAM	4 GB	2 GB	2 GB	4 GB	4 GB
Storage Memory	16 GB		16 GB	16 GB	16 GB
Max Power Consumption	50 W	19.37 W	26 W	33 W	532 W
Mounting Method	RackMount	Tabletop	Tabletop	RackMount	Wall Mount
