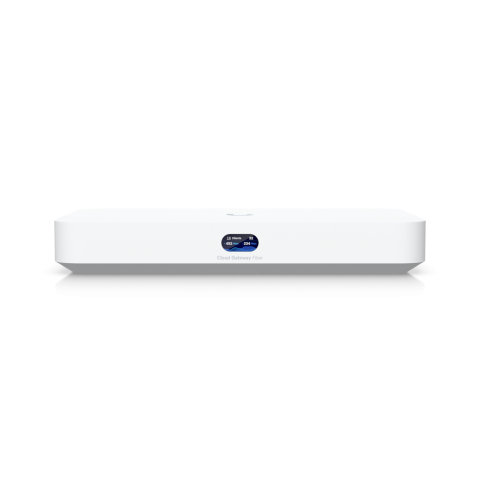

Ubiquiti UniFi Cloud Gateway Fiber

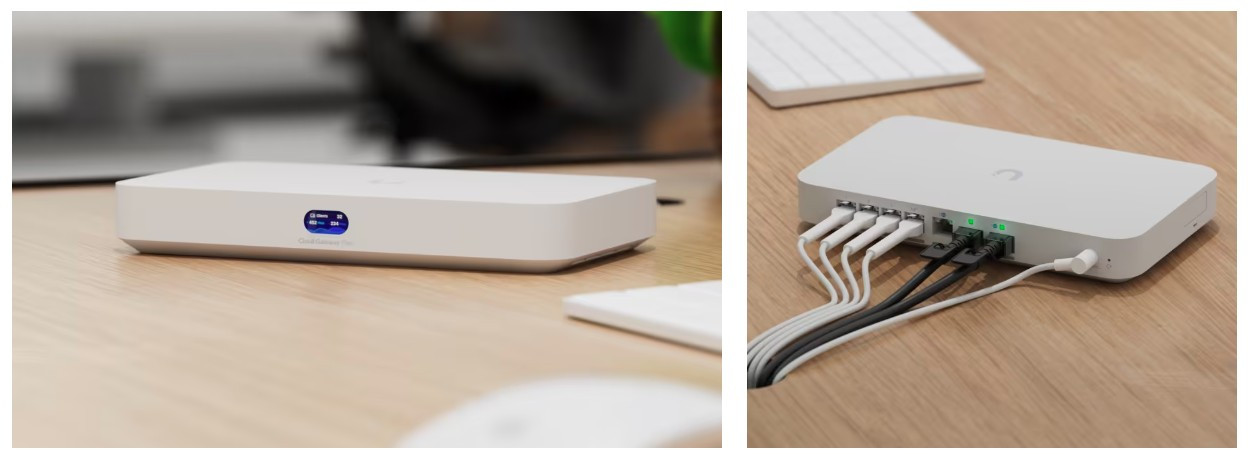

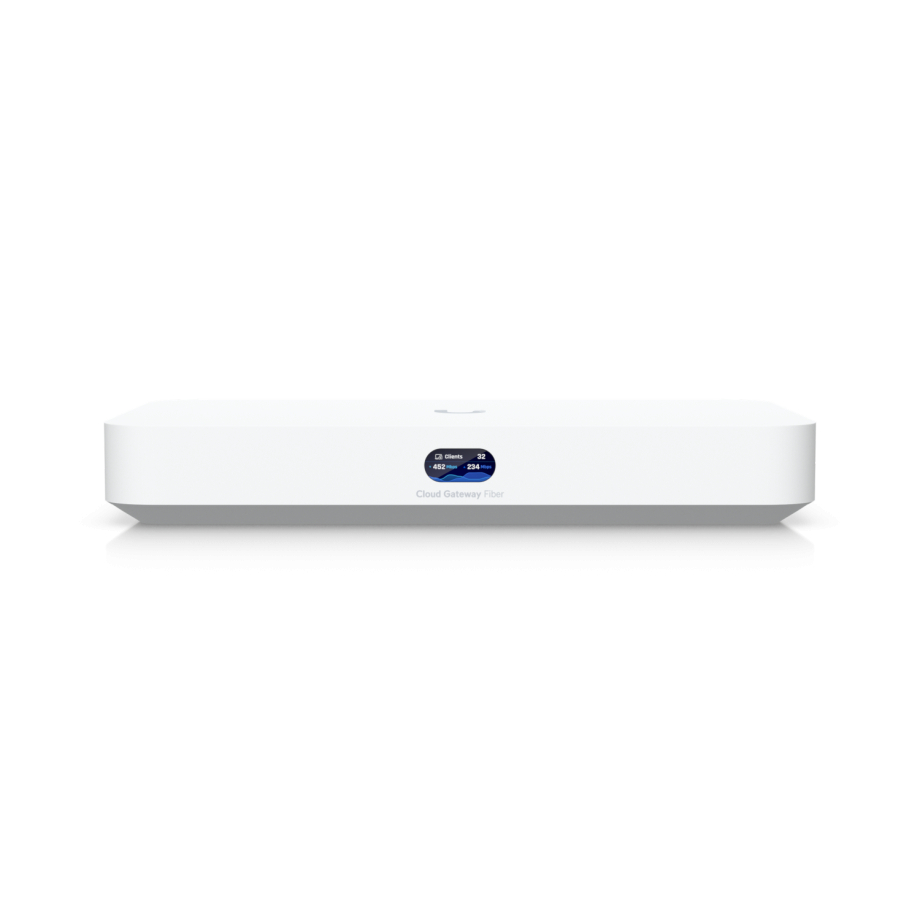

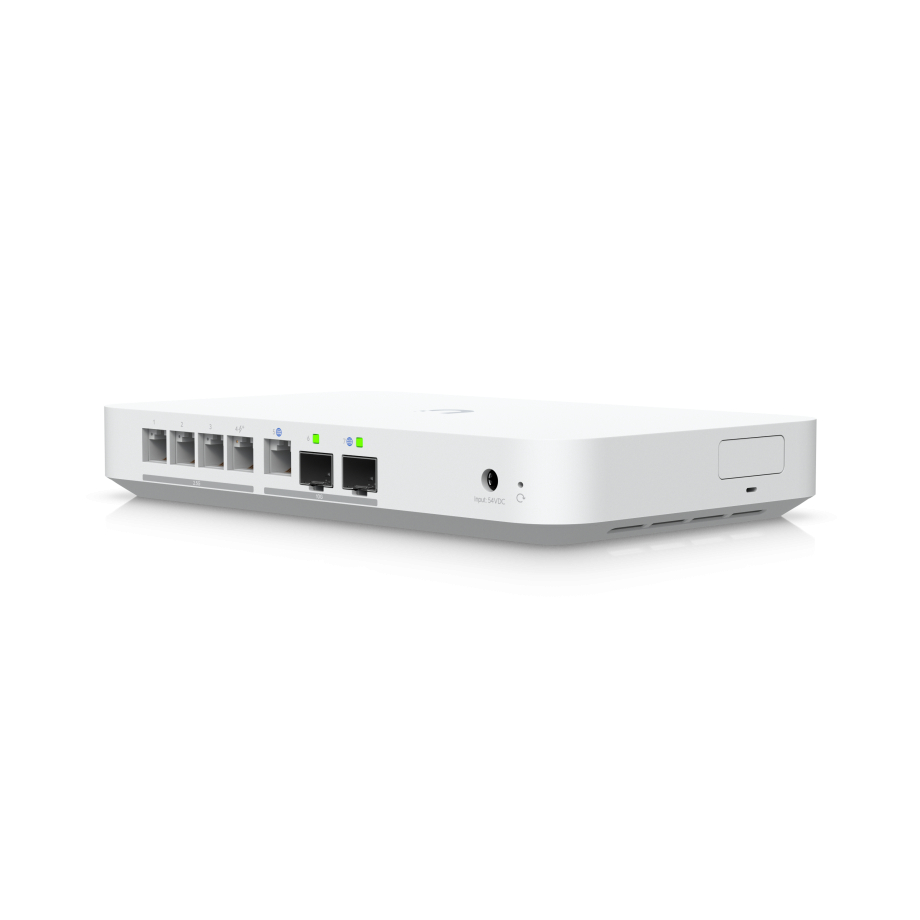

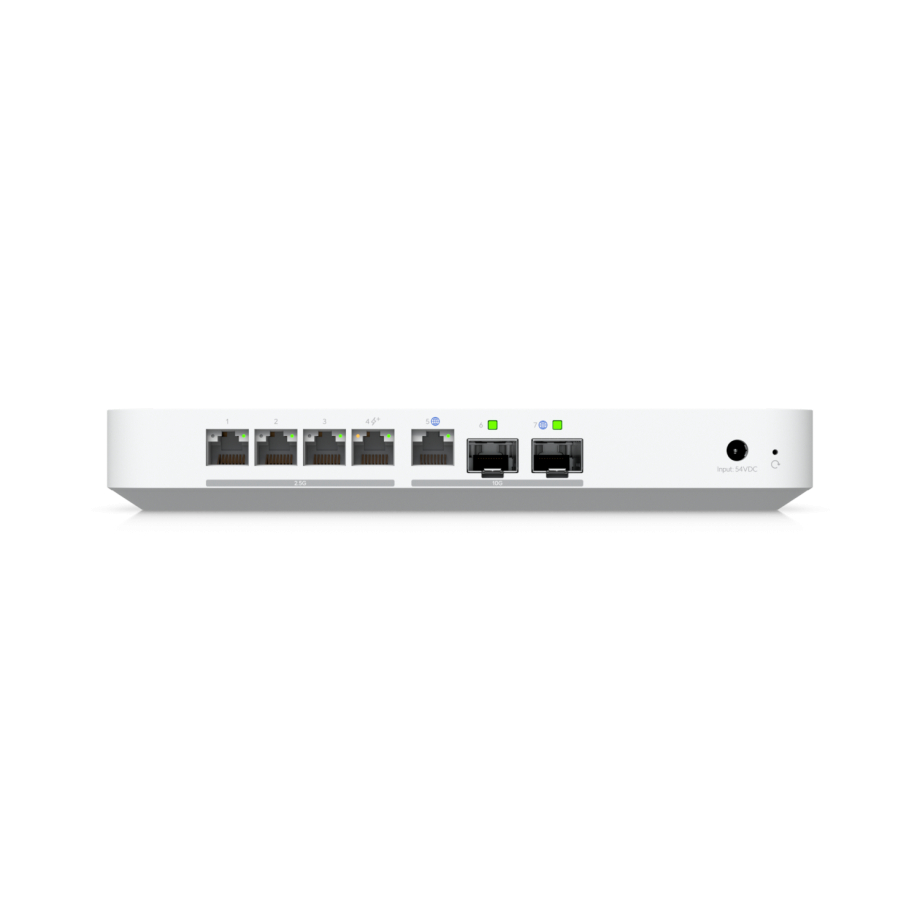

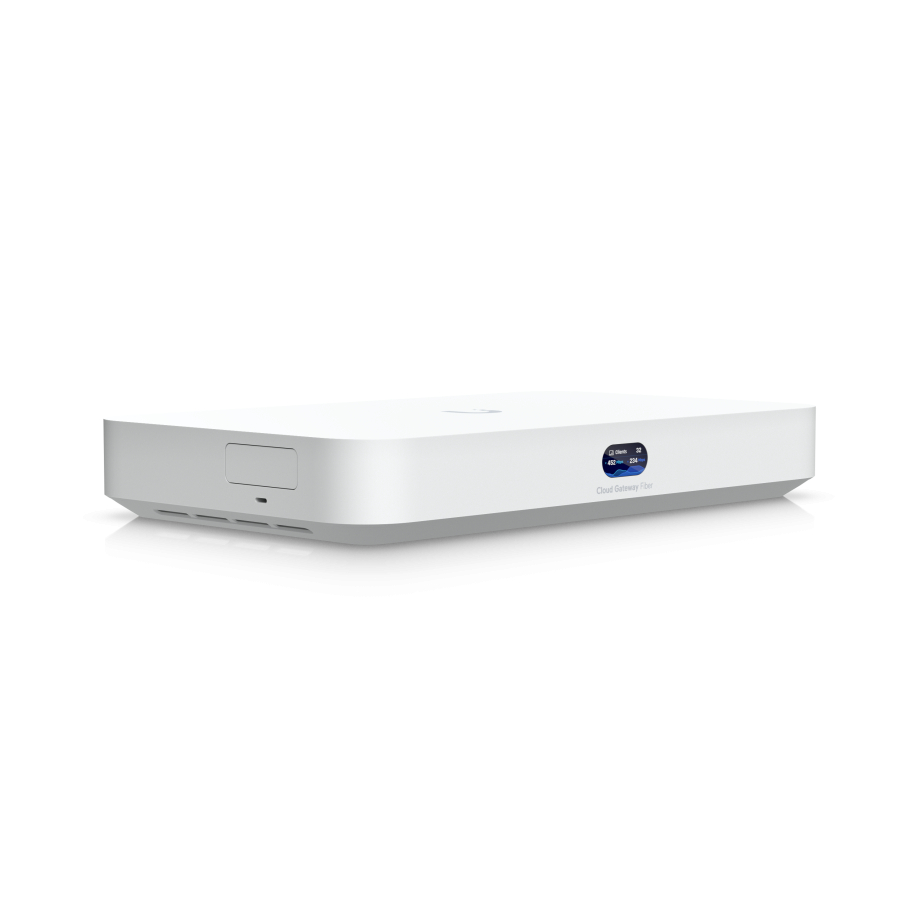

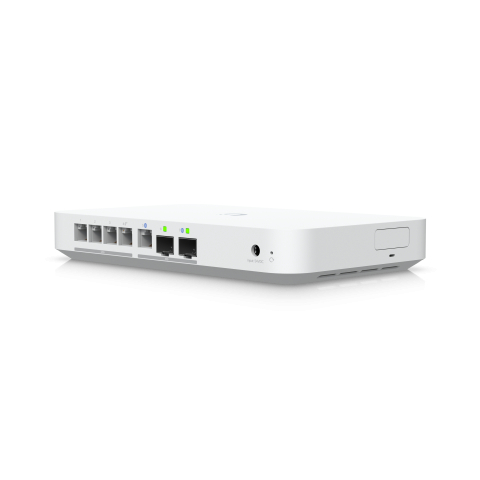

The Ubiquiti Cloud Gateway Fiber (UCG-Fiber) is engineered to deliver exceptional networking performance, catering to the demands of modern enterprises. It features dual WAN ports—one 10G SFP+ and one 10 GbE RJ45—providing versatile connectivity options for high-speed internet access. On the LAN side, the device offers one 10G SFP+ port and an integrated 4-port switch with four 2.5 GbE RJ45 ports, including one PoE+ port. This configuration ensures seamless integration into existing network infrastructures and supports high-bandwidth applications, making it ideal for businesses requiring robust and scalable networking solutions. The UCG-Fiber offers extensive VPN and SD-WAN functionalities to meet the connectivity needs of distributed networks. It supports license-free SD-WAN, facilitating efficient and cost-effective site-to-site connectivity.

Security is a paramount consideration in the UCG-Fiber's design. It incorporates a stateful firewall and an application-aware Layer 7 firewall, enabling granular control over network traffic. The device also supports deep packet inspection (DPI) and traffic identification, allowing for detailed monitoring and management of data flows. With intrusion prevention and detection systems (IPS/IDS) boasting over 55,000 signatures powered by CyberSecure, the UCG-Fiber provides robust protection against potential threats, ensuring the integrity and security of your network. The device is compatible with various VPN protocols, including IPsec, OpenVPN, WireGuard, and L2TP, providing flexible options for secure remote access. The Teleport zero-configuration VPN feature simplifies the setup process, enabling quick and secure connections between remote users and the central network.

The UCG-Fiber is designed to deliver exceptional performance, ensuring smooth operation even in demanding enterprise environments. Powered by a quad-core ARM® Cortex®-A73 processor running at 2.2 GHz and supported by 3 GB of system memory, the device can efficiently handle high data throughput, complex routing, and security tasks. With a maximum power consumption of 29.4W (excluding PoE output), the UCG-Fiber maintains energy efficiency while delivering high-speed networking capabilities. It includes a 54V DC/1.1A power adapter for reliable power delivery. For management and configuration, the device supports both Ethernet and Bluetooth, providing administrators with flexible access options. The compact desktop form factor ensures easy deployment, whether in a home office or enterprise environment.
