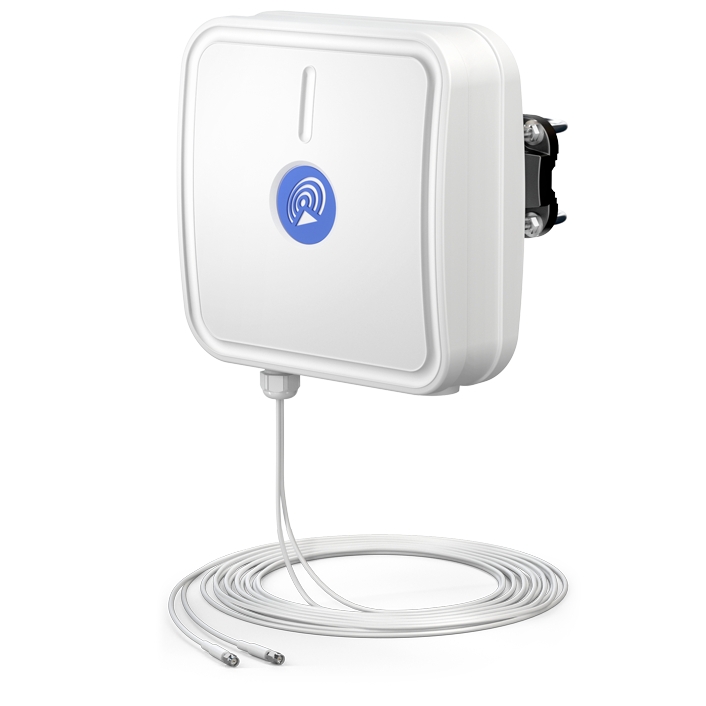

QuPanel 5G/LTE MIMO 2x2, 5m cable
out of stock
?
122.37 €
122.37 €
Available alternatives
Detailed description
Directional High Power multiband 5G/LTE MIMO 2x2 antenna
QuPanel 5G/LTE directional MIMO 2x2 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It’s compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 5G / LTE / 3G / 2G modems and routers.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Panel
Mobile Antenna Frequency Range & Gain
0.694 - 0.960 (GHz) 7 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 3.8 (GHz) 5.5 (dBi)
Mobile Antenna Gain
7 dBi, 5.5 dBi
Beamwidth
70 ° Vertical, 70 ° Horizontal
Cable Length
5 m
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors
(2) SMA Male
Physical Parameters
Ingress Protection Code
IP67
Dimensions
392 x 392 x 96 mm
Weight
3.7 kg
Operating Temperature
-40 °C to 75 °C
Mounting Method
Pole Mount
