Brand
Manufacturer part number
AP5G4-G
Warranty
?
12 months
EAN
5905868600551

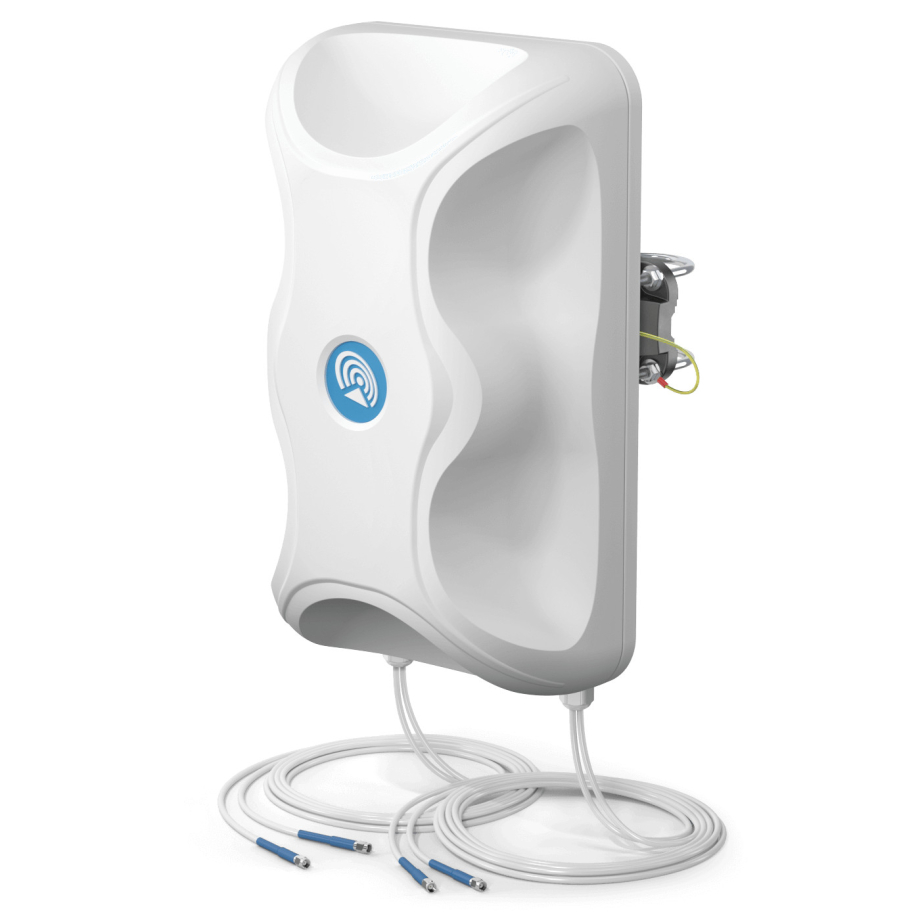

QuPanel 5G/LTE Global MIMO 4x4, 5m
out of stock
?
169.35 €
169.35 €
Available alternatives
Detailed description
QuPanel 5G/LTE Global MIMO 4x4 is directional ultra-wideband 5G outdoor antenna. It is primary designed for LTE/ 5G /3G/ 2G devices which require high efficiency connections. The antenna covers many LTE bands including the new Extended LTE Band 71 and frequencies: 600 - 6000 MHz. The mounting bracket allows installing the antenna on the pole or on the wall as the client antenna. It's ideal solution to use with all industrial and domestic 4x4 5G modems and routers like: Teltonika, DIGI, Mikrotik, Robustel, Cisco, etc.
Supported LTE/4G GSM bands (617-960 MHz): 5, 6, 8, 12, 13, 14, 17, 18, 19, 20, 26, 27, 28, 29, 44, 67, 68, 71, 85, n81, n82, n83, n89.
Supported LTE/4G UMTS bands (1710-2170 MHz): 1, 2, 3, 4, 9, 10, 25, 33, 34, 35, 36, 37, 39, 59, 62, n80, n84, n86, n95.
Supported LTE/4G WCS DARS bands (2300-2400 MHz): 30, 40.
Supported LTE/4G bands (2400-2700 MHz): 7, 38, 41, 53, 69, n90.
Supported LTE/5G bands (3300-3800 MHz): 22, 42, 43, 48, 49, 52, n78.
Technical Specs / Datasheet
