Teltonika RUTX11 WiFi LTE Cat6 Router
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description

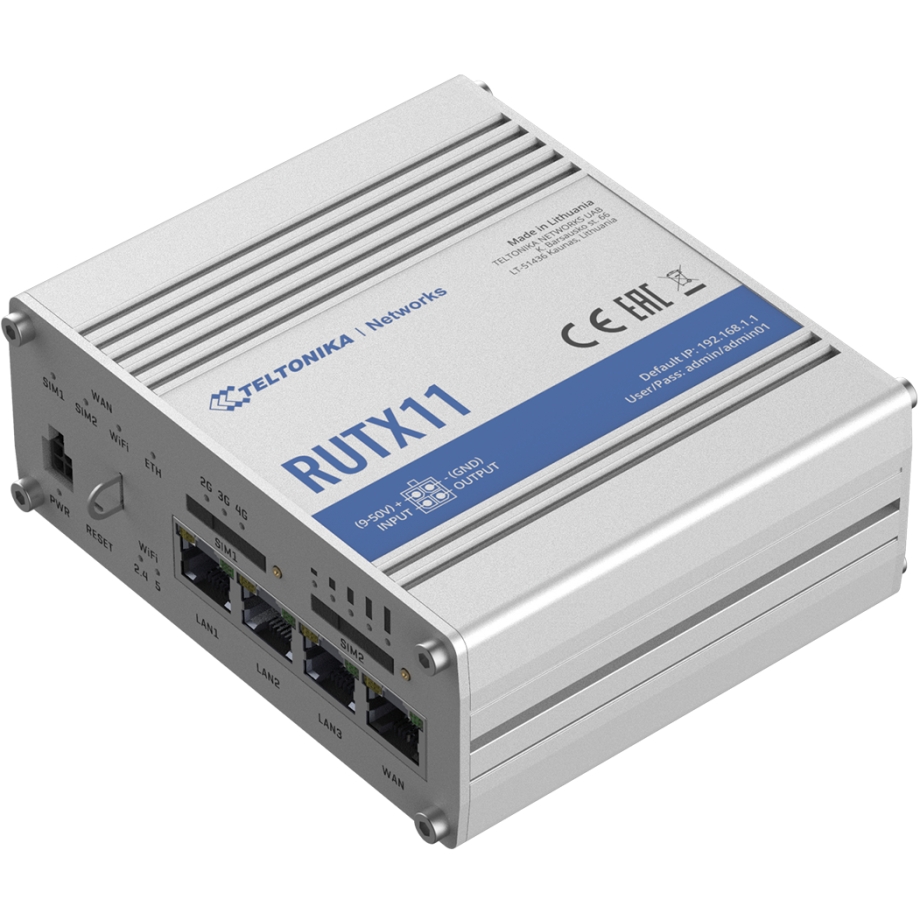

Industrial cellular router
RUTX11 is the most powerful and feature rich device within Teltonika networking products range. It's equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC Wi-Fi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced industrial and enterprise applications.
A wide range of internal hardware interfaces allows this device to be used in power-intensive industrial applications where speed and reliability are at the heart of the solution. Four Gigabit Ethernet ports and a download speed of 300 Mbps ensure seamless data transfer experience. Quad Core ARM Cortex A7 717 MHz CPU and 256 MB DDR3 RAM assures smooth VPN data acquisition. In addition, Bluetooth LE allows sensors to be connected directly to the router.
Note! This version is for Europe, the Middle East, Africa, Korea, Thailand. Not Suitable for US market.
Compatible products
Specifications
Mobile Network
Mobile Network Generation
3G (UMTS), 4G (LTE)
LTE Category
Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Dual SIM
Wireless Network
Standards
802.11b/g/n, 802.11ac Wave2
MIMO
2.4GHz 2x2, 5GHz 2x2
2.4GHz Radio Rate
300 Mbps
5GHz Radio Rate
867 Mbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.400 - 2.500 (GHz) 3.5 (dBi), 5.100 - 5.950 (GHz) 3.5 (dBi)
Mobile Antenna Frequency Range & Gain
0.698 - 2.690 (GHz) 3 (dBi)
Mobile Antenna Gain
3 dBi
VSWR
< 3
Impedance
50 Ω
Connectors
RF Connectors
(3) SMA Female, (3) RP-SMA Female
Interfaces
RJ45 Ports
(4) 1 Gbps
Interface
(1) Digital Input, (1) Digital Output
USB Ports
(1) USB-A 2.0
System Specification
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB
Storage Memory
256 MB
Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 50 V DC
Max Power Consumption
16 W
Power Connector
4-pin, 3 mm
PSU / POE adapter
12 V DC 1.5 A
Physical Parameters
Ingress Protection Code
IP30
Dimensions
115 x 95 x 44 mm
Weight
0.456 kg
Operating Temperature
-40 °C to 75 °C
Mounting Method
DIN Rail, Tabletop
Package Contains
External Power Supply
Included
