Brand
Manufacturer part number
PR1KCL25
Warranty
?
12 months
EAN
0708747439793

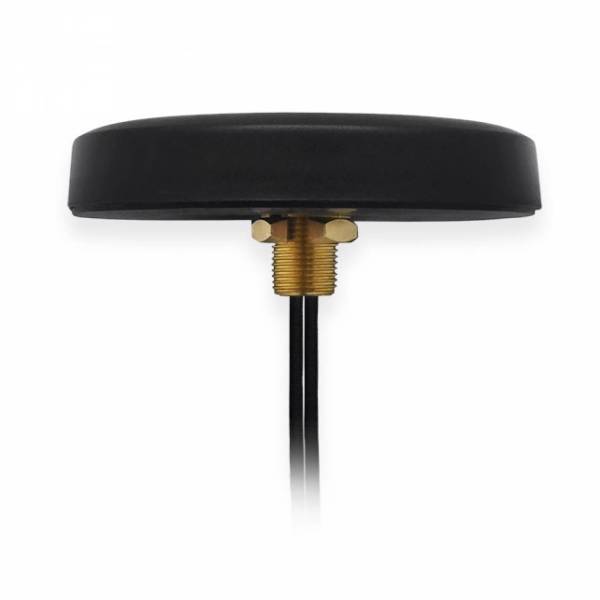

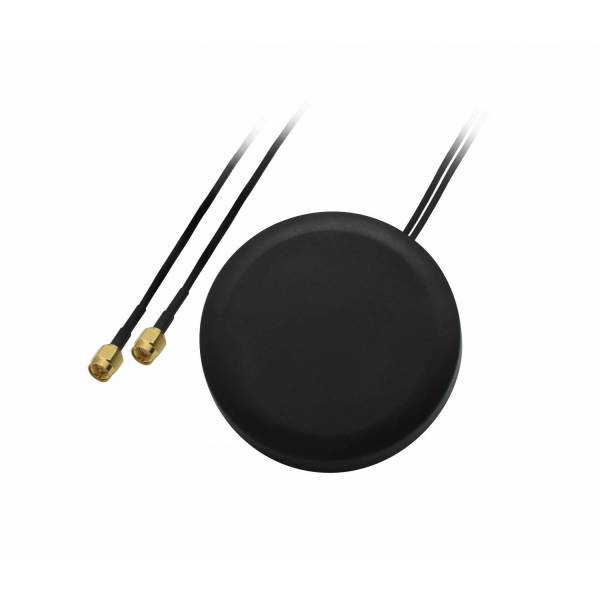

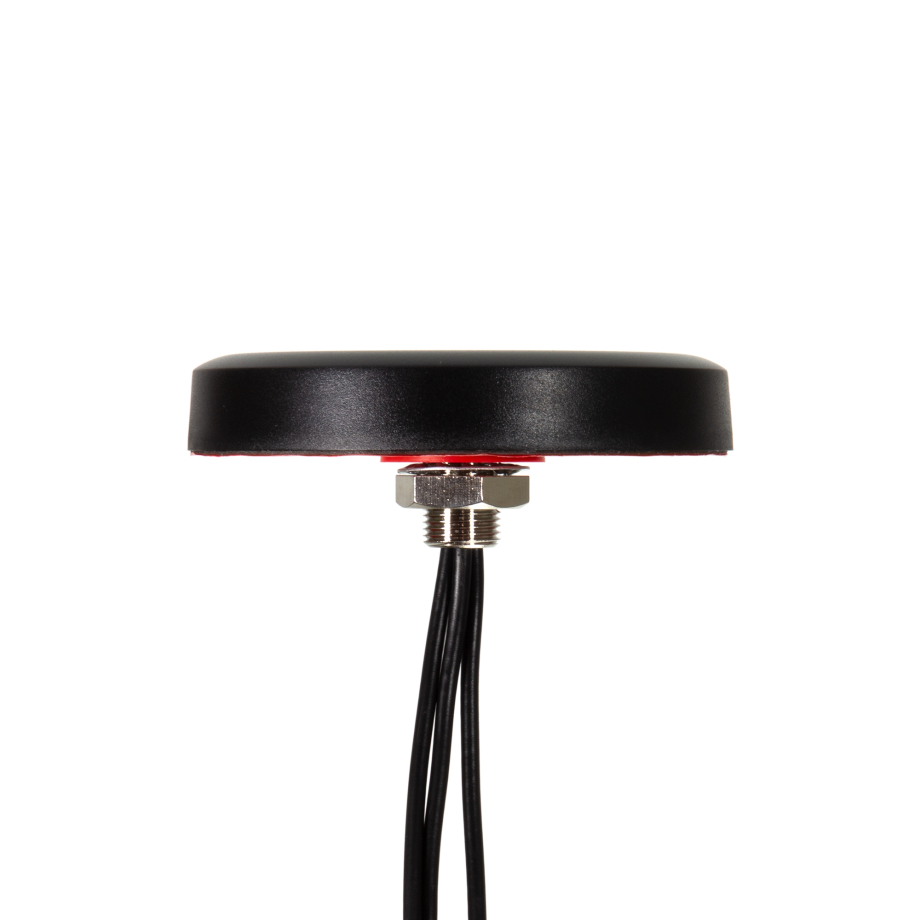

Teltonika Combo MIMO Mobile Roof Antenna 3m
Certified Teltonika Engineers
Official Teltonika Distributor
in stock
?
13.75 €
13.75 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailed description
PR1KCL25 is a SMA Male antenna that works in frequency ranges 698-960 / 1710-2690 MHz with a maximum gain 2.5 dBi. This is a linear-polarized antenna with impedance 50 Ohm. The antenna is protected from dust and water according to the ingress protection rating IP65. PR1KCL25 is equipped with two high-frequency coaxial RG174 cables. The length of each cable is 3 m. Mounting method: screw.
Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
4G (LTE)
Antenna
Antenna Design
Roof
Mobile Antenna Frequency Range & Gain
0.698 - 0.960 (GHz) 2.5 (dBi), 1.710 - 2.690 (GHz) 2.5 (dBi)
Polarization
Linear
Cable Length
3 m
VSWR
< 3.0
Impedance
50 Ω

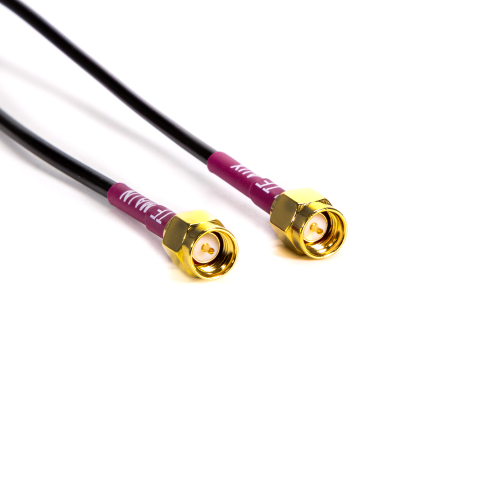

Connectors
RF Connectors
(1) SMA Male, (1) RP-SMA Male
Physical Parameters
Color
Black
Material
ABS Plastic
Ingress Protection Code
IP67
Dimensions
Ø85 x 15 mm
Weight
0.25 kg
Environment
Outdoor

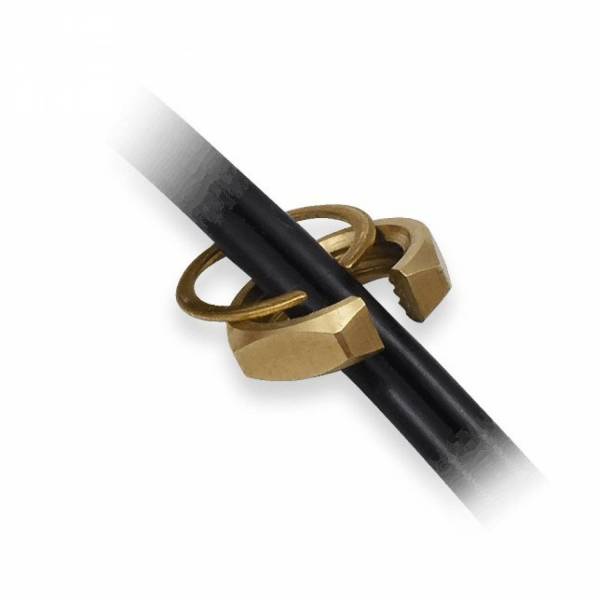

Mounting Method
Screw
