Manufacturer part number
CCR1009-7G-1C-PC
Warranty
?
12 months
EAN
4752224001894
MikroTik CCR1009-7G-1C-PC
This item has been discontinued
We recommend to use the product presented below
MikroTik CCR2004-16G-2S+PC
CCR2004-16G-2S+PC
Available alternatives
Detailed description
The updated revision of CCR1009
Important changes:
- No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
- Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
- 100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
- More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

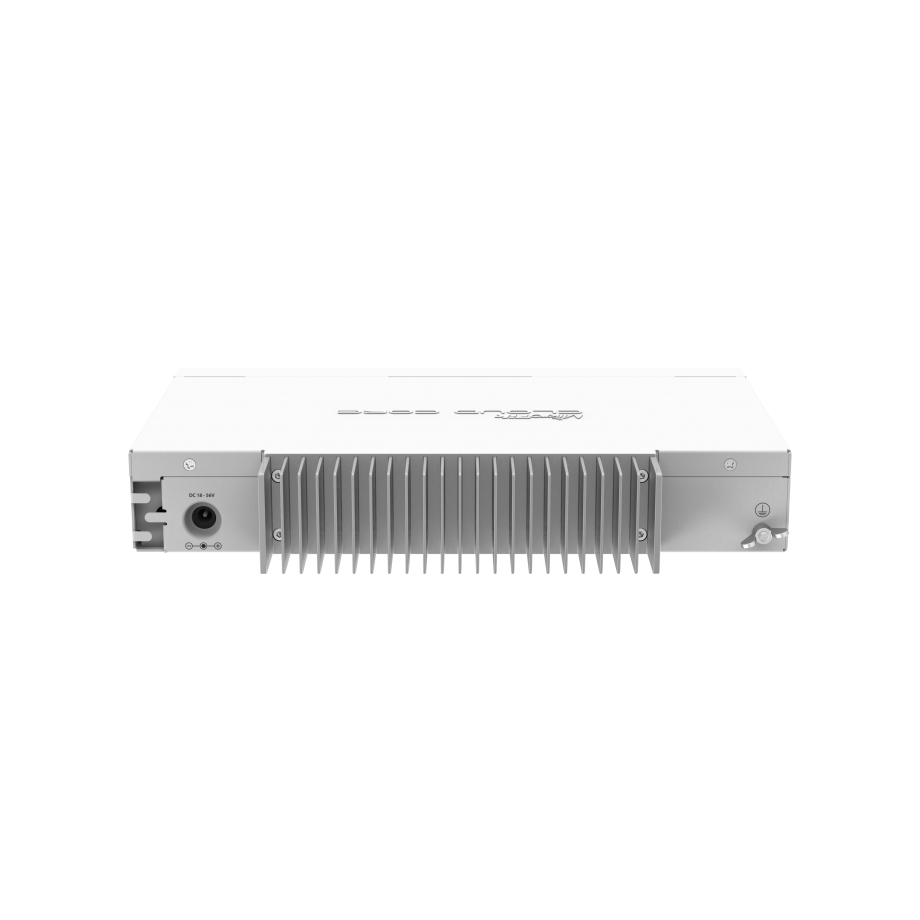

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so it's completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.
Technical Specs / Datasheet
Compatible products
Specifications
Interfaces
RJ45 Ports
(7) 1 Gbps
SFP Ports
(1) 1G SFP/ETH Combo
USB Ports
(1) Micro USB
Communication Interface
RS232
Management
Ethernet
System Specification
Chipset
TLR4-00980, 9 core, 1 GHz
RAM
1 GB
Storage Memory
128 MB
Power
Power Method
AC/DC Adapter, 24V Passive PoE, 48V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
18 - 57 V DC
Max Power Consumption
25 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
24 V DC 2.5 A
Physical Parameters
Color
White
Material
Metal
Ingress Protection Code
IP20
Dimensions
272 x 190 x 44 mm
Operating Temperature
-20 °C to 60 °C
Environment
Indoor
Form Factor
Rack-mounted 19", Desktop
Number of Rack Units
1U
Mounting Method
RackMount, Tabletop
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 6
