JARFT 4G LTE 14dBi Panel Antenna 800-2600MHz
in stock
?
41.28 €
41.28 €
Detailed description
Comprehensive Multiband Support
The JARFT 4G LTE 14dBi Panel Antenna (J4GMB-14-DOMPA) is engineered to significantly boost 4G/LTE signal reception, ensuring a stable and high-speed data connection. With a high gain of up to 14dBi, this directional antenna effectively captures signals from distant 4G base stations, making it ideal for areas with weak coverage. By enhancing signal strength and stability, users can experience improved data transfer rates, reduced latency, and a more reliable internet connection, even in challenging environments.
Designed to operate across all major 4G frequency bands—800 MHz, 1800 MHz, and 2600 MHz—the J4GMB-14-DOMPA offers universal compatibility with various 4G service providers. This multiband functionality ensures that users can seamlessly connect to their preferred networks without compatibility concerns. Whether for residential, commercial, or industrial applications, this antenna provides the flexibility needed to maintain consistent and robust connectivity across different network infrastructures.
Weather-Resistant Construction
Built to withstand harsh outdoor conditions, the antenna features a robust, weatherproof, and UV-resistant PVC enclosure with a stainless steel backplate. This durable construction ensures reliable performance in various environmental conditions, including extreme temperatures ranging from -30°C to 75°C and wind speeds up to 200 km/h. Such resilience makes it suitable for both indoor and outdoor installations, providing long-term durability and consistent signal enhancement regardless of the setting.

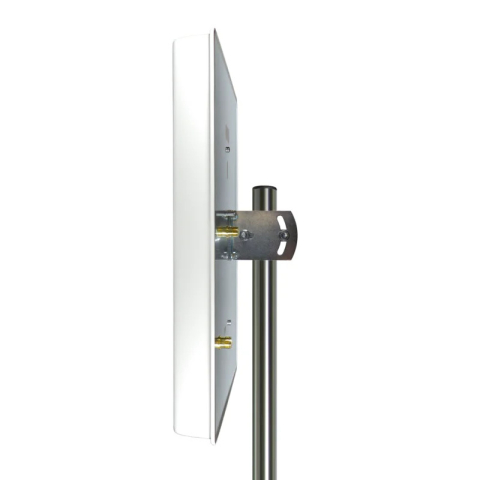

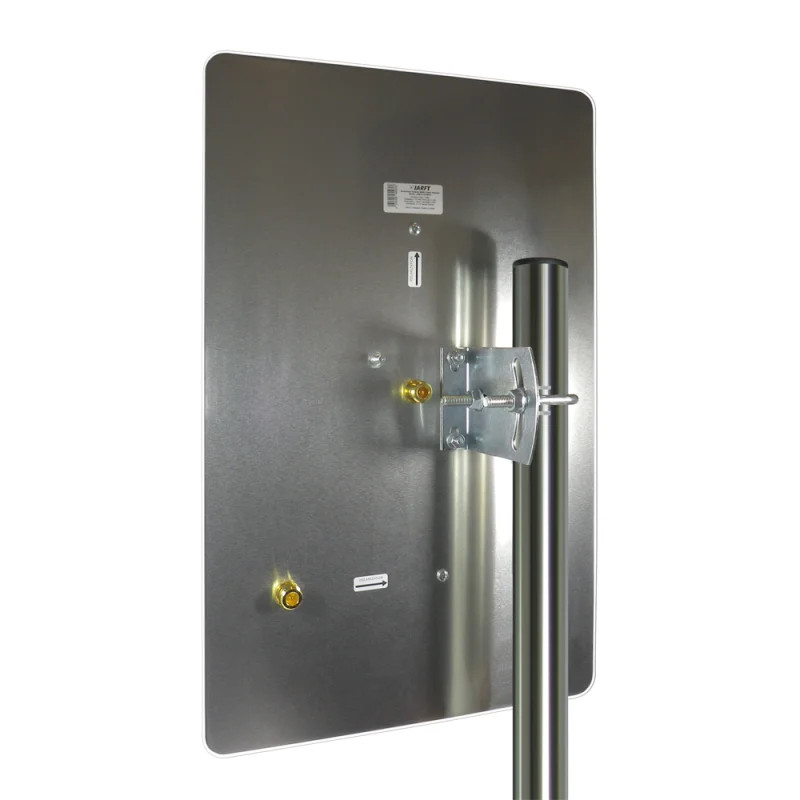

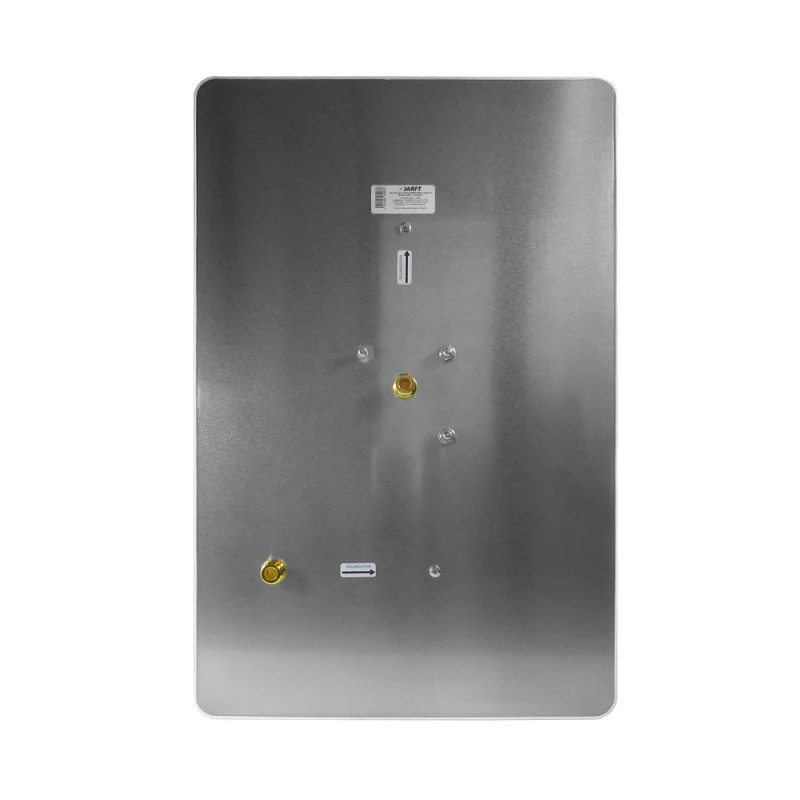

The J4GMB-14-DOMPA is designed for straightforward installation on poles or walls, with a mounting kit that includes an angle bracket and u-clamp suitable for diameters ranging from 30 to 50 mm. It comes equipped with two N-female connectors, supporting 2x2 MIMO technology for enhanced data throughput. The cable with N-male to SMA-male connectors is included, ensuring compatibility with a wide range of 4G routers. This flexibility allows for customized setups tailored to specific connectivity requirements and installation environments.
Technical Specs / Datasheet
Specifications
Mobile Network
Mobile Network Generation
4G (LTE)
Antenna
Antenna Design
Panel
Mobile Antenna Frequency Range & Gain
0.791 - 0.862 (GHz) 10 (dBi), 1.700 - 2.100 (GHz) 14 (dBi), 2.500 - 2.700 (GHz) 14 (dBi)
Mobile Antenna Gain
10 dBi, 14 dBi, 14 dBi
Beamwidth
25 ° Vertical, 30 ° Horizontal
Polarization
Linear, Vertical, Horizontal
VSWR
< 1.6
Impedance
50 Ω
Maximum Input Power
50 W
Connectors
RF Connectors
(2) N Female
Physical Parameters
Color
White
Dimensions
47 x 31 x 5 cm
Weight
0.6 kg
Operating Temperature
-30 °C to 70 °C
Environment
Indoor, Outdoor
Mounting Method
Pole Mount
Rated Wind Velocity
200 km/h
