4G Omni Antenna 2dBi N-Male
in stock
?
7.22 €
7.22 €
Detailed description

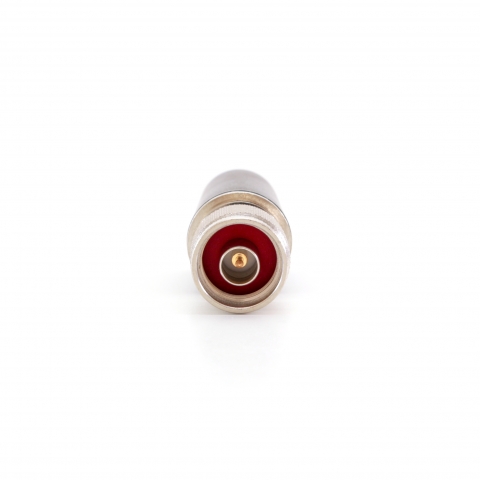

The AOA-4G-2ACM is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use. Operates in frequency bands 698-960 MHz SISO 1x1, 1710-2170 MHz SISO 1x1 and 2500-2700 MHz SISO 1x1 with 2 dBi gain. Equipped with a waterproof N male connector.
VSWR
Frequency Diagram
2D Drawing Dimension
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Omni
Mobile Antenna Frequency Range & Gain
0.698 - 0.96 (GHz) 2 (dBi), 1.71 - 2.17 (GHz) 2 (dBi), 2.5 - 2.7 (GHz) 2 (dBi)
Mobile Antenna Gain
2 dBi
Beamwidth
360 °
Impedance
50 Ω
Connectors
RF Connectors
(1) N Male
Physical Parameters
Color
Black
Material
Plastic
Dimensions
Ø22 x 64 mm
Weight
0.043 kg
Operating Temperature
-40 °C to 85 °C
