4G LTE Outdoor Antenna 5dBi IP67 Male
in stock
?
24.93 €
24.93 €
Available product variations
Detailed description
The AOA-4G-5M is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with IP67 enclosure protection. Operates in frequency bands 698-960 MHz SISO 1x1 with 4 dBi gain and 1710-2690 MHz SISO 1x1 with 5 dBi gain. Equipped with an N Male connector.

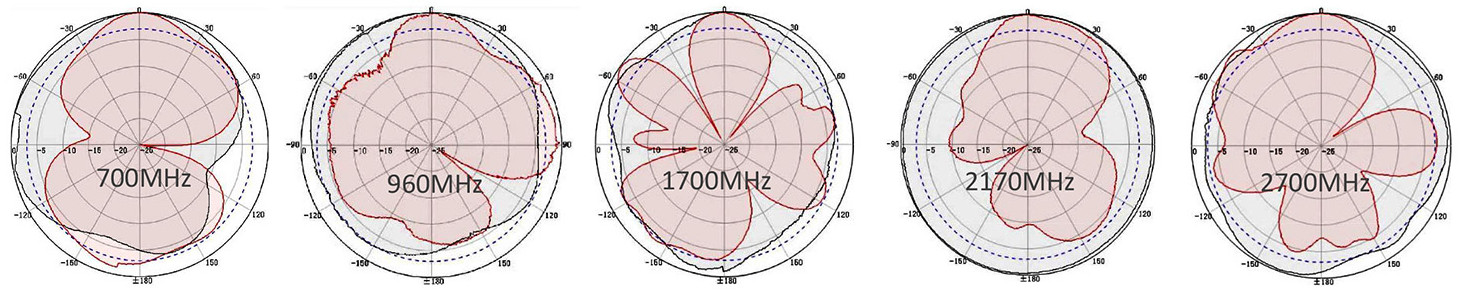

Frequency Diagram
Compatible products
Specifications
Mobile Network
Mobile Network Generation
4G (LTE)
Antenna
Antenna Design
Omni
Mobile Antenna Frequency Range & Gain
0.698 - 0.960 (GHz) 4 (dBi), 1.710 - 2.700 (GHz) 5 (dBi)
Beamwidth
35 ° Vertical, 360 ° Horizontal
Polarization
Vertical
VSWR
< 1.5
Impedance
50 Ω
Maximum Input Power
100 W
Connectors
RF Connectors

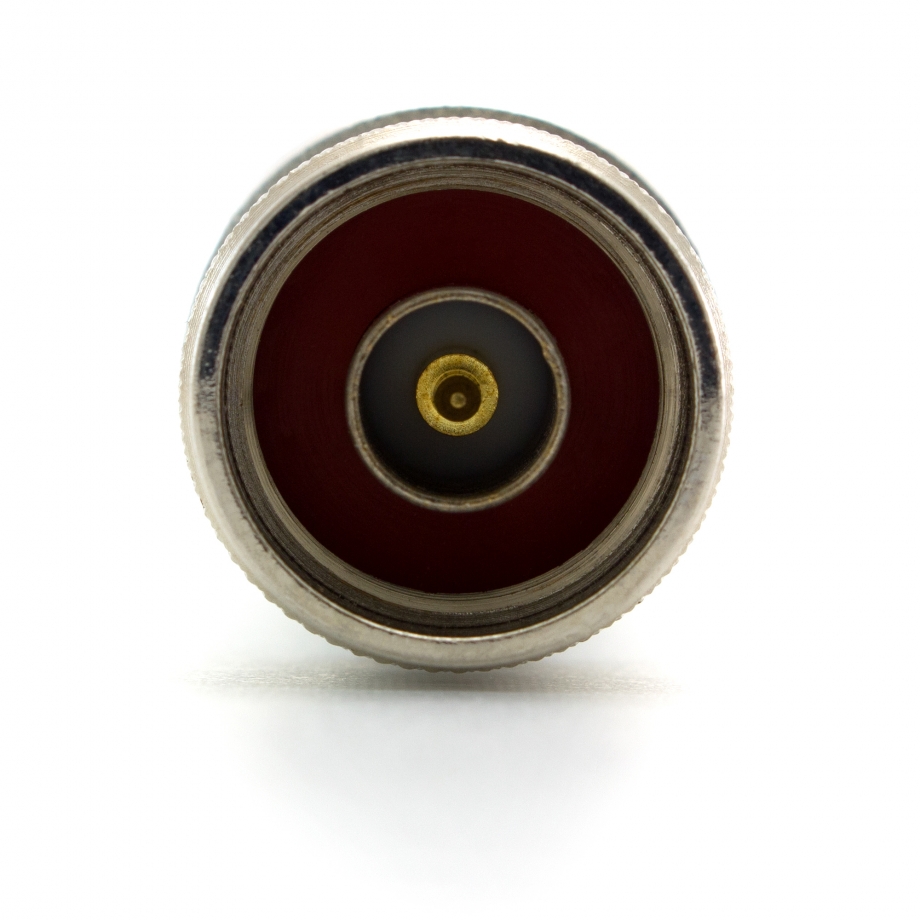

(1) N Male
Physical Parameters
Color
Grey
Material
Fiberglass
Ingress Protection Code
IP67
Dimensions
Ø20 x 320 mm
Weight
0.25 kg
Operating Temperature
-40 °C to 70 °C
Environment
Outdoor
Mounting Method
Pole Mount
Rated Wind Velocity
60 m/s
