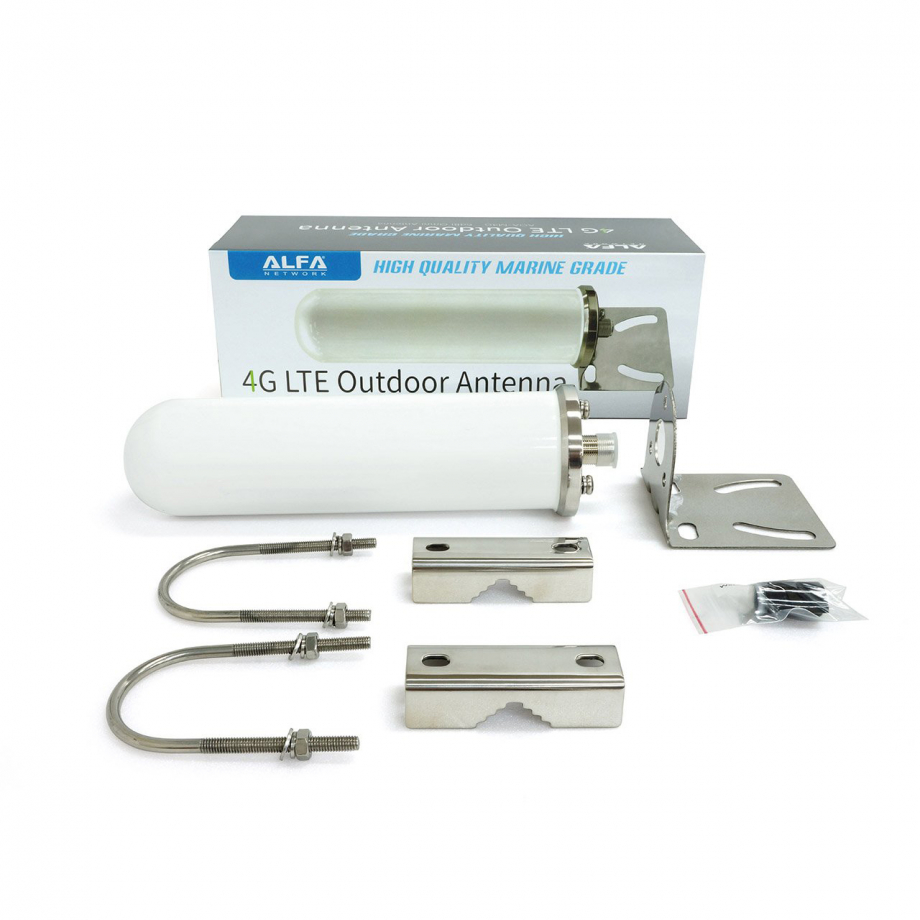

4G LTE Outdoor Antenna 6dBi Marine Grade
out of stock
?
51.20 €
51.20 €
Detailed description
The AOA-M4G is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with increased protection against water ingress. Operates in frequency bands 698-960 MHz SISO 1x1 with 4 dBi gain and 1710-2700 MHz SISO 1x1 with 6 dBi gain. Equipped with a waterproof N Female connector.

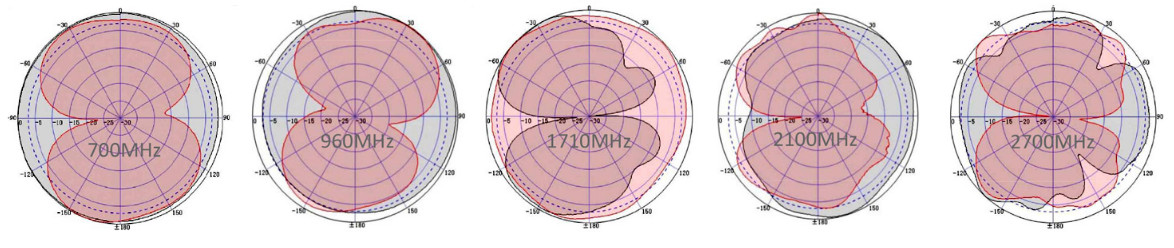

Frequency Diagram
Compatible products
Specifications
Mobile Network
Mobile Network Generation
4G (LTE)
Antenna
Antenna Design
Omni
Mobile Antenna Frequency Range & Gain
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.7 (GHz) 6 (dBi)
Beamwidth
18 ° Vertical, 360 ° Horizontal
Polarization
Vertical
VSWR
< 1.5
Impedance
50 Ω
Maximum Input Power
100 W
Connectors
RF Connectors
(1) N Female
Physical Parameters
Color
White
Material
Fiberglass
Ingress Protection Code
Marine Grade
Dimensions
Ø63 x 220 mm
Weight
1.2 kg
Operating Temperature
-40 °C to 70 °C
Environment
Outdoor
Mounting Method
Pole Mount
Rated Wind Velocity
60 m/s
