Ubiquiti Fiber OLT XGS

The UISP Fiber OLT XGS serves as a critical component in fiber optic networking infrastructure, primarily used for Optical Line Termination (OLT) in fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and fiber-to-the-premises (FTTP) deployments. This device enables network operators to deliver high-speed internet access, voice, and video services to end-users with exceptional reliability and performance.

Features:

LED indicators provide visual feedback on various aspects of the device's status, ensuring easy monitoring and troubleshooting. Additionally, advanced software features such as VLAN support, advanced QoS capabilities, and concurrent client registration demonstrate the UISP Fiber OLT XGS's versatility and performance capabilities.

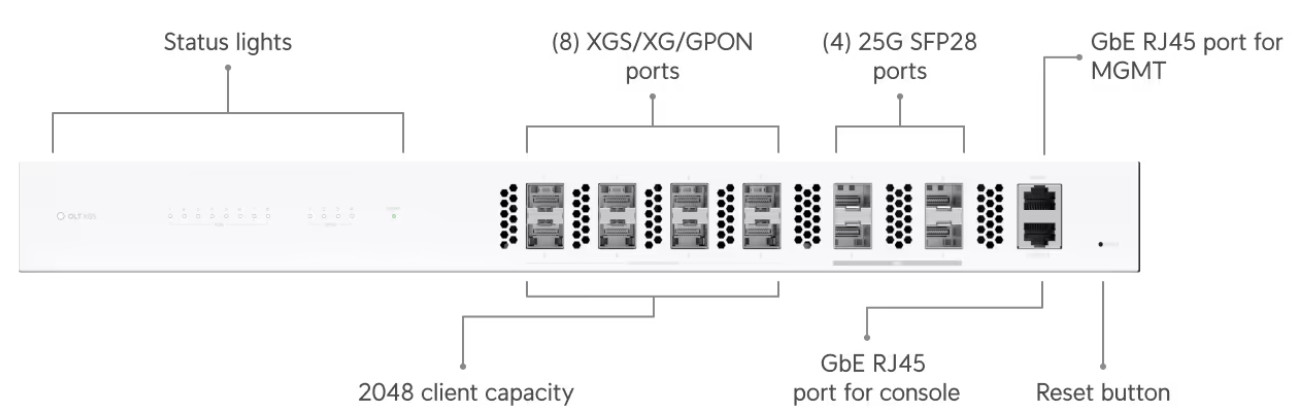

At its core, the UISP Fiber OLT XGS boasts a comprehensive hardware suite, featuring eight XGS/XG/GPON ports and four 1/10/25G SFP28 ports*. These interfaces provide versatile connectivity options for upstream and downstream traffic, supporting high-speed data transmission and broadband connectivity for residential, commercial, and industrial applications. Additionally, the UISP Fiber OLT XGS is equipped with a management interface comprising Ethernet out-of-band, Ethernet in-band, and an RJ45 serial console port, facilitating seamless configuration and monitoring tasks. Furthermore, Bluetooth capabilities enhance connectivity for management operations, enhancing user experience and efficiency.

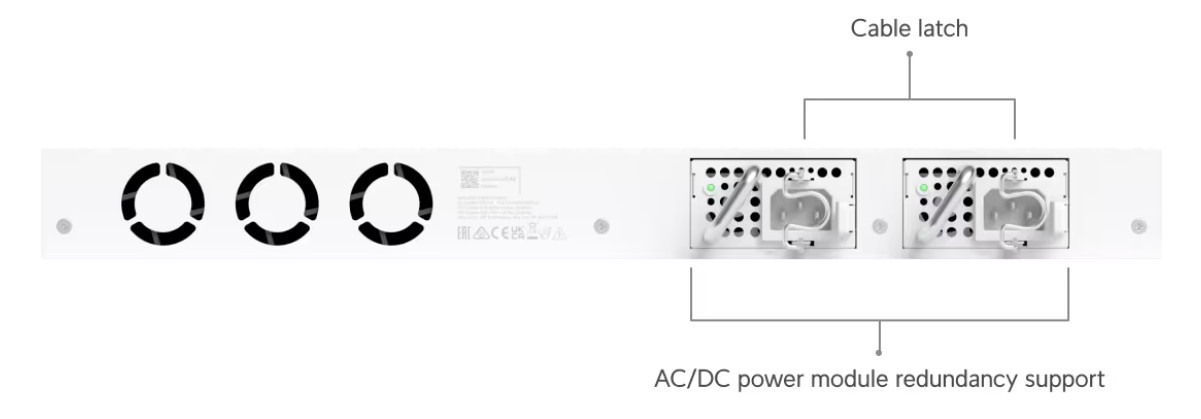

Powered by a universal AC input mechanism compatible with 100–240V AC, 50/60 Hz, and equipped with two hot-swappable AC/DC PSUs, the UISP Fiber OLT XGS ensures reliable operation in diverse power environments. With a maximum power consumption of 70W and a factory reset button for quick device management, it delivers energy-efficient performance and streamlined operation.

Designed to withstand harsh environmental conditions, the UISP Fiber OLT XGS operates within an ambient temperature range of -10 to 45°C (14 to 113°F) and ambient humidity of 10 to 95% non-condensing. Its rugged construction, coupled with certifications including CE, FCC, and IC, underscores its reliability and compliance with industry standards.

Enterprises and organizations can leverage the UISP Fiber OLT XGS to establish high-performance fiber optic networks within their premises. With support for advanced networking features such as VLANs and QoS, the OLT enables efficient traffic management and segmentation, catering to diverse business requirements. It can be used to connect network switches, access points, IP cameras, and other devices, providing seamless connectivity for mission-critical applications and services.

Educational institutions, universities, and large campuses can deploy the UISP Fiber OLT XGS to create robust fiber optic networks to support their networking needs. The OLT can serve as the central point for connecting multiple buildings and facilities, providing high-speed internet access, VoIP services, and multimedia content delivery. Its scalability and advanced features make it suitable for campus-wide deployments, enabling seamless communication and collaboration among students, faculty, and staff.

Municipalities and local governments can integrate the UISP Fiber OLT XGS into their smart city initiatives to build resilient and efficient fiber optic networks. These networks can support various applications such as smart traffic management, public Wi-Fi hotspots, environmental monitoring, and surveillance systems. The OLT's advanced features and scalability make it well-suited for powering the digital transformation of cities and communities.

Internet service providers (ISPs) and wireless internet service providers (WISPs) can utilize the UISP Fiber OLT XGS to expand their network infrastructure and deliver high-speed broadband services to customers. By deploying fiber optic networks powered by the OLT, ISPs can offer reliable and scalable internet connectivity to residential and business customers, enhancing their competitive edge in the market.
