Shielded airMAX AC radio base with airPrism technology.
The airMAX PrismStation 5AC, with the model manufacture part number PS-5AC, is a sophisticated wireless network device engineered by Ubiquiti Networks, marking a significant advancement in the realm of outdoor wireless broadband technology. This device is meticulously designed to cater to the growing demand for high-capacity, reliable, and interference-free wireless connectivity in diverse deployment scenarios, ranging from internet service provision to extensive enterprise networks.
The IsoStation 5AC is specifically designed to work in harmony with other airMAX ac devices. This includes compatibility for both point-to-point (PtP) and point-to-multipoint (PtMP) configurations, making it versatile for various network designs, whether it's connecting isolated buildings or serving as a part of a larger, distributed network. Its ability to integrate with airMAX ac sector antennas and other CPE devices allows for flexible deployment strategies tailored to meet specific network requirements and environments. Moreover, for the best performance and compatibility, it is crucial to pair the IsoStation 5AC with devices that operate on the same 5 GHz frequency band and support the airMAX ac protocol. Mixing devices across different frequencies or technologies without compatibility could lead to suboptimal performance or connectivity issues.
In addition, it's important to note that while the IsoStation 5AC excels within the airMAX ecosystem, it does not natively integrate with the UniFi series of products, which are managed through the UniFi Controller. The UniFi series primarily focuses on managed Wi-Fi networking within indoor and semi-outdoor environments and operates on a different platform.

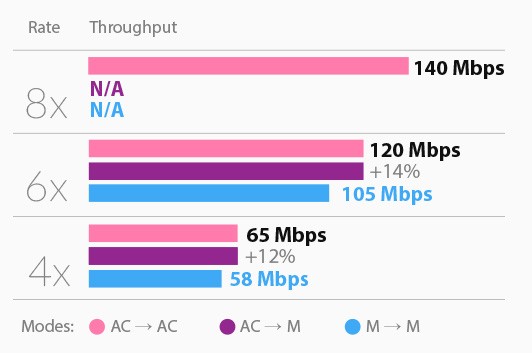

At the core of the PrismStation 5AC's capabilities is Ubiquiti's proprietary airMAX ac technology, which operates within the 5 GHz frequency band. This advanced technology incorporates a custom silicon chipset that enhances the modulation efficiency of the wireless signal, thereby significantly boosting the throughput and performance of the network over 5+ km. The integration of airMAX ac technology enables the device to deliver superior bandwidth and lower latency, making it exceptionally well-suited for applications requiring high data rates, such as video streaming, VoIP, and data-intensive cloud services.
One of the hallmark features of the PS-5AC is its innovative modular design, which includes a dedicated PrismAP antenna accessory that can be easily attached to the base unit to customize the device's beamwidth according to specific deployment needs. Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements. This flexibility allows network operators to fine-tune the signal coverage to minimize interference from other sources, ensuring optimal performance in congested signal environments. The PrismStation's ability to maintain high-quality, focused wireless links significantly enhances its effectiveness in PtP (Point-to-Point) and PtMP (Point-to-Multipoint) configurations.
The device is built with durability and resilience in mind, featuring a rugged, weather-resistant exterior that ensures reliable operation in various outdoor conditions, including extreme temperatures from -40 °C to 70 °C, precipitation, and humidity. This robust construction makes the PrismStation 5AC an ideal choice for deployment in challenging geographical locations where environmental factors can impact the performance of less durable equipment. Additionally, this device supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
The device also features advanced software capabilities powered by Ubiquiti's airOS 8. This intuitive, web-based operating system provides a comprehensive suite of tools for device configuration, network management, and performance optimization. With airOS 8, users can access detailed analytics, adjust network parameters, and monitor system status in real time, offering complete control over the wireless infrastructure.
Security features within airOS, including WPA2 encryption, provide robust protection against unauthorized access, safeguarding the network and its data transmissions. This level of security is critical for maintaining the integrity and confidentiality of sensitive information transmitted over the wireless network.
Ease of installation and management is another critical aspect of the PrismStation 5AC's design. The device supports Power over Ethernet (PoE) for simplified deployment, allowing both power and data to be supplied through a single Ethernet cable, thereby reducing cabling complexity and installation costs.
Application Scenarios
The PrismStation 5AC is ideal for establishing robust PtP connections over long distances. Its high throughput and interference immunity make it suitable for connecting two distant network points, such as linking buildings within a corporate campus or extending internet service to a remote location. This capability is crucial for organizations requiring reliable, high-speed data transmission between sites.
In scenarios where an internet service provider (ISP) or a large organization needs to distribute internet access or network resources to multiple points from a single source, the PrismStation 5AC serves as an efficient base station. Its ability to work with different Ubiquiti antennas allows for customizable beamwidths, ensuring targeted coverage that minimizes interference and optimizes network performance across multiple client devices.
For ISPs aiming to expand their network coverage or enhance the capacity of their existing network infrastructure, the PrismStation 5AC provides a powerful solution for creating backhaul links. These high-capacity links are essential for transmitting large amounts of data between network nodes or from remote access points back to the main network, supporting the delivery of broadband services to end-users.
For surveillance applications where high-definition video streaming is required from cameras positioned across large areas, the PrismStation 5AC can provide the necessary backhaul support. Its high throughput and stable connections ensure that video data is transmitted efficiently to monitoring stations, enhancing security and surveillance capabilities.
The PrismStation 5AC can quickly establish wireless networks for outdoor events, festivals, or temporary setups requiring robust internet access. Its interference mitigation capabilities ensure reliable connectivity even in areas with many competing signals, supporting event operations, vendors, and attendee connectivity needs.
The device is also adept at bridging the digital divide by providing high-speed internet access to rural or remote areas where traditional broadband infrastructure is either unavailable or not cost-effective. The PrismStation 5AC's long-range capabilities and resilience to interference make it possible to extend essential connectivity services to underserved communities.
In each of these scenarios, the airMAX PrismStation 5AC (PS-5AC) by Ubiquiti Networks represents a pinnacle of innovation in wireless networking technology, offering a powerful, efficient, and adaptable solution for building high-performance wireless networks. With its advanced airMAX ac technology, flexible modular design, durable construction, and comprehensive management features, the PrismStation 5AC stands out as an exceptional tool for overcoming the challenges of modern wireless connectivity, enabling network operators to deliver high-quality, interference-free broadband services across a wide range of applications and environments.
Compare with similar products
| | | |
|---|
| Wireless Standard | |
| |
| 802.11ac
| 802.11ac
|
| 5GHz Radio Rate | |
| |
| 500 Mbps
| 450 Mbps
|
| GPS sync | |
| |
|
|
| Ethernet Ports | |
| |
| 1 x 1 Gbps
| 1 x 1 Gbps
|
| Chipset | |
| |
| MIPS 74 Kc
| MIPS 74 Kc
|
| RAM | |
| |
| 128 MB
| 64 MB
|
| Storage Memory | |
| |
| 16 MB
|
|
| Max Power Consumption | |
| |
| 10 W
| 8.5 W
|
| Weight | |
| |
| 0.77 kg
| 0.73 kg
|
| | | |
|---|
| Wireless Standard | 802.11ac
| 802.11ac
|
| 5GHz Radio Rate | 500 Mbps
| 450 Mbps
|
| GPS sync |
|
|
| Ethernet Ports | 1 x 1 Gbps
| 1 x 1 Gbps
|
| Chipset | MIPS 74 Kc
| MIPS 74 Kc
|
| RAM | 128 MB
| 64 MB
|
| Storage Memory | 16 MB
|
|
| Max Power Consumption | 10 W
| 8.5 W
|
| Weight | 0.77 kg
| 0.73 kg
|
