Brand
Manufacturer part number
Wave-LR
Warranty
?
12 months
EAN
0810010078995
Ubiquiti Wave Long-Range
Ubiquiti Elite Distributor
out of stock
?
341.76 €
341.76 €
Ubiquiti Elite Distributor
Available alternatives
Detailed description

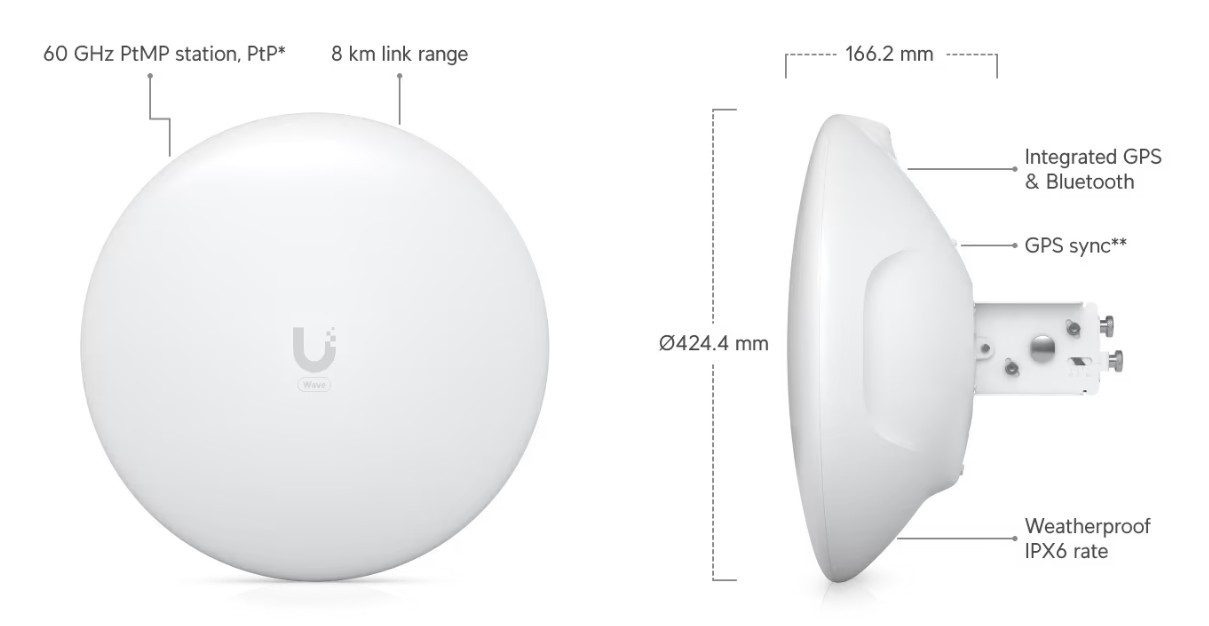

The Ubiquiti Wave Long-Range (Wave-LR) is a high-performance 60 GHz point-to-multipoint (PtMP) station engineered using Ubiquiti's proprietary Wave Technology. This device is designed to provide robust wireless connectivity over long distances with a maximum link range of up to 8 km when paired with a Wave AP, and up to 6 km with a Wave AP Micro. The Wave-LR can achieve an impressive maximum throughput of 2 Gbps (1 Gbps duplex), facilitating substantial data transmission capabilities ideal for demanding network environments.
Features:
- 5 GHz backup radio
- Link range with Wave AP: up to 8 km
- Link range with Wave AP Micro: up to 6 km
- Bridge/ Router mode support
- Integrated GPS antenna
- Link planning support via ISP Design Center
The hardware includes a dual-core ARM® Cortex®-A53 processor clocked at 1 GHz, coupled with 512 MB of DDR3L memory. It supports a maximum power consumption of 20W and can be powered using a 48V DC, 0.65A gigabit PoE adapter, which is included. The Wave-LR operates effectively across a temperature range of -40 to 60° C and can handle ambient humidity of 5 to 95% non-condensing.
For enhanced reliability, the Wave-LR includes a 5 GHz weatherproof backup radio that supports a throughput of up to 800 Mbps, ensuring continuous operation even under adverse conditions. The device is equipped with a single Gigabit Ethernet RJ45 port for high-speed wired connections and includes an integrated precision alignment mount to aid in accurate installation and alignment.
Additionally, the Wave-LR features integrated GPS and Bluetooth for improved device coordination and management. Its robust design is encapsulated in a UV-stabilized plastic enclosure and mounted on stainless steel, which provides significant durability. The unit is capable of withstanding wind loading of 286 N at 200 km/h and offers IPX6-rated weatherproofing for operational resilience in various environmental conditions.

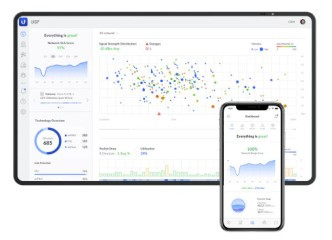

This device supports both bridge and router modes in PtMP station configurations and comes with firmware that enables various network functions and utilities such as antenna alignment, discovery utility, and speed tests. It is also equipped with Ubiquiti's Wave AI and discovery protocol, enhancing the functionality and ease of integration within existing networks. This combination of high durability, advanced networking capabilities, and robust throughput makes the Wave-LR a comprehensive solution for extending wireless coverage over large distances. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients' plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app.
Compare with similar products
| Wireless Standard | ||||
| 802.11ax (WiFi 6) | 802.11ax (WiFi 6) | 802.11ax (WiFi 6) | 802.11ax (WiFi 6) | |
| 60GHz Radio Rate | ||||
| 2.0Gbps | 2.0Gbps | 2.0Gbps | 5.4Gbps | |
| Wireless Antenna Frequency Range & Gain | ||||
| 57 - 71 (GHz) 46 (dBi), 5.15 - 5.875 (GHz) 22 (dBi) | 57 - 71 (GHz) 41 (dBi), 5.15 - 5.785 (GHz) 19 (dBi) | 57 - 71 (GHz) 27.7 (dBi), 5.18 - 5.875 (GHz) 9 (dBi) | 57 - 71 (GHz) 46 (dBi), 5.15 - 5.785 (GHz) 22 (dBi) | |
| Antenna range | ||||
| 8 km | 5 km | 1.3 km | 15 km | |
| Ethernet Ports | ||||
| 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | 2 x 2.5 Gbps | |
| SFP Ports | ||||
| 1 x 10G SFP+ | ||||
| Chipset | ||||
| Dual ARM® Cortex ® -A53 cores at 1GHz | Dual ARM® Cortex ® -A53 cores at 1GHz | Dual ARM® Cortex ® -A53 cores at 1GHz | Quad-core ARM® Cortex®-A53 at 1.4 GHz | |
| RAM | ||||
| 512 MB | 512 MB | 512 MB | 512 MB | |
| Max Power Consumption | ||||
| 18 W | 18 W | 10W | 26 W | |
| Weight | ||||
| 2.59 kg | 0.932 kg | 0.409 kg | 4 kg | |
| Wireless Standard | 802.11ax (WiFi 6) | 802.11ax (WiFi 6) | 802.11ax (WiFi 6) | 802.11ax (WiFi 6) |
| 60GHz Radio Rate | 2.0Gbps | 2.0Gbps | 2.0Gbps | 5.4Gbps |
| Wireless Antenna Frequency Range & Gain | 57 - 71 (GHz) 46 (dBi), 5.15 - 5.875 (GHz) 22 (dBi) | 57 - 71 (GHz) 41 (dBi), 5.15 - 5.785 (GHz) 19 (dBi) | 57 - 71 (GHz) 27.7 (dBi), 5.18 - 5.875 (GHz) 9 (dBi) | 57 - 71 (GHz) 46 (dBi), 5.15 - 5.785 (GHz) 22 (dBi) |
| Antenna range | 8 km | 5 km | 1.3 km | 15 km |
| Ethernet Ports | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | 2 x 2.5 Gbps |
| SFP Ports | 1 x 10G SFP+ | |||
| Chipset | Dual ARM® Cortex ® -A53 cores at 1GHz | Dual ARM® Cortex ® -A53 cores at 1GHz | Dual ARM® Cortex ® -A53 cores at 1GHz | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| RAM | 512 MB | 512 MB | 512 MB | 512 MB |
| Max Power Consumption | 18 W | 18 W | 10W | 26 W |
| Weight | 2.59 kg | 0.932 kg | 0.409 kg | 4 kg |
