Brand
Manufacturer part number
PR1KFG30
Warranty
?
12 months
EAN
0708747440799
Teltonika GNSS Antenna 2dBi, Adhesive, Fakra C Female
Certified Teltonika Engineers
Official Teltonika Distributor
in stock
?
7.34 €
7.34 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailed description
PR1KFG30 is a GNSS adhesive antenna with RHCP polarization. The antenna works in the frequency range 1575.42-1602 MHz with 2 dBi gain. PR1KFG30 is equipped with high-frequency coaxial RG174 cable with Fakra C Female straight connector. The cable is 3 m long. Mounting method: adhesive.
Technical Specs / Datasheet
Specifications
Antenna
Antenna Design
Roof
Polarization
RHCP
GPS Antenna Frequency Range & Gain
1575.42 MHz 2 dBic (Zenith)
Cable Length
3 m
VSWR
< 1.5
Impedance
50 Ω
Connectors
RF Connectors
(1) Fakra C Female
Physical Parameters
Color
Black

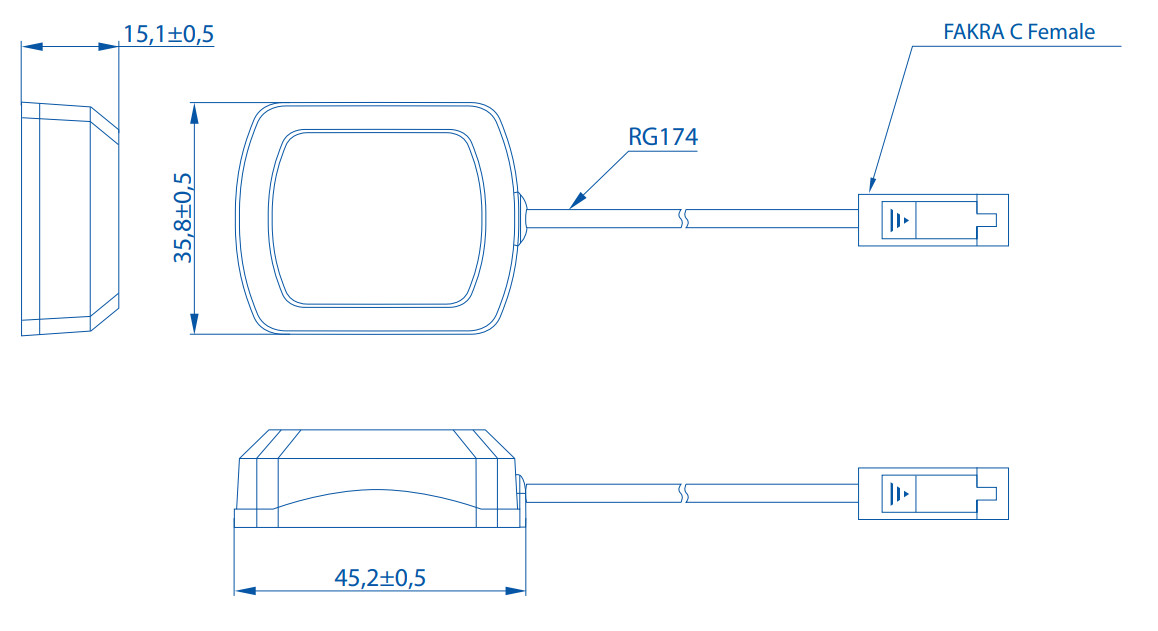

Dimensions
45 x 36 x 15 mm
Operating Temperature
-40 °C to 85 °C
Mounting Method
Adhesive
