Brand
Manufacturer part number
PR1US540
Warranty
?
12 months
EAN
4779051840632

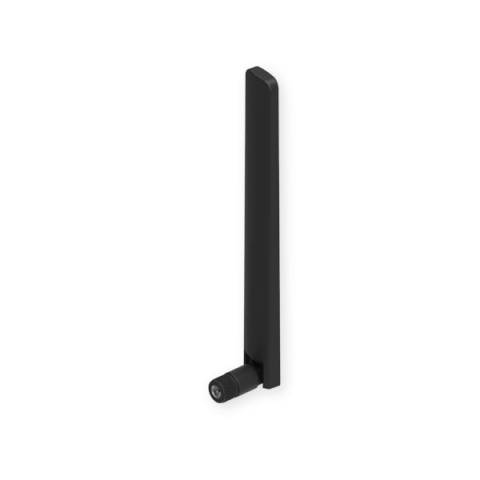

Teltonika 5G Mobile SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
in stock
?
3.55 €
3.55 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailed description
Seamless 5G Coverage
The Teltonika 5G Mobile SMA Antenna is a high-performance omnidirectional antenna designed for use with 5G mobile devices. It features a 4.5 dBi gain, providing strong signal reception even in areas with weak signal strength. This makes it a versatile option for use in a variety of applications, such as mobile broadband, IoT, and M2M communications. The antenna has a linear polarization and a VSWR of 3.0, ensuring minimal signal loss. PR1US540 is made from high-quality materials and is IP33 rated, making it resistant to dust and water.
Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
5G (NR)
Antenna
Antenna Design
Omni
Mobile Antenna Frequency Range & Gain
0.617 - 0.960 (GHz) 4.5 (dBi), 1.41 - 1.61 (GHz) 4.5 (dBi), 1.71 - 2.69 (GHz) 4.5 (dBi), 3.3 - 7.125 (GHz) 4.5 (dBi)
Polarization
Linear
VSWR
< 3
Impedance
50 Ω
Connectors
RF Connectors
(1) SMA Male
Physical Parameters
Color
Black
Ingress Protection Code
IP33
Weight
0.024 kg
Operating Temperature
-40 °C to 85 °C
Environment
Indoor
Mounting Method
Screw
Package Contains
Units
1 pcs
