Manufacturer part number
RBSXTsq5HPnD
Warranty
?
12 months
EAN
4752224004611
MikroTik SXTsq 5 hp
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description
High Power Small-Size 16dBi 5GHz Dual Chain Integrated CPE/Backbone

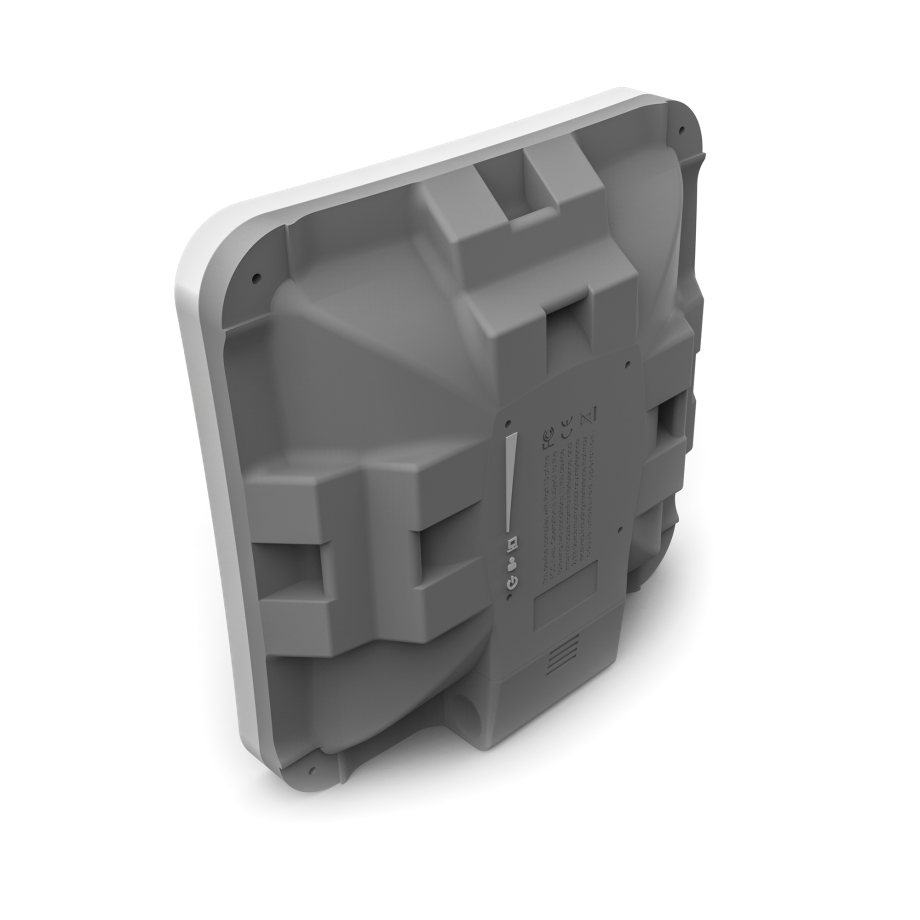

The SXTsq 5 is a compact and lightweight outdoor wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq 5 retains a 16 dBi antenna like the previous model SXT 5, yet the antenna design has been improved. The physical size has been dramatically reduced - the SXTsq is two times thinner. Higher TX power allows reaching longer distances than SXTsq Lite 5.
The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100 Mbit ethernet port. There is also an easily accessible grounding connection to protect it against lightning.
Technical Specs / Datasheet
Compatible products
Specifications
Wireless Network
Standards
802.11a/n
MIMO
5GHz 2x2
5GHz Radio Rate
300 Mbps
Antenna
Antenna Design
Panel
Wireless Antenna Frequency Range & Gain
5.150 - 5.875 (GHz) 16 (dBi)
Beamwidth
23 °
Polarization
Dual Linear
Interfaces
RJ45 Ports
(1) 100 Mbps
Management
Ethernet
System Specification
Chipset
AR9344, 1 core, AR9344
RAM
64 MB
Storage Memory
16 MB
Power
Power Method
24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
10 - 28 V DC
Max Power Consumption
7 W
PSU / POE adapter
24 V DC 0.38 A
Physical Parameters
Color
White
Material
Plastic
Ingress Protection Code
IP54
Dimensions
129 x 129 x 34 mm
Operating Temperature
-40 °C to 70 °C
Environment
Outdoor
Mounting Method
Pole Mount
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 4
