MikroTik CubeSA 60 Pro ac

60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. The MikroTik Cube 60Pro series leverages the latest advancements in wireless technology to offer a cost-effective alternative to traditional cabling, combining the power of 60 GHz networking with the convenience of wireless solutions.

The MikroTik CubeSA 60Pro ac known by Manufacture Part Number: CubeG-5ac60ay-SA stands as a testament to the evolution of outdoor wireless connectivity, merging traditional robustness with the latest in high-speed wireless technology. This device is tailored to cater to a range of applications, from urban connectivity to remote event management, ensuring high performance and reliability. Embracing the power of 60 GHz technology, the CubeSA 60Pro ac delivers fiber-like speeds and stability, which traditionally only wired solutions could offer. The integration of the 802.11ay standard allows the device to achieve even greater distances, improved stability, and enhanced speed, taking 60 GHz networking to a new level of convenience and efficiency. This makes the CubeSA 60Pro ac an ideal solution for scenarios that demand high-capacity, high-speed connections without the logistical complexity and cost of cable installations.

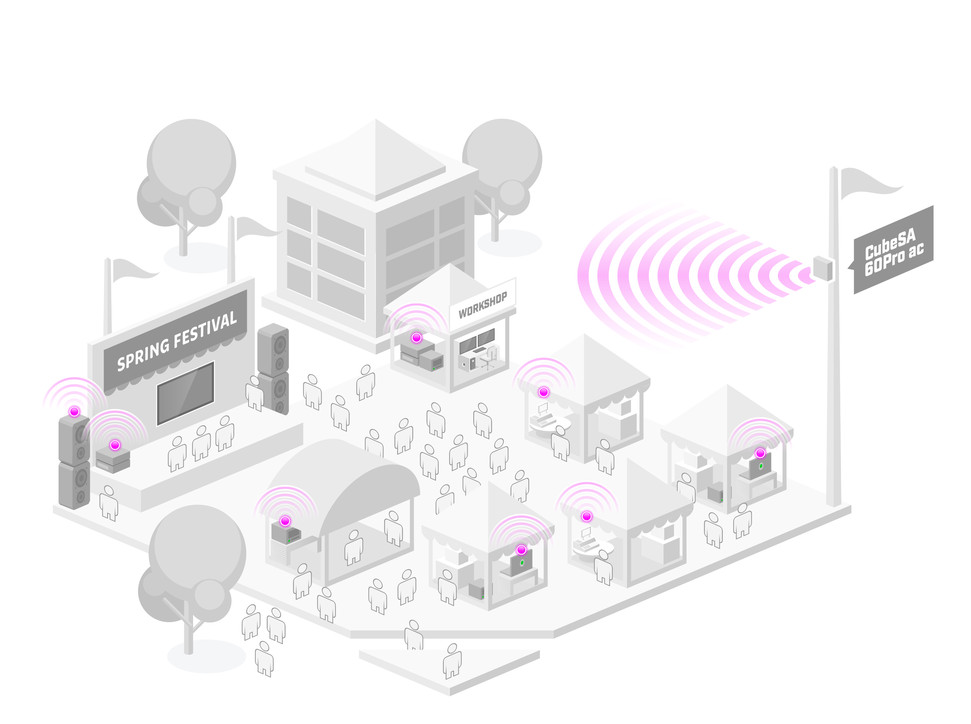

The CubeSA 60Pro ac is equipped with a sector antenna, making it highly effective in point-to-multipoint configurations. Capable of reaching distances around 600 meters, this device excels in managing connectivity for various outdoor events such as live shows, festivals, workshops, construction sites, and temporary medical facilities like pop-up vaccination clinics. For environments that require even greater reach, pairing with devices like the MikroTik nRAY can extend coverage up to 800 meters, providing versatile and expansive network setups.

The CubeSA 60Pro ac is powered by an ARM 32bit IPQ-4019 CPU, with 4 cores that operating at 716 MHz to efficiently handle network traffic and optimize power consumption. Accompanied by 256 MB of RAM and 64 MB of FLASH storage, the device runs on RouterOS, MikroTik's advanced operating system that provides a wide range of configuration options and features. This combination of hardware and software ensures that the device can manage multiple high-demand applications simultaneously.

The device operates on the 5 GHz frequency band, supporting the 802.11a/n/ac standards with a maximum data rate of 433 Mbit/s. It features a single wireless chain, optimized by an 11.5 dBi antenna gain, ensuring strong and stable signal coverage. The CubeSA 60Pro ac is equipped with the IPQ4019 chip, enabling Wi-Fi 5 technology that is capable of delivering high-speed wireless connectivity with enhanced efficiency.

For advanced positioning and time-synchronization applications, the CubeSA 60Pro ac integrates GPS technology, broadening its usability in complex network deployments that require precise location data. It also meets rigorous international standards with certifications from CE, FCC, IC, EAC, and ROHS, ensuring compliance with global regulations for safety and environmental impact.

To address the challenges posed by adverse weather conditions that can affect 60 GHz signals, the CubeSA 60Pro ac features an automatic 5 GHz backup connection. This failover mechanism ensures continuous operation by switching to a reliable 5 GHz range whenever the 60 GHz frequency faces disruptions, thereby minimizing downtime and maintaining seamless connectivity.

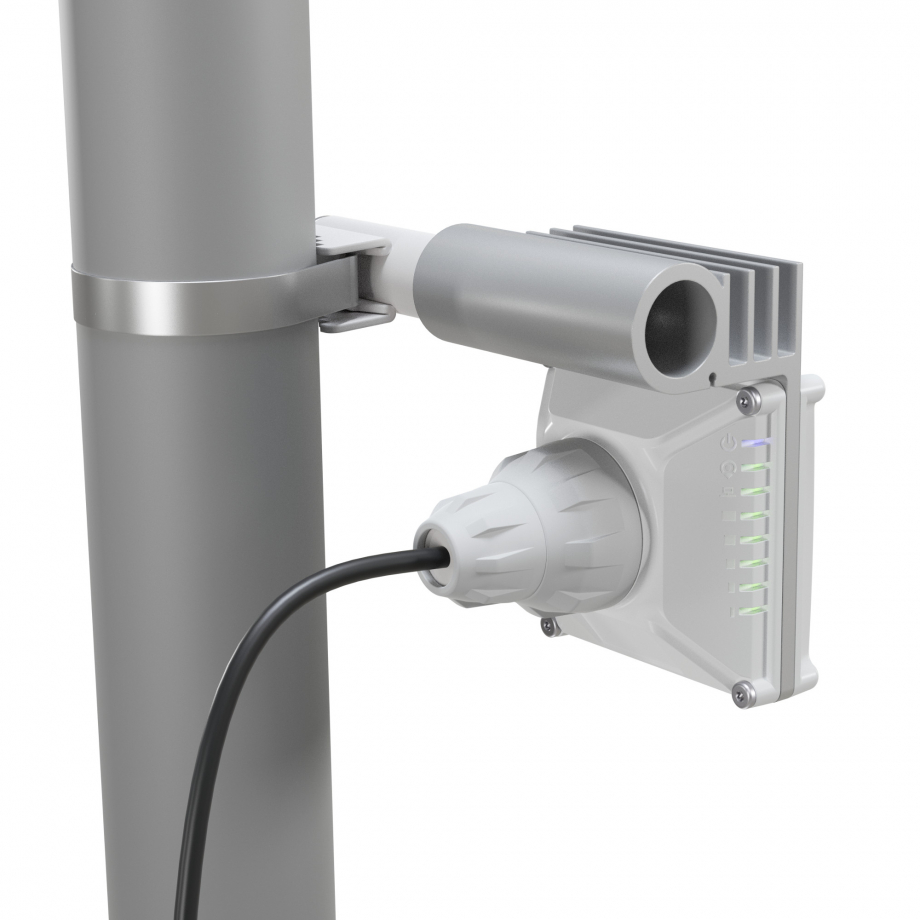

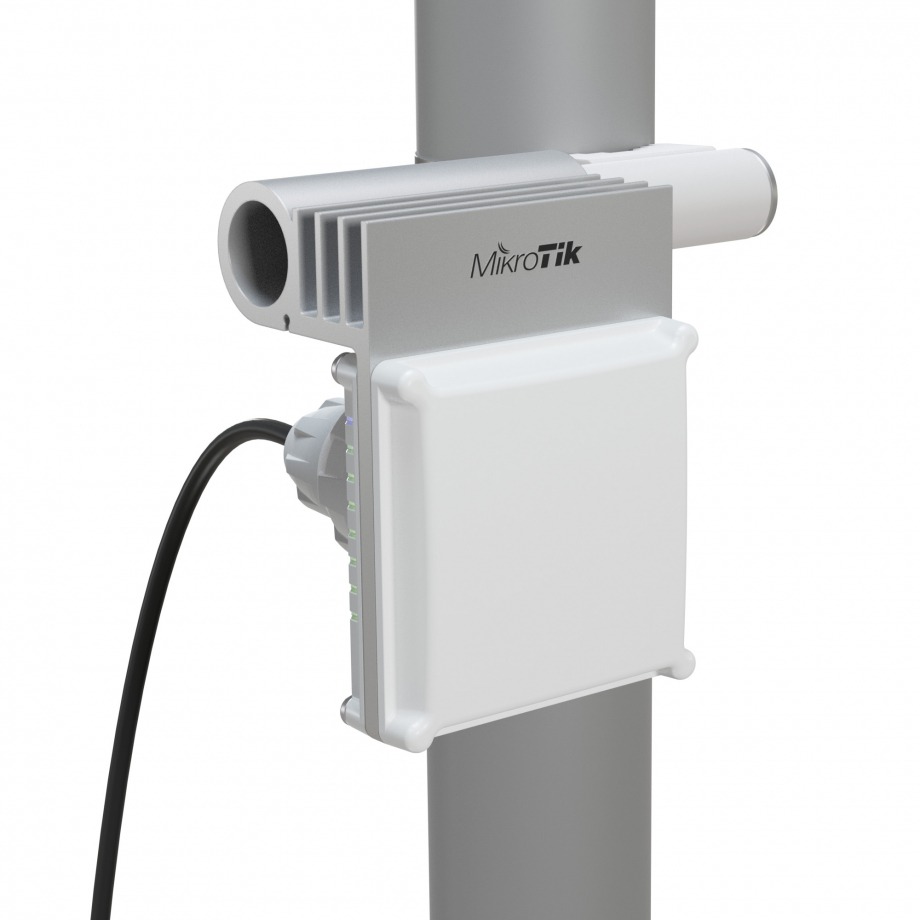

The CubeSA 60Pro ac has undergone a design upgrade to include a strong metal base, enhancing both the device's mounting options and its cooling efficiency. The compact and unobtrusive cube form-factor is not only practical but also discreet, making it ideal for settings where minimal visual impact is desired. This robust build ensures that the device can withstand rigorous outdoor conditions while maintaining a low profile.

Designed for outdoor installation, the CubeSA 60Pro ac is housed in a compact enclosure measuring 115 x 211 x 90 mm and has an IP54 rating, making it resistant to dust and water splashes. It operates reliably in extreme temperatures ranging from -40°C to 70°C, and boasts a mean time between failures (MTBF) of approximately 200,000 hours at 25C, ensuring long-term performance with minimal maintenance.

The CubeSA 60Pro ac includes one Gigabit Ethernet port, providing a high-speed wired connection option that complements its wireless capabilities. It supports Power over Ethernet (PoE) with an input voltage range of 18-48 V, compatible with 802.3af/at standards, which simplifies installation by allowing both power and data to be delivered over a single cable. The device's maximum power consumption is only 13 W, emphasizing its energy efficiency.
