Brand
Manufacturer part number
RX09S
Warranty
?
12 months
EAN
5907772035269
QuRouter X09S
in stock
?
-14% 392.03 €
339.00 €
-14% 392.03 €
339.00 €
Detailed description

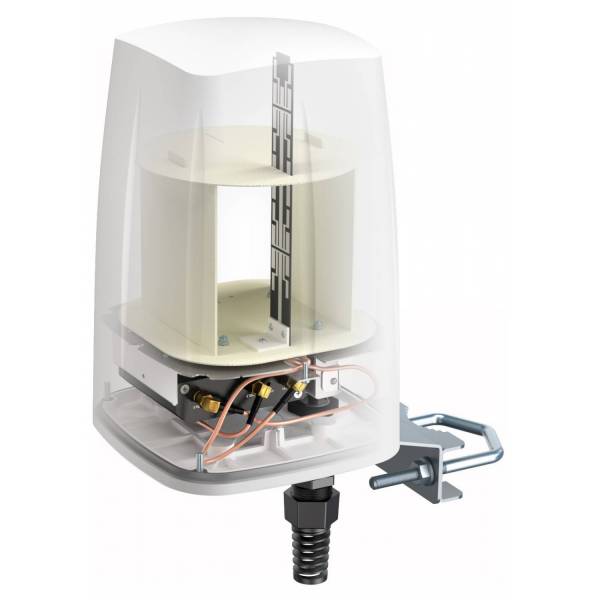

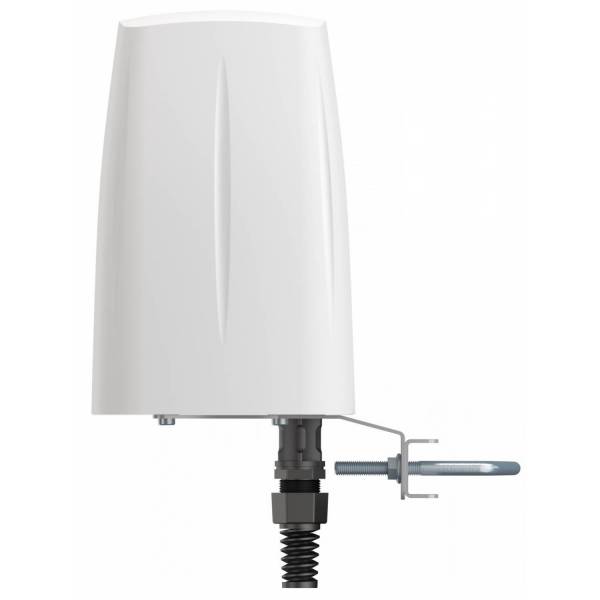

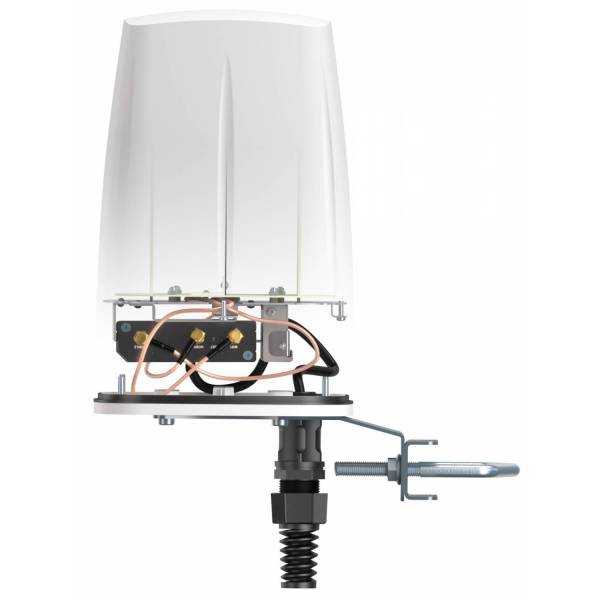

QuRouter X09S is a perfect outdoor LTE Cat 6 router with embedded GNSS/GPS module. Equipped with Dual-SIM with 4G connectivity redundancy failover. Integrated with omnidirectional LTE MIMO 2x2 antenna and GPS antenna. This device is perfect for advanced Industrial and Enterprise applications. Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition.
Technical Specs / Datasheet
Specifications
Mobile Network
Mobile Network Generation
3G (UMTS), 4G (LTE)
LTE Category
Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Dual SIM
Antenna
Antenna Design
Dome
Mobile Antenna Frequency Range & Gain
0.694 - 0.96 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Beamwidth
360 °, 35 ° Vertical
Polarization
Vertical
VSWR
< 2.0
Impedance
50 Ω
Interfaces
RJ45 Ports
(4) 1 Gbps
Management
Ethernet
System Specification
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB
Storage Memory
256 MB
Power
Power Method
24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 50 V DC
Max Power Consumption
9 W
Power Connector
4-pin, 3 mm
Physical Parameters
Color
White
Material
Galvanized steel, Aluminium, ABS Plastic
Ingress Protection Code
IP67

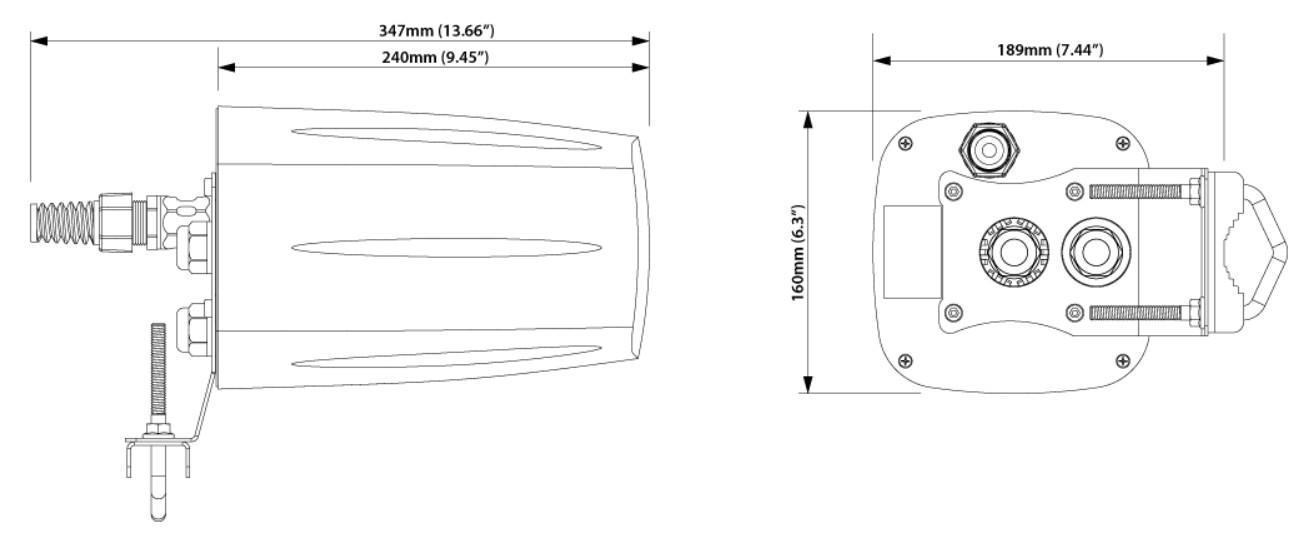

Dimensions
160 x 160 x 240 mm
Weight
1.5 kg
Operating Temperature
-40 °C to 75 °C
Environment
Outdoor
Mounting Method
Pole Mount
