Brand
Manufacturer part number
RX11S
Warranty
?
12 months
EAN
5907772035214
QuRouter X11S
in stock
?
-15% 456.87 €
389.00 €
-15% 456.87 €
389.00 €
Detailed description

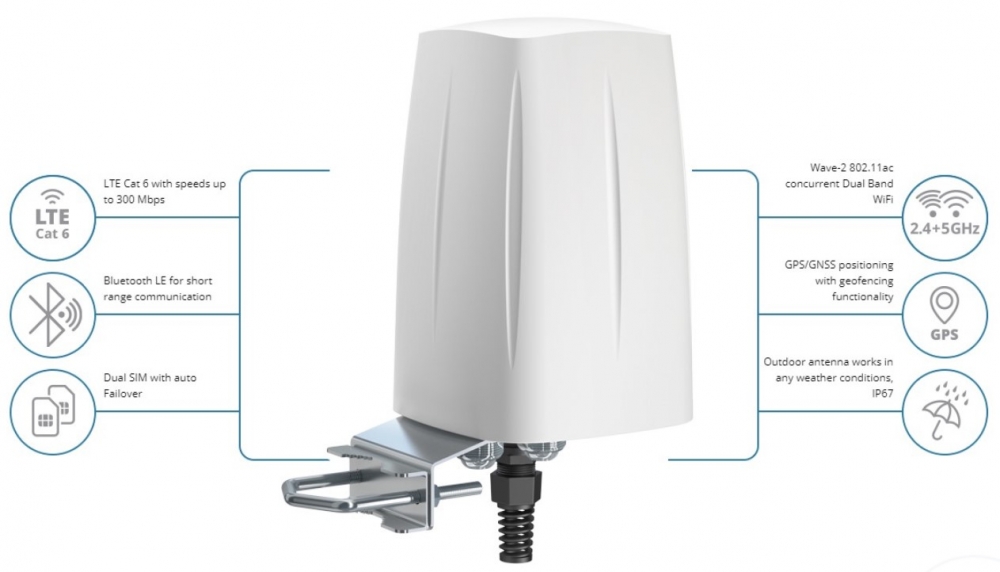

QuRouter X11S is a perfect outdoor LTE Cat 6 router with embedded concurrent dual band AC Wi-Fi Access Point/Hotspot for mobile and fixed installations. Equipped with Dual-SIM, Bluetooth LE and GPS/GNSS. RUTX11. Integrated with omnidirectional antennas to all wireless interfaces. This device is perfect for advanced Industrial and Enterprise applications. Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition.
Technical Specs / Datasheet
Specifications
Mobile Network
Mobile Network Generation
3G (UMTS), 4G (LTE)
LTE Category
Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Dual SIM
Wireless Network
Standards
802.11b/g/n, 802.11ac Wave2
2.4GHz Radio Rate
300 Mbps
5GHz Radio Rate
867 Mbps
Antenna
Antenna Design
Dome
Wireless Antenna Frequency Range & Gain
2.40 - 2.50 (GHz) 6 (dBi)
Mobile Antenna Frequency Range & Gain
0.694 - 0.96 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Beamwidth
360 °, 35 ° Vertical
Polarization
Vertical
VSWR
< 2.0
Impedance
50 Ω
Interfaces
RJ45 Ports
(4) 1 Gbps
USB Ports
(1) USB-A 2.0
Management
Ethernet
Bluetooth
4.0 LE
System Specification
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB
Storage Memory
256 MB
Power
Power Method
24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 50 V DC
Max Power Consumption
16 W
Power Connector
4-pin, 3 mm
Physical Parameters
Color
White
Material
Galvanized steel, Aluminium, ABS Plastic
Ingress Protection Code
IP67
Dimensions
160 x 160 x 240 mm
Weight
1.5 kg
Operating Temperature
-40 °C to 75 °C
Environment
Outdoor
Mounting Method
Pole Mount
