MikroTik NetMetal ax

The MikroTik NetMetal series represents a versatile and robust suite of outdoor wireless solutions designed to excel as Access Points (AP), Backbone links, or Customer Premises Equipment (CPE). Each model is equipped with features that support a wide range of applications and network configurations, tailored to meet the demands of complex and dynamic network environments. As Access Points, the NetMetal series is ideal for providing high-capacity wireless coverage. Equipped with powerful radios and dual-band capabilities, these devices can serve high-density areas with reduced interference and optimal bandwidth distribution. This makes them perfect for deploying in busy urban settings or large public venues where reliable, high-speed wireless access is crucial.

In Backbone configurations, the NetMetal series shines by establishing robust point-to-point connections necessary for linking different network segments or extending the network across geographical barriers. With high-output power radios and options for gigabit Ethernet and fiber optic connectivity via SFP ports, these devices ensure high-speed, stable, and reliable data transmission over long distances. This capability is essential in scenarios requiring the integration of remote areas into a central network system or creating high-capacity links between data centers. As CPE, the NetMetal series provides reliable, high-performance connectivity to end-users. This setup is especially valuable in areas where traditional wired broadband is unavailable or unreliable. The flexibility to incorporate 3G/4G LTE modules via the miniPCIe slot allows for seamless internet access, ensuring continuous connectivity. Furthermore, the robust, weather-resistant design of the NetMetal series guarantees long-lasting operation under adverse environmental conditions, making these devices ideal for installation at customer premises in rural or challenging urban environments.

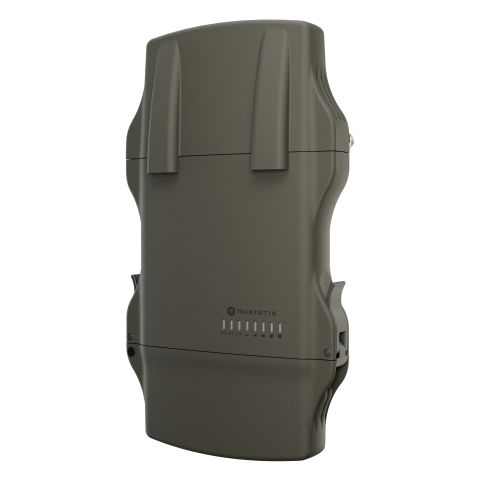

The MikroTik NetMetal ax is a revolutionary outdoor wireless access point built to conquer even the most challenging environments. This rugged device delivers exceptional Wi-Fi 6 performance, exceptional durability, and advanced features. Connect remote buildings, warehouses, or outdoor spaces with reliable Wi-Fi coverage. The NetMetal ax boasts powerful dual-band radios and the ability to connect external antennas for extended range of up to 30 kilometers with compatible antennas.

Experience next-generation Wi-Fi 6 connectivity with the NetMetal 5 ax. It supports both 2.4 GHz and 5 GHz bands, delivering exceptional speeds and improved network stability for connected devices. The NetMetal ax offers a Gigabit Ethernet port for standard wired connections and an SFP+ port for fiber optic connectivity for high-bandwidth applications where distance is a factor. A modern dual-core ARM CPU ensures smooth operation under heavy loads, efficiently handling complex network tasks, routing, and security features.

Expand the functionality of NetMetal ax by adding an optional LTE modem for cellular internet backup or other miniPCIe cards, depending on your specific needs. Safeguard your network with features like VLANs, port security, and access control lists (ACLs) to prevent unauthorized access, isolate network traffic, and enhance overall network security. The NetMetal 5 ax runs on MikroTik's RouterOS, a powerful operating system offering granular control over routing, security, and network management. You can configure and manage the device easily through the intuitive RouterOS interface or the convenient MikroTik mobile app.

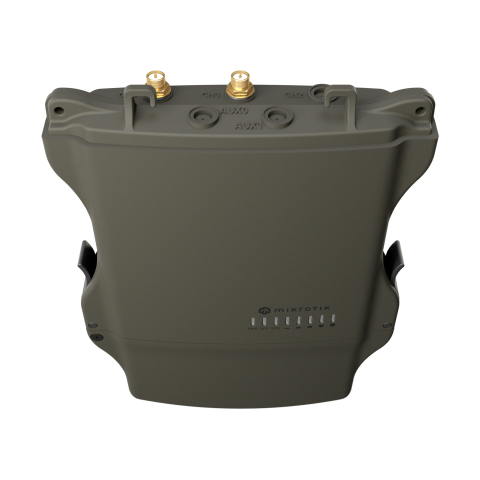

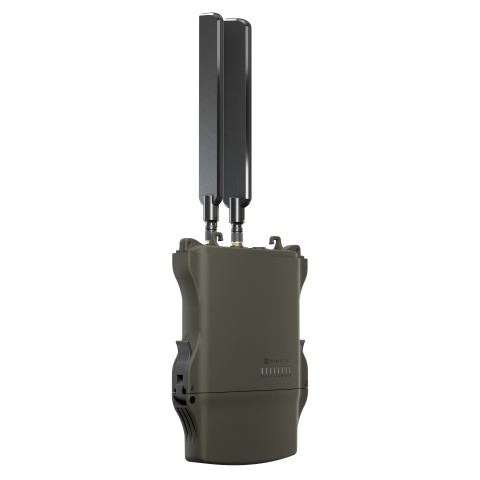

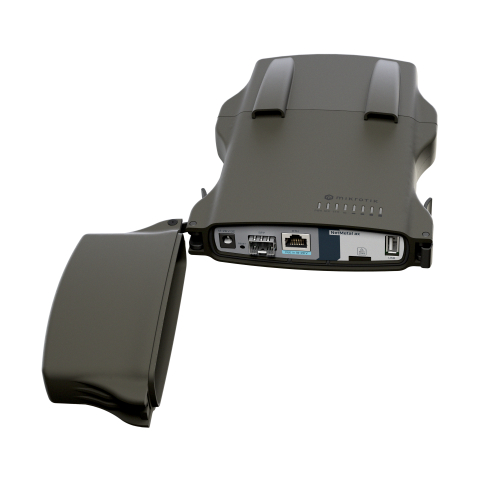

Engineered to withstand harsh environments, the NetMetal ax features an IP66 weatherproof rating, protecting it from dust, rain, snow, and extreme temperatures (-40°C to 70°C). Its robust metal casing and high-quality components ensure reliable operation in demanding situations. Despite its robust build, the access point features a convenient one-handed opening mechanism for effortless setup and maintenance. With two RP-SMA connectors, the NetMetal ax allows you to connect external antennas for extending your network reach. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as HGO-antenna-OUT (sold separately). It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band.
