MikroTik LHG 60G

The MikroTik LHG 60G with Manufacture Part Number: RBLHGG-60ad is a compact and powerful wireless device designed to provide high-speed backhaul connections in various networking environments. Engineered with cutting-edge technology, this product is ideal for establishing fast, reliable point-to-point or point-to-multipoint links in the 60 GHz frequency band.

The LHG 60G meets stringent international standards, holding certifications from CE, FCC, IC, EAC, and ROHS. This compliance guarantees that the device adheres to global operational and safety standards, making it a dependable option for global deployment.

The LHG 60G is built on an ARM 32bit architecture and powered by an IPQ-4019 CPU with four cores, ensuring robust performance with a nominal frequency of 716 MHz. The device is equipped with 256 MB of RAM and 16 MB of FLASH storage, supporting advanced operations under MikroTik's RouterOS. The system's durability is evidenced by its mean time between failures (MTBF) rating of approximately 200,000 hours at 25°C, making it a reliable choice for demanding applications.

The LHG 60G operates effectively in environments where the 2 GHz and 5 GHz wireless spaces are congested and unreliable, offering a streamlined and powerful 60 GHz solution. The device can connect up to eight units to a single 60 GHz access point, providing a smooth and efficient networking experience over distances. The effective point-to-point distance capability reaches up to 1500 meters, while the point-to-multipoint configuration supports distances up to 800 meters.

This device excels in delivering high-speed data transmission, supported by IPsec hardware acceleration that enhances security for encrypted links. The LHG 60G is not just for point-to-point setups; it serves as a 60GHz CPE in Point-to-Multipoint setups for connections up to 800 meters with 60GHz base stations like the MikroTik wAP60G AP or wAP 60Gx3 AP. It features a Gigabit Ethernet port that facilitates speeds up to 1 Gbps, ensuring rapid data transfer rates up to 2 Gbps when connected with multiple units.

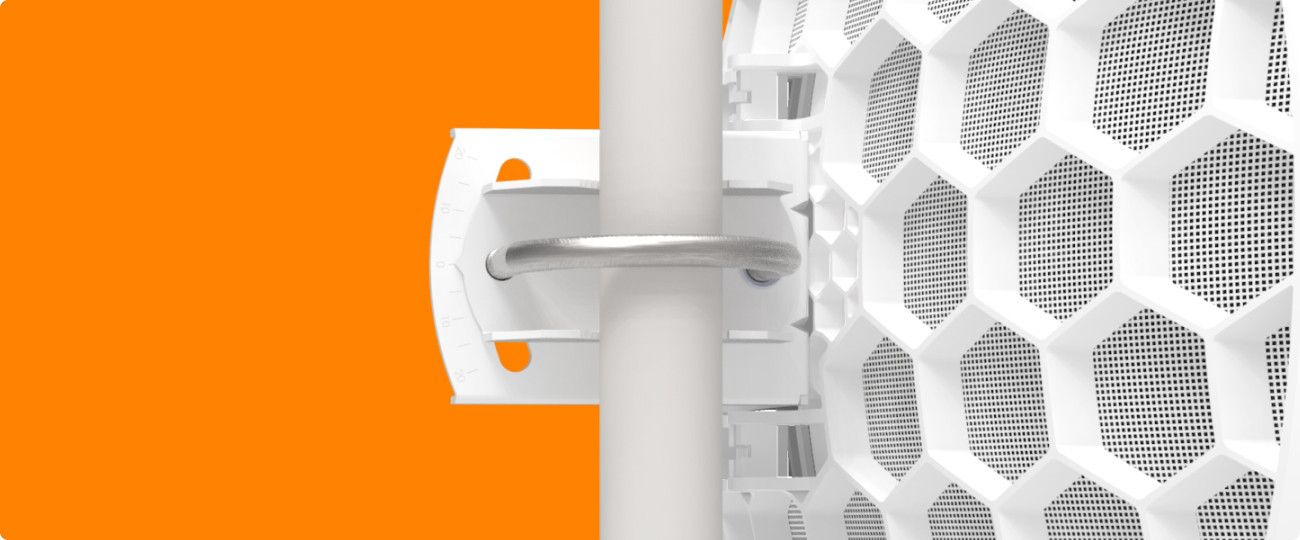

Designed to withstand harsh environmental conditions, the LHG 60G operates reliably within a temperature range of -40°C to 70°C. Its IP55-rated enclosure provides protection against dust ingress and low-pressure water jets, ensuring continued performance in diverse outdoor settings. The grid design of the LHG 60G not only ensures protection against wind but also allows it to withstand extreme temperatures ranging from -40°C to +70°C. The integrated antenna element eliminates loss on cables, enhancing the unit’s overall efficiency and signal quality. In addition, each LHG 60G unit is shipped with an Aim tool for easy precision alignment and a strong metal mount, facilitating secure and optimal positioning.

The LHG 60G is powered through a single PoE-in (Power over Ethernet) port, which supports a voltage range of 12-57 V and adheres to the 802.3af/at standard. This feature simplifies installation by reducing cable clutter and eliminating the need for separate power sources. The device's maximum power consumption is an efficient 5 watts, thanks to its passive cooling system, which ensures it runs quietly and without thermal distractions.
