MikroTik hAP ac3 LTE6 kit

This item has been discontinued

Manufacturer part number

RBD53GR-5HacD2HnD&R11e-LTE6

Warranty

?
12 months

EAN

4752224005328

We recommend to use the product presented below

MikroTik Chateau LTE6

MikroTik Chateau LTE6

D53G-5HacD2HnD-TC&FG621-EA

Detailed description

A Wireless Dual-Band Router with LTE Support and 5 Gigabit Ethernet Ports.

The right choice for most homes!
Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

The Freedom of LTE

hAP ac³ LTE6 kit features the newest CAT6 LTE modem. It enables carrier aggregation, allowing you to use the LTE connection with speed up to 300 Mbps. It works by using multiple LTE bands at the same time. A huge advantage when there are a lot of LTE users in the area. Depending on the service provider, the Internet speed doubling after switching to CAT6.
/images/catalogue/description/802/rbd52g5hacd2hndtc_desc-6087f0cd801b3-1944x456.jpg

Function, Form, Versatility

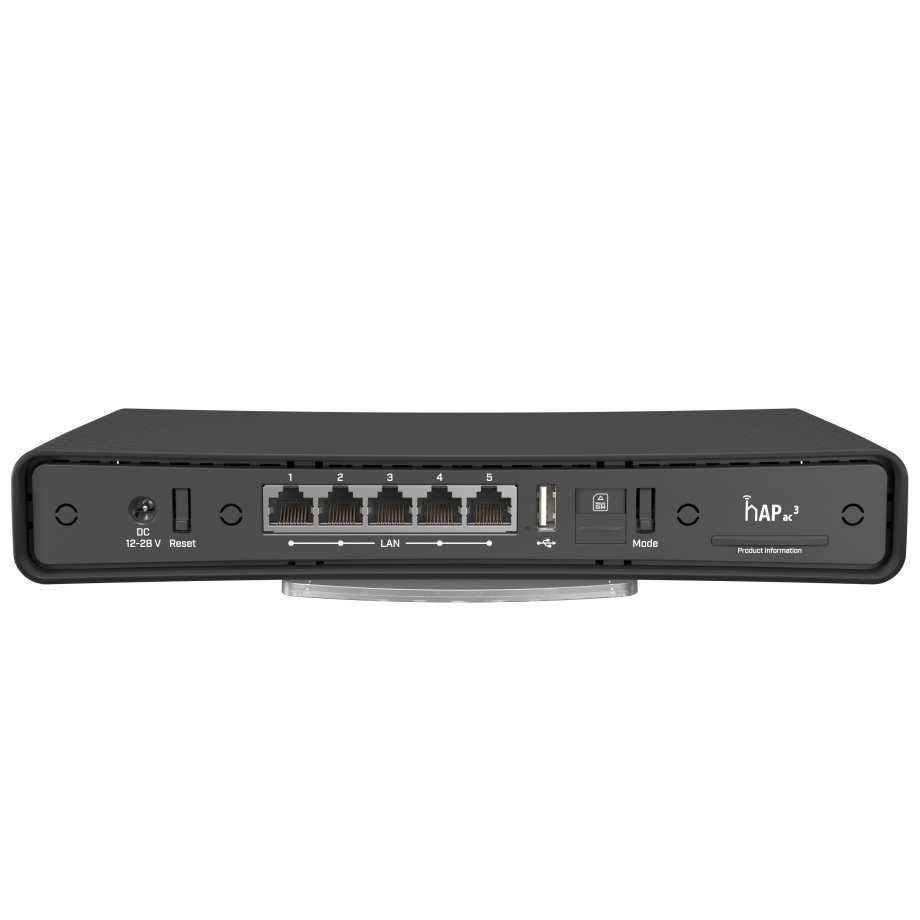

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ LTE6 kit can satisfy even the biggest and most demanding households. There is a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.
/images/catalogue/description/802/rbd52g5hacd2hndtc_desc1-6087f1458fe7e-1960x427.jpg

Reliable Connection for All Your Devices

Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.

Specifications

Mobile Network

Mobile Network Generation

2G (GSM), 3G (UMTS), 4G (LTE)
LTE Category

Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands

1 (2100MHz), 2 (1900MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 12 (700MHz), 17 (700MHz), 20 (800MHz), 25 (1900MHz), 26 (850MHz)
TDD LTE Frequency Bands

38 (2600MHz), 39 (1900MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot

Micro-SIM

Wireless Network

Standards

802.11a/b/g/n/ac
MIMO

2.4GHz 2x2, 5GHz 2x2
2.4GHz Radio Rate

300 Mbps
5GHz Radio Rate

867 Mbps

Antenna

Antenna Design

Omni
Wireless Antenna Frequency Range & Gain

2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 5.5 (dBi)
Mobile Antenna Frequency Range & Gain

0.700 - 2.600 (GHz) 4 (dBi)

Interfaces

RJ45 Ports

(5) 1 Gbps
USB Ports

(1) USB-A 2.0
Management

Ethernet, Wi-Fi
PCI Express

(1) MiniPCI-e

System Specification

Chipset

IPQ-4019, 4 core, 716 MHz
RAM

256 MB
Storage Memory

16 MB

Power

Power Method

AC/DC Adapter
Power Supply

External AC/DC Adapter
Supported Input Voltage

12 - 28 V DC
Max Power Consumption

20 W
Power Connector

DC Plug 2.1 x 5.5 mm
PSU / POE adapter

24 V DC 1.2 A

Physical Parameters

Color

Black
Ingress Protection Code

IP20
Dimensions

251 x 129 x 39 mm
Operating Temperature

-30 °C to 60 °C
Environment

Indoor
Form Factor

Desktop
Mounting Method

Wall Mount, Tabletop

Package Contains

External Power Supply

Included

Software

MikroTik

RouterOS Level 4
