Brand
Manufacturer part number
AOA-915-5ACM
Warranty
?
12 months
EAN
4718050307524
Alfa LoRa/HaLow 915MHz Antenna 5dBi N-Male
out of stock
?
9.63 €
9.63 €
Available product variations
Available alternatives
Detailed description

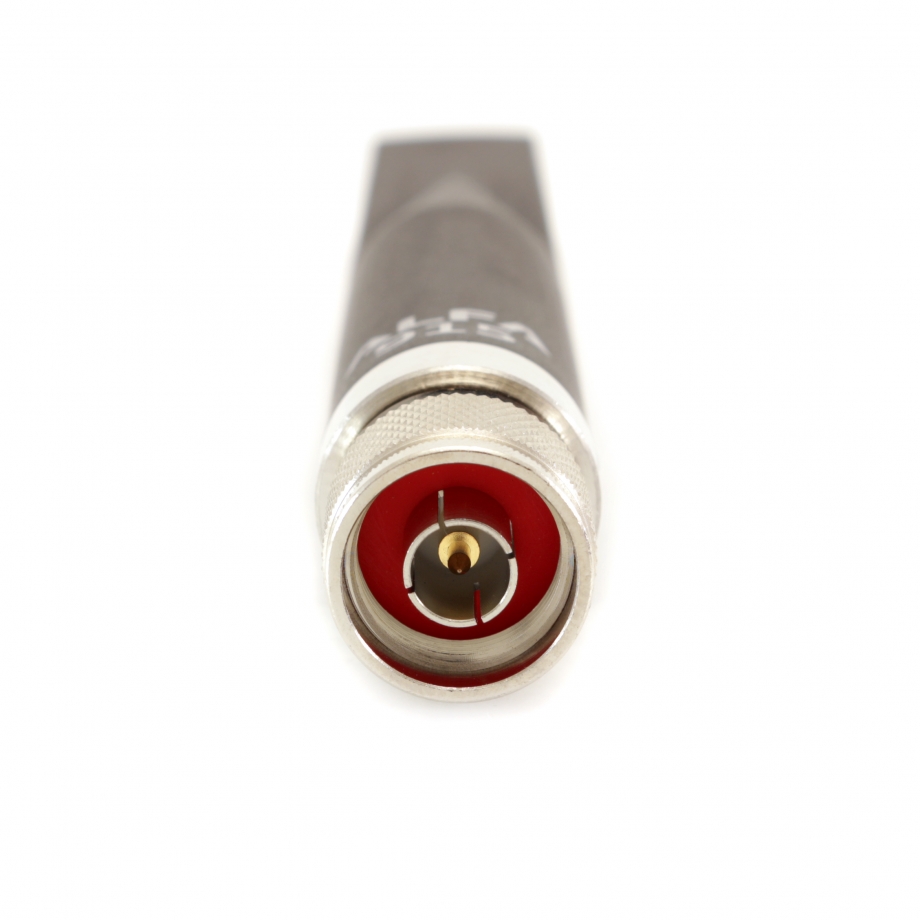

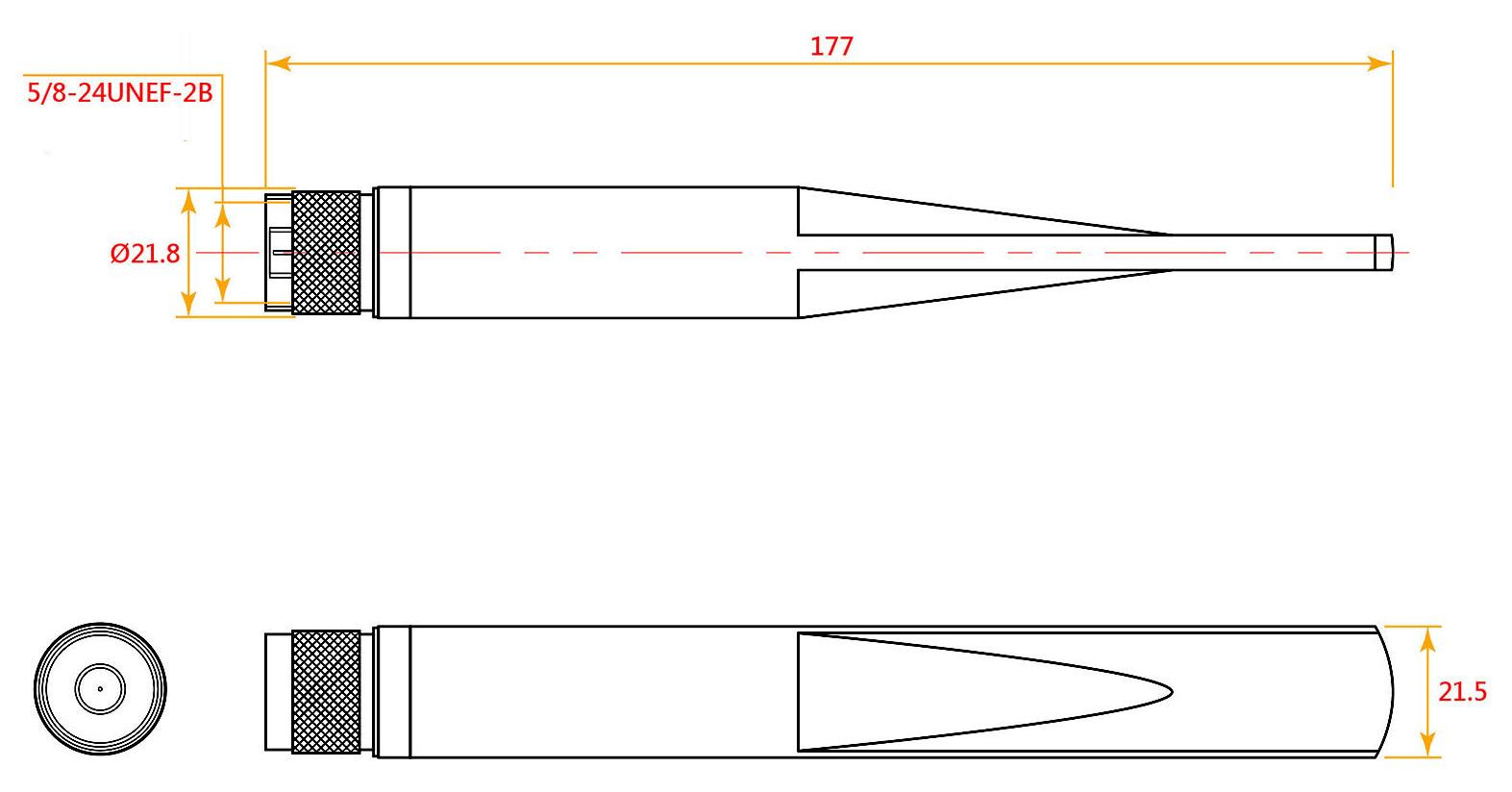

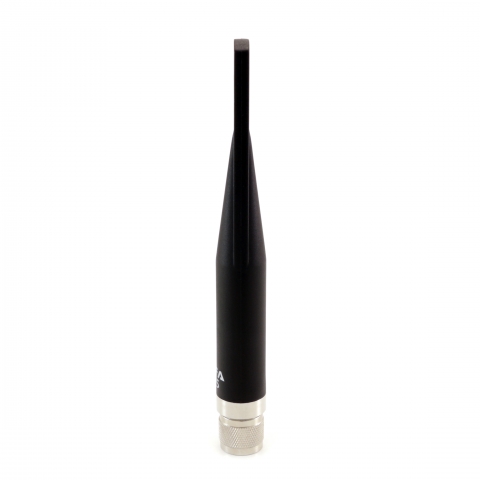

AOA-915-5ACM is an omnidirectional outdoor antenna with 5dBi gain, that operates in 902-928 MHz frequency range and therefore covers LoRa/HaLow/Sigfox frequency at 915 MHz. The antenna is equipped with an N Male connector. The AOA-915-5ACM housing is made of durable weatherproof materials and can be used in difficult environmental conditions. The length of this compact antenna is 18 cm and the diameter is 22 mm.
Compatible products
Specifications
Wireless Network
Standards
802.11ah
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
0.902 - 0.928 (GHz) 5 (dBi)
Beamwidth
360 °
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors
(1) N Male
Physical Parameters
Dimensions
Ø22 x 180 mm
Weight
0.082 kg
Operating Temperature
-40 °C to 85 °C
