Brand
Manufacturer part number
AHPI7292S
Warranty
?
12 months
EAN
4718050307722

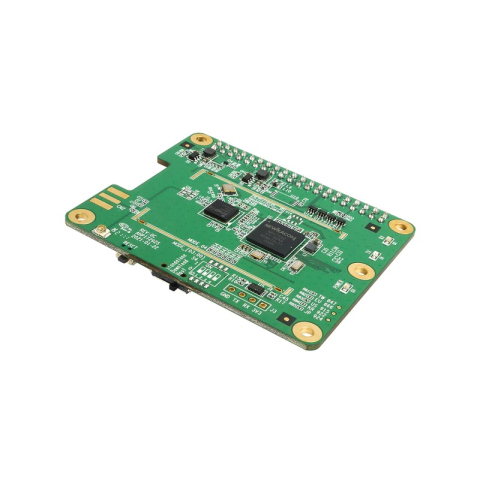

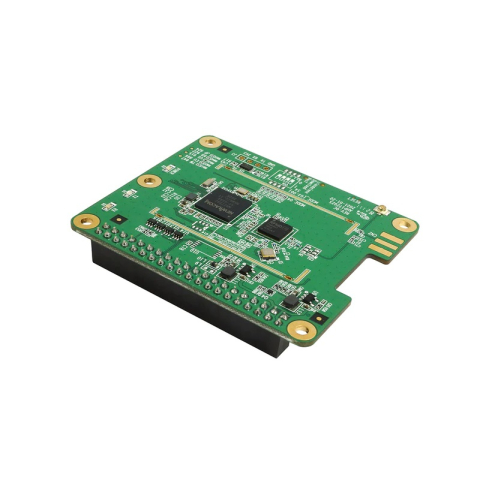

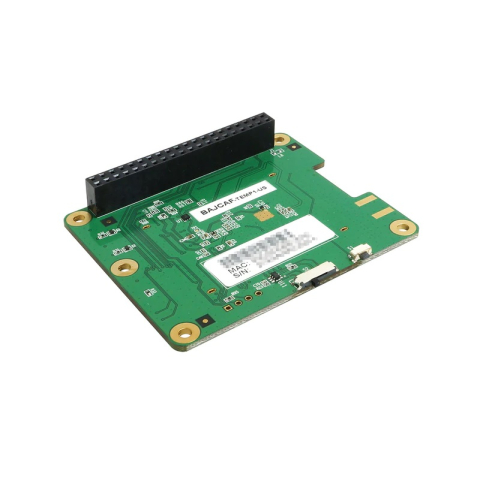

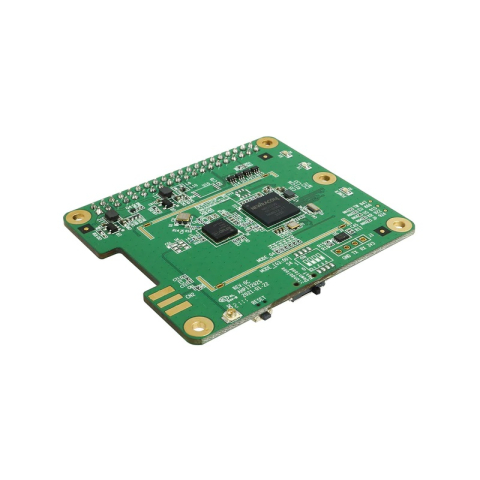

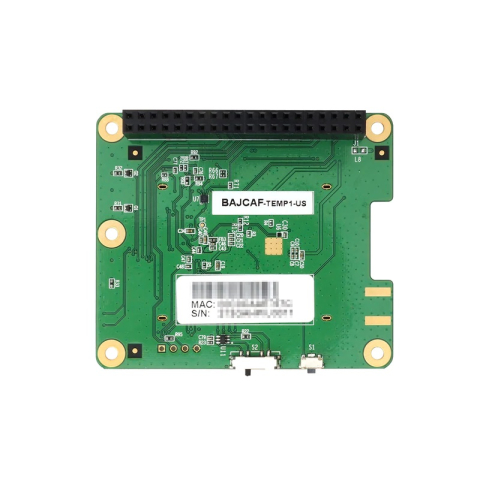

Alfa HaLow Raspberry Pi HAT module
in stock
?
65.28 €
65.28 €
Detailed description
AHPI7292S is the world's first Wi-Fi HaLow™ Raspberry Pi™ HAT module
The AHPI7292S module series allows building long range, ultra-low power Wi-Fi networks in sub 1 GHz license-exempt bands, utilizing the very popular and open platform - the Raspberry Pi™. Wi-Fi HaLow™ enables connectivity for many applications, including sensors and wearables.
With support for standalone and host based modes, up to 15 Mbps data throughput and complete SDK, getting started with this new Wi-Fi standard will be straightforward.
Features:
- Newracom™ NRC7292 WiFi HaLow™ SoC (IEEE 802.11ah draft 8.0 compliant)
- Qorvo™ RFFM6901 front-end
- DIP switch for mode select and connector for UART
- Raspberry Pi™ HAT form factor with 40-pin GPIO connector
- 3× LEDs
Technical Specs / Datasheet
Specifications
Wireless Network
Standards
802.11ah
Connectors
RF Connectors
(1) U.FL
System Specification
Chipset
Newracom™ NRC7292
Physical Parameters
Dimensions
65 × 56 × 10.3 mm
Form Factor
Embedded
Package Contains
External Power Supply
Not Included
