Brand
Manufacturer part number
ARS-NT5B
Warranty
?
12 months
EAN
4718050302543

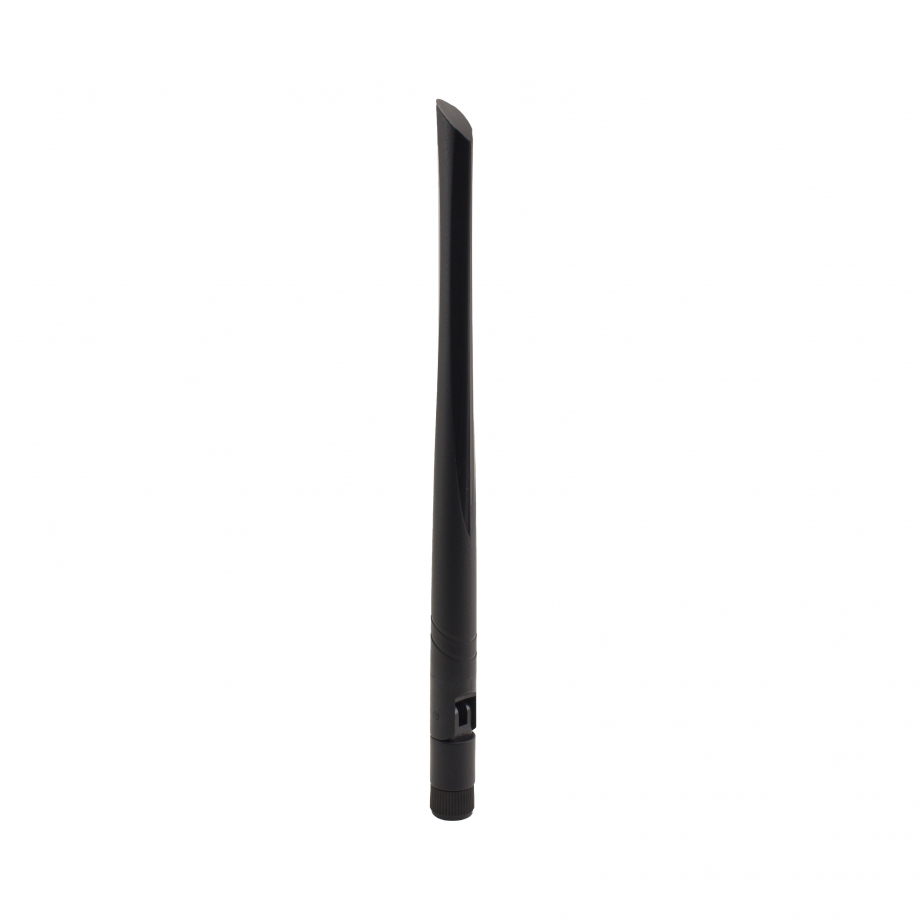

Alfa 2.4/5GHz Indoor Antenna 5dBi RP-SMA Male
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description
Alfa ARS-NT5B is a 5 dBi omni-directional dual band Wi-Fi antenna for use with 802.11ac and 802.11n/g/b networks. It can receive and transmit on both the 2.4 GHz and 5 GHz Wi-Fi bands. This can be used with any brand Wi-Fi adapter or wireless router that uses RP-SMA antenna ports.This is a low cost way to replace a missing Wi-Fi antenna, or upgrade from a lower gain antenna.
Analyzer Test Report
Pattern Test Report
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.483 (GHz) 5 (dBi), 5.15 - 5.875 (GHz) 5 (dBi)
Beamwidth
360 ° Vertical
Polarization
Linear
VSWR
< 1.5
Impedance
50 Ω
Connectors
RF Connectors
(1) RP-SMA Male
Physical Parameters
Dimensions
Ø13 x 196 mm
Operating Temperature
-40 °C to 65 °C
Environment
Indoor
