Alfa Panel Indoor Antenna APA-M25-6E

Detailed description

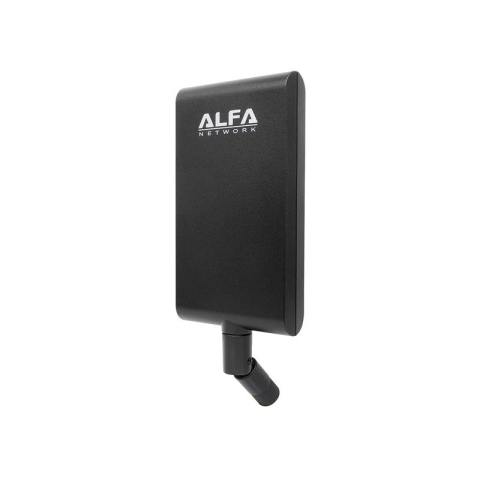

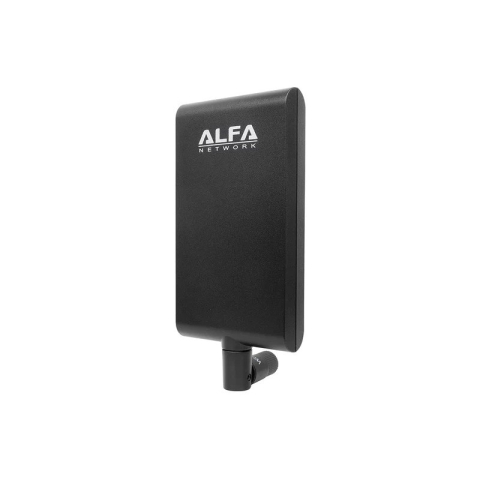

Tri-Band Panel Antenna

The Alfa APA-M25-6E is a powerful tri-band indoor panel antenna designed to supercharge your Wi-Fi experience. Whether you're a demanding gamer, a streamer relying on flawless connectivity, or simply someone who craves a reliable connection for everyday tasks, this antenna delivers exceptional performance across the latest Wi-Fi bands.

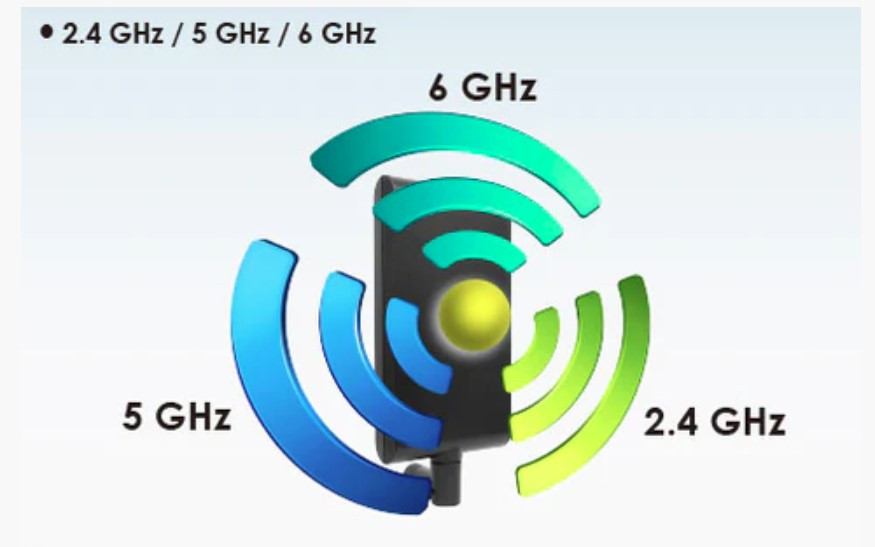

The APA-M25-6E operates on 2.4 GHz, 5 GHz, and the newest 6 GHz Wi-Fi bands, providing unmatched versatility for connecting to a wider range of routers and accessing the latest wireless technologies. Boasting high gain (8 dBi at 2.4 GHz, 10 dBi at 5 GHz, and 9 dBi at 5.9 GHz - 7.125 GHz), the APA-M25-6E significantly amplifies your Wi-Fi signal for a stronger and more stable connection. This is particularly beneficial in areas with weak Wi-Fi signals or crowded networks.
/images/catalogue/description/2135/screenshot_3-660e9ed347674-875x547.jpg

Optimized Performance

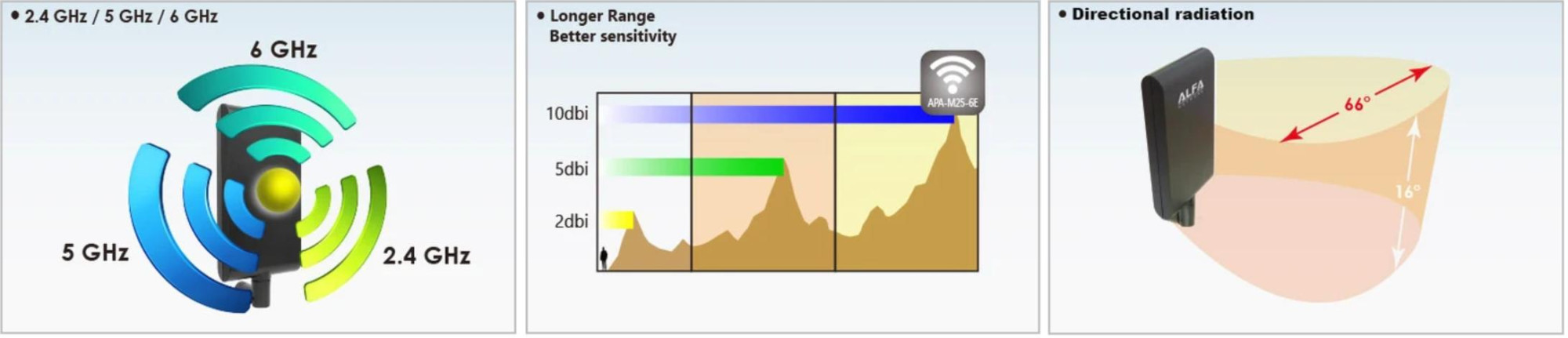

Unlike omnidirectional antennas that broadcast signals in all directions, the APA-M25-6E features a directional design. This allows you to concentrate the antenna's signal strength in a specific direction, ideal for situations where your Wi-Fi router is not located in the same room. By strategically positioning the antenna, you can significantly improve Wi-Fi reception in the desired area.
This antenna seamlessly connects to various Wi-Fi PCI cards, routers, or access points equipped with RP-SMA ports, offering broad compatibility with existing networking equipment. The Alfa APA-M25-6E tri-band panel antenna is the ideal solution for overcoming weak Wi-Fi signals, dead zones, and spotty connections. Experience smoother streaming, faster downloads, lag-free gaming, and a more reliable overall Wi-Fi experience across the latest wireless bands.

Specifications

Antenna

Antenna Design

Panel
Wireless Antenna Frequency Range & Gain

2.4 - 2.5 (GHz) 8 (dBi), 5.15 - 5.875 (GHz) 10 (dBi), 5.975 - 7.125 (GHz) 9 (dBi)
Beamwidth

16 ° Vertical, 66 ° Horizontal
Polarization

Linear, Vertical
VSWR

< 2.5

Connectors

RF Connectors

(1) RP-SMA Male

Physical Parameters

Color

Black
Material

Plastic
Dimensions

167.3 x 66 x 18 mm
Weight

0.072 kg
Environment

Indoor
Mounting Method

Screw
