Ajax DualCurtain Outdoor

The Ajax DualCurtain Outdoor wireless motion sensor detects and prevents intrusion into a guarded area. The detector ignores animals up to 80 cm and birds. Weather factors also do not cause false alarms. The device is protected from unauthorized influence by intruders — varnishing, dismantling, hanging, protected from dust and splashes and operates at air temperatures below 0 ° C. The operating range is adjustable up to 30 meters.

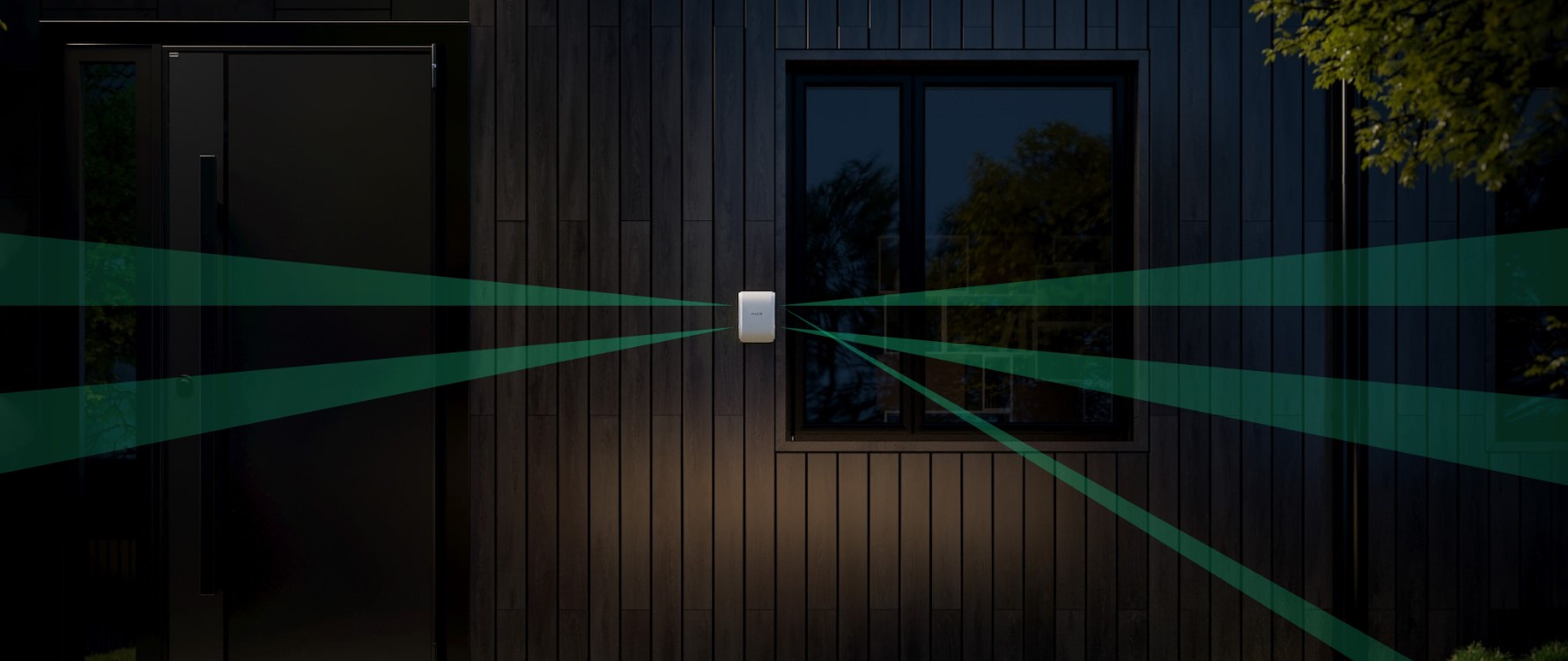

Ajax DualCurtain Outdoor sensor detects human movement using two built-in independent IR sensors that detect the infrared radiation of living beings. A two-factor ELSA algorithm checks the data received by the device. It determines the similarities and spectral patterns between two sensor signals, which helps to avoid false alarms. The sensor range is adjustable in up to 30 meters, 15 meters in each direction. It is possible to adjust the range of the two sensors independently. This allows you to accurately set the protected perimeter of the DualCurtain Outdoor and eliminate false alarms from random passers-by or trees swaying in the wind. In the mobile application, you can adjust the sensitivity of wireless sensors or deactivate one optical system.

DualCurtain Outdoor is resistant to interference. Thanks to the tamper on the device case, it will not be possible to remove the device from the mount — an alarm will be triggered. The optical systems of the detector are equipped with masking sensors that react to obstacles, painting of the body and curtaining of the device. The DualCurtain Outdoor cannot be blinded or silently disabled even if the burglar alarm is disarmed. If the wireless motion sensor DualCurtain Outdoor is destroyed instantly, the hub control panel will detect the loss of communication in less than a minute and inform the security console and users about the problem.

The outdoor motion sensor for alarm is mounted on the SmartBracket mount, without harm to repair and without disassembling the sensor housing. The wireless device connects to the smart control panel via a mobile application. To add a wireless motion sensor to the system, you need to scan the QR code with the Ajax application and assign a name and room to the device. Setting up the outdoor detector also takes place in real-time with detection and communication zones tests. You can turn off the outdoor motion sensor or reconfigure the system parameters without leaving the protected object.
