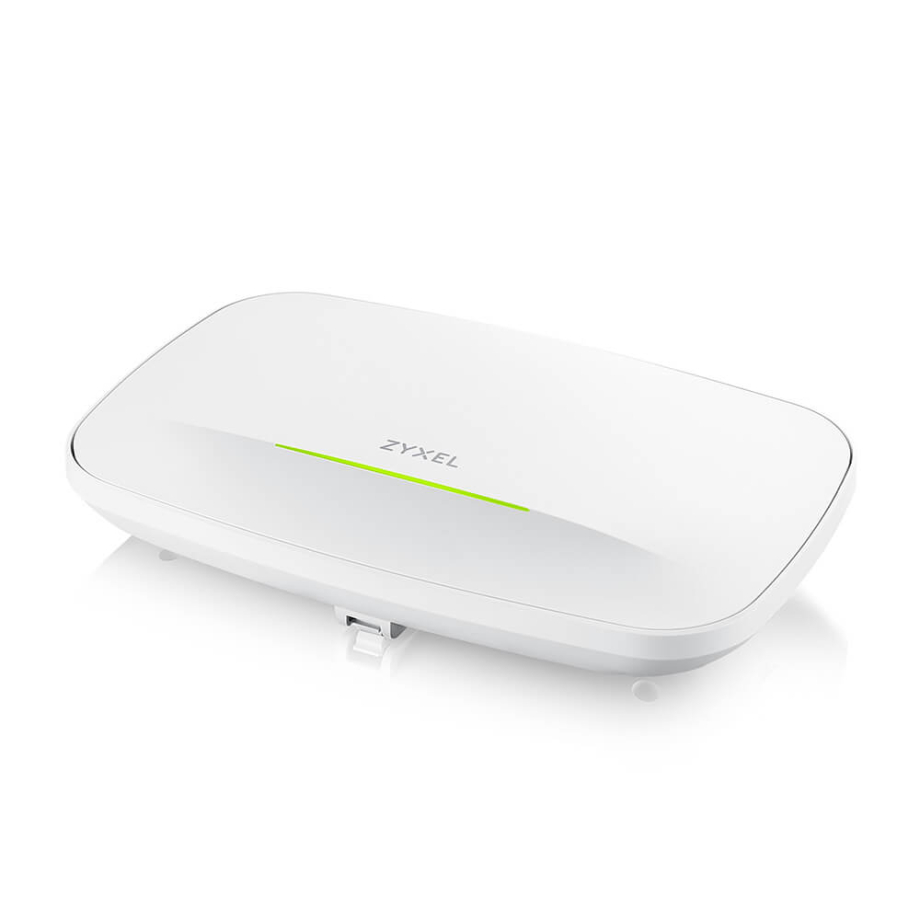

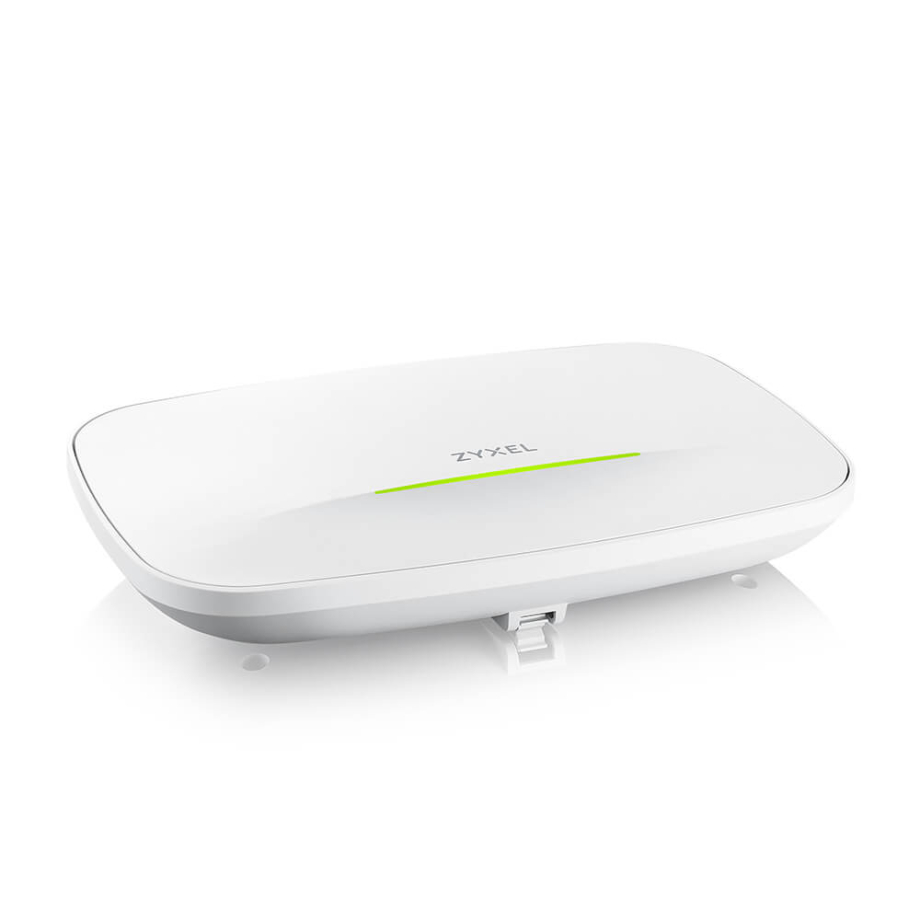

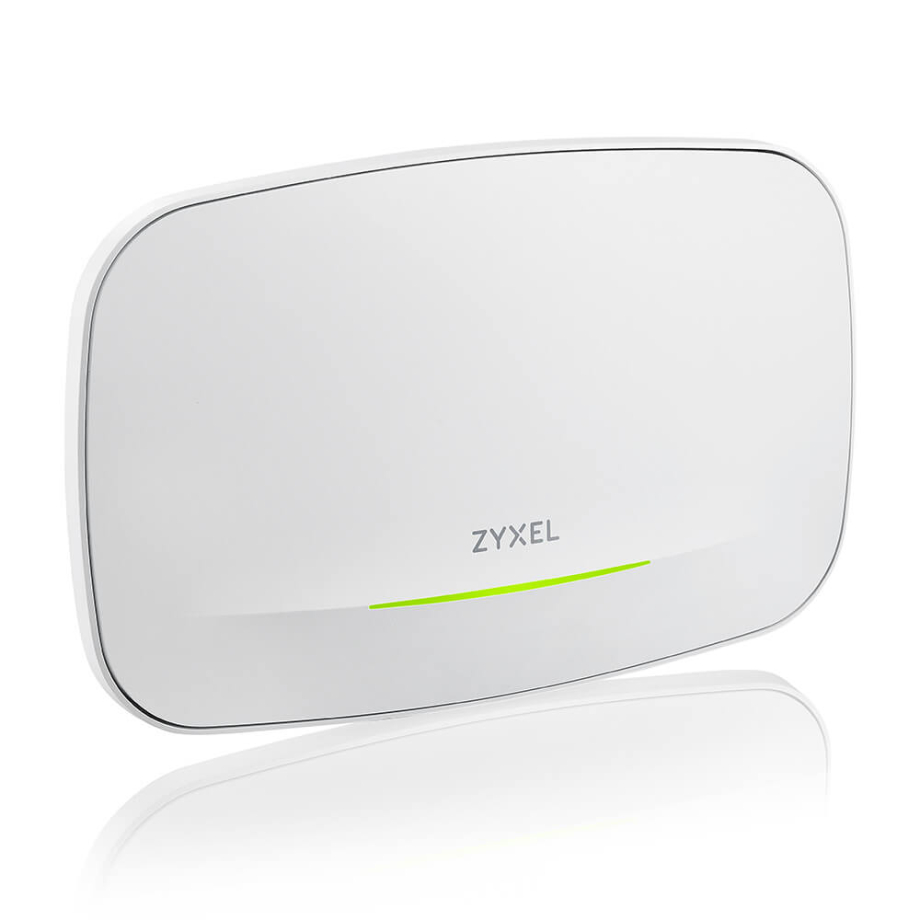

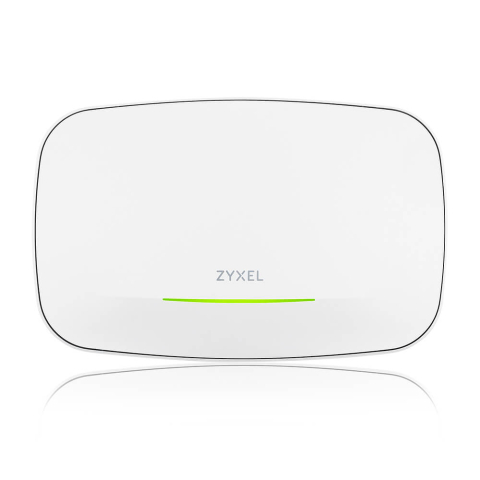

Zyxel Wi-Fi 7 Access Point NWA130BE

The Zyxel NWA130BE is a state-of-the-art access point designed to harness the full potential of Wi-Fi 7 (802.11be) technology. Operating across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, it delivers impressive wireless speeds: up to 688 Mbps on 2.4 GHz, 4,324 Mbps on 5 GHz, and 5,764 Mbps on 6 GHz. This tri-band configuration ensures optimal performance, significantly reducing network congestion and enhancing data throughput. The device incorporates Multi-User Multiple Input Multiple Output (MU-MIMO) technology, enabling simultaneous data transmission to multiple clients, thereby improving overall network efficiency. Additionally, features like OFDMA and TWT contribute to reduced latency and improved battery life for connected devices, respectively.

The NWA130BE is equipped with internal omnidirectional antennas, offering gains of 3 dBi for 2.4 GHz and 4 dBi for both 5 GHz and 6 GHz bands. The access point supports a conducted typical transmit output power of up to 27 dBm for 2.4 GHz, 25 dBm for 5 GHz, and 23 dBm for 6 GHz, ensuring extensive coverage. With a Mean Time Between Failures (MTBF) of approximately 698,312 hours, the device promises long-term reliability. It also features advanced RF filter to eliminate interference between 5 GHz and 6 GHz bands and a 4G/5G interference filter to ensure seamless coexistence with cellular networks.

The NWA130BE supports multiple management modes, including standalone operation and cloud-based management through Zyxel's Nebula platform. This flexibility allows network administrators to choose the management approach that best fits their infrastructure. The device is equipped with robust security protocols, such as WPA3, WPA2-Enterprise, and IEEE 802.1X authentication, ensuring secure wireless communications. Additional features include rogue AP detection, Layer 2 isolation, and MAC filtering, which enhance network protection against unauthorized access. The access point also supports advanced networking functionalities like VLANs, Quality of Service (QoS) with Wi-Fi Multimedia (WMM), and load balancing, which contribute to optimized network performance and reliability.

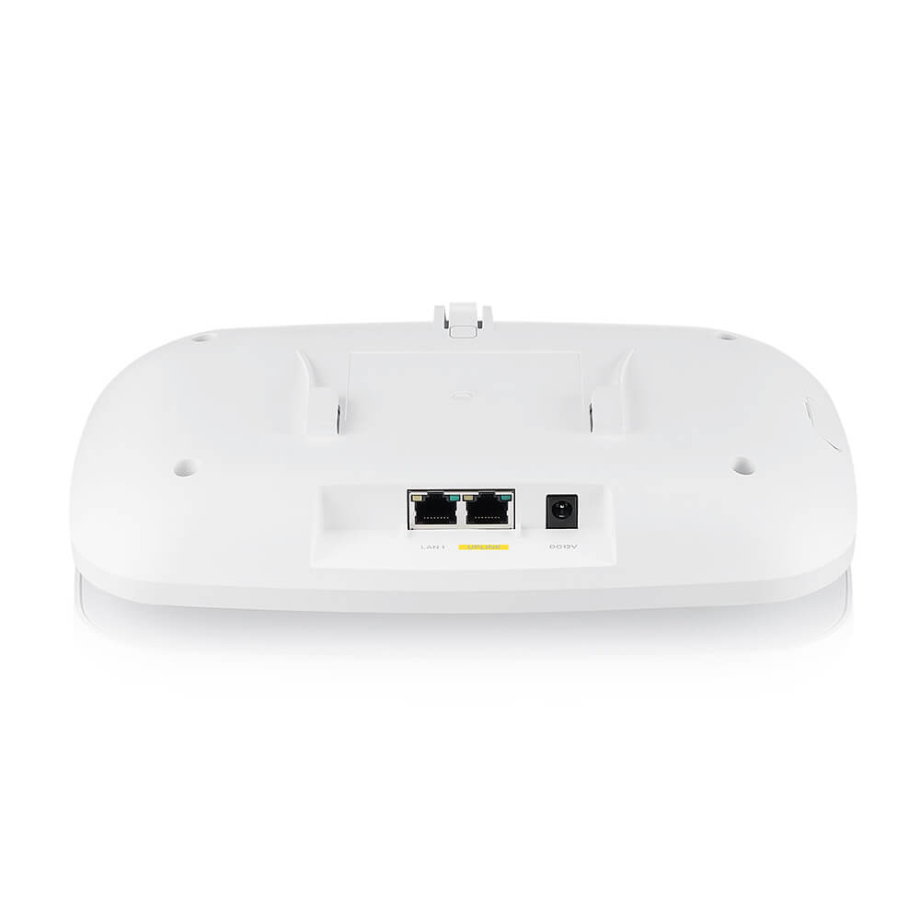

The NWA130BE supports Power over Ethernet (PoE) with IEEE 802.3at standards, drawing a power consumption of 24 W, which simplifies installation by transmitting power and data through a single Ethernet cable. Alternatively, it can be powered via a 12 VDC, 2 A direct current input. For connectivity, the access point is equipped with two 1/2.5 Gbps LAN ports, facilitating high-speed wired connections. However, it's important to note that the NWA130BE does not include a power adapter or PoE injector in the package; these must be purchased separately. This design choice aligns with common practices for enterprise-grade networking equipment, allowing for flexible power sourcing based on specific network requirements.
