Zyxel Nebula 5G Outdoor Router FWA710

The Zyxel Nebula FWA710 is a state-of-the-art outdoor router that leverages 5G NR technology to deliver exceptional wireless broadband performance. Compliant with 3GPP Release 15 standards, it supports both NSA and SA modes, ensuring compatibility with evolving network infrastructures. The device operates across a broad spectrum of frequencies, including FDD bands n1, n3, n5, n7, n8, n20, n28 and TDD bands n38, n40, n41, n77, n78, accommodating diverse deployment scenarios. With support for Sub-6 NR DL 2xCA (TDD/FDD) and DL 4×4 MIMO on select bands, the FWA710 achieves data rates of up to 4.67 Gbps (DL) and 2.5 Gbps (UL) in SA mode, and up to 3.74 Gbps (DL) and 1.46 Gbps (UL) in NSA mode, providing high-speed connectivity for bandwidth-intensive applications.

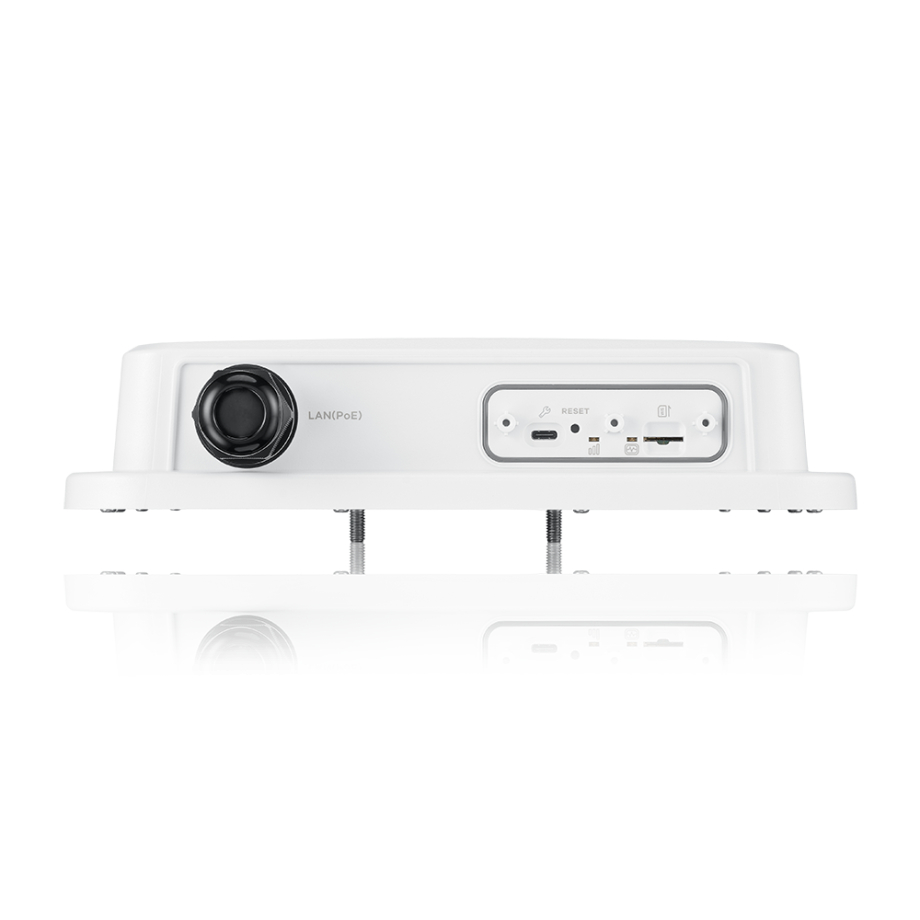

The FWA710 offers versatile network integration options, featuring a 2.5GbE RJ45 port with auto-rate and auto-duplex capabilities, facilitating seamless connectivity with existing network infrastructures. It supports Power over Ethernet (PoE) via the 802.3af/at standard, simplifying installation by eliminating the need for separate power supplies and reducing power consumption to less than 15 W. The device includes a 3FF micro SIM card slot for mobile broadband access and provides two LED indicators displaying 5G/4G signal strength and device status, aiding in quick diagnostics and monitoring.

The FWA710 features an 802.11 b/g/n Wi-Fi interface operating at 2.4 GHz with speeds up to 300 Mbps. This interface is equipped with 2x2 internal omnidirectional antennas, each providing up to 2 dBi gain, ensuring reliable short-range wireless connectivity. Importantly, this Wi-Fi functionality is exclusively dedicated to local management purposes, allowing administrators to wirelessly configure and monitor the router without requiring a wired connection. This dedicated management interface enhances flexibility, enabling efficient setup, diagnostics, and troubleshooting in remote or outdoor deployments where physical access may be limited.

Integrated with Zyxel's Nebula Cloud platform, the FWA710 enables centralized, real-time network management accessible from any location. This integration allows for effortless provisioning, configuration, and monitoring of network devices across multiple sites, enhancing operational efficiency. The Nebula platform offers features such as automatic network topology visualization, firmware management, and detailed analytics, providing comprehensive oversight of network performance. The FWA710 comes bundled with a one-year Nebula Pro Pack license, granting access to advanced functionalities and support services, ensuring that businesses can fully leverage the capabilities of their network infrastructure.

The Nebula FWA710 features an IP68-rated enclosure, offering protection against dust, dirt, sand, and water, making it ideal for challenging outdoor environments. The device operates efficiently within a temperature range of -40°C to 60°C and humidity levels from 5% to 95%, ensuring reliable performance under extreme conditions. It incorporates enhanced lightning protection compliant with K.21 standards, safeguarding the hardware against electrical surges. The router is equipped with six internal high-gain directional antennas, each providing up to 9 dBi gain, enhancing signal reception and transmission over long distances without the need for external antennas.
