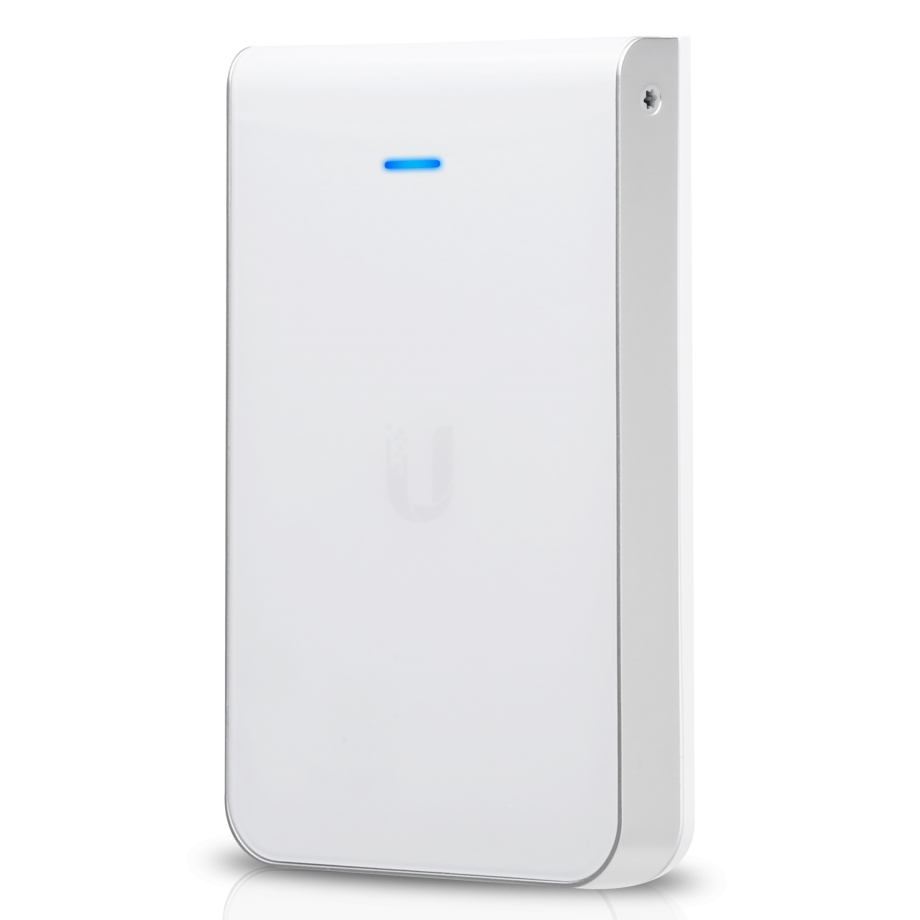

UniFi In-Wall HD

This item has been discontinued

Manufacturer part number

UAP-IW-HD

Warranty

12 months

EAN

0817882025485

We recommend to use the product presented below

Ubiquiti UniFi U6 Enterprise In-Wall

U6-Enterprise-IW

279.64 €

Available alternatives

cnPilot e430W Wall Plate, EU ver, No PoE

254.29 €159.00 €

-37%

Reyee Wi-Fi 5 Ceiling Access Point

101.66 €

Reyee Wi-Fi 5 Wall-mounted Access Point

53.64 €

Reyee Wi-Fi 5 Wall-mounted Gigabit Access Point

121.98 €

Detailed description

802.11ac 4x4 MIMO Access Point

UniFi InWall HD is a universal dual-band access point, which is designed for flush installation, for use in office environments where it is difficult to install standard models for various reasons. The access point has the appearance of a conventional Ethernet socket, and is used with mounting instead.

UniFi InWall HD, despite its unusual form factor has a very productive radio part. The model supports 802.11 AC standards in wave 2 revision, which allows the use of Mu-Mimo and Beamforming technologies. Thus, the model is suitable even for use in high-density WiFi networks, which for such a compact model is more than decent result

Main Features

90 m² (1,000 ft²) coverage
200+ connected devices
WiFi 5 (4x4 MIMO)
802.3af for base functionality. 802.3at required if using PoE passthrough
1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)

/images/catalogue/description/659/inwallhd2-654b827a3504c-1200x1224.jpg

/images/catalogue/description/659/unifiinwallhd-6075569e26cfc-1501x563.jpg

Integrated Gigabit Switch

/images/catalogue/description/659/deviceresponsive1-607554d2309bd-1127x565.jpg

The network interface of the model includes 5 Ethernet ports, which is unexpectedly large for a WiFi access point. However, taking into account that the model also has Ethernet socket functions, it is quite natural. On one port the access point receives data and power, using 802.3at PoE+ scheme, and 4 other gigabit Lan ports are designed for subscribers. It should be noted that they have the option of pass-through 48V Pass-Through power supply.

/images/catalogue/description/659/devices6a0b3224-60755708e3cae-1170x930.jpg

The UniFi InWall HD achieves a maximum data rate of 1733 Mbps at 5 GHz, and 300 Mbps in the 2.4 GHz band. Thus, the total data transfer rate when using the access point exceeds the value of 2 Gbps. Supports an advanced package of features, including traffic prioritization.

Quick and Simple Installation

The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.

Works with the UniFi Network Application

UniFi Network Application allows to centrally manage multiple networks from an intuitive interface. Using this application you will be able to upgrade device firmware remotely, manage network users and guests, enjoy deep configuration options and also personalize the design, architecture, and privacy of guest hotspots.

/images/catalogue/description/659/appi-658c0e613b9e7-838x479.jpg

Custom decorative covers

An interesting feature of UniFi In-Wall HD is the ability to order the WiFi access point in different design options. This makes it even easier to integrate the device into the network, as it removes aesthetic limitations.

/images/catalogue/description/659/devices97262699-6075598fcad0a-1990x768.jpg

Compare with similar products

	UniFi In-Wall HD	UniFi nanoHD	UniFi AC High Density	UniFi AC SHD	UniFi FlexHD
Wireless Standard

802.11a/b/g/n/ac, 802.11ac Wave2	802.11a/b/g/n/ac, 802.11ac Wave2, 802.11r/k/v	802.11a/b/g/n/ac, 802.11ac Wave2, 802.11r/k/v	802.11a/b/g/n/ac, 802.11ac Wave2, 802.11r/k/v	802.11a/b/g/n/ac, 802.11ac Wave2	802.11a/n/ac, 802.11ac Wave2, 802.11r/k/v
MIMO

2.4GHz 2x2, 5GHz 4x4,	2.4GHz 2x2, 5GHz 4x4	2.4GHz 4x4, 5GHz 4x4	2.4GHz 4x4, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4	5GHz 4x4
2.4GHz Radio Rate

300 Mbps	300 Mbps	800 Mbps	800 Mbps	300 Mbps
5GHz Radio Rate

1.7 Gbps	1.7 Gbps	1.7 Gbps	1.7 Gbps	1.7 Gbps	1.7 Gbps
Wireless Antenna Frequency Range & Gain

2.4 - 2.4 (GHz) 1.8 (dBi), 5.0-5.0(GHz) 6 (dBi)	2.4 - 2.4 (GHz) 2.8 (dBi), 5 - 5 (GHz) 3 (dBi)	2.4 - 2.4 (GHz) 3 (dBi), 5.0 - 5.0 (GHz) 4 (dBi)	2.4 - 2.4 (GHz) 6 (dBi), 5 - 5 (GHz) 6 (dBi)	2.4 - 2.4 (GHz) 1.6 (dBi), 5 - 5 (GHz) 4 (dBi)	5.0-5.0(GHz) 10 / 15 (dBi)
Antenna range

90 m²	140 m²	140 m²	140 m²	115 m²	465+ m²
Ethernet Ports

5 x 1 Gbps	1 x 1 Gbps	2 x 1 Gbps	2 x 1 Gbps	1 x 1 Gbps	1 x 1 Gbps, 1 x 10 Gbps
Max Power Consumption

11 W	11 W	17 W	20 W	11 W	31 W
Environment

Indoor	Indoor	Indoor, Outdoor	Indoor, Outdoor	Indoor, Outdoor	Indoor, Outdoor

	UniFi In-Wall HD	UniFi nanoHD	UniFi AC High Density	UniFi AC SHD	UniFi FlexHD	UniFi WiFi BaseStation XG
Wireless Standard	802.11a/b/g/n/ac, 802.11ac Wave2	802.11a/b/g/n/ac, 802.11ac Wave2, 802.11r/k/v	802.11a/b/g/n/ac, 802.11ac Wave2, 802.11r/k/v	802.11a/b/g/n/ac, 802.11ac Wave2, 802.11r/k/v	802.11a/b/g/n/ac, 802.11ac Wave2	802.11a/n/ac, 802.11ac Wave2, 802.11r/k/v
MIMO	2.4GHz 2x2, 5GHz 4x4,	2.4GHz 2x2, 5GHz 4x4	2.4GHz 4x4, 5GHz 4x4	2.4GHz 4x4, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4	5GHz 4x4
2.4GHz Radio Rate	300 Mbps	300 Mbps	800 Mbps	800 Mbps	300 Mbps
5GHz Radio Rate	1.7 Gbps	1.7 Gbps	1.7 Gbps	1.7 Gbps	1.7 Gbps	1.7 Gbps
Wireless Antenna Frequency Range & Gain	2.4 - 2.4 (GHz) 1.8 (dBi), 5.0-5.0(GHz) 6 (dBi)	2.4 - 2.4 (GHz) 2.8 (dBi), 5 - 5 (GHz) 3 (dBi)	2.4 - 2.4 (GHz) 3 (dBi), 5.0 - 5.0 (GHz) 4 (dBi)	2.4 - 2.4 (GHz) 6 (dBi), 5 - 5 (GHz) 6 (dBi)	2.4 - 2.4 (GHz) 1.6 (dBi), 5 - 5 (GHz) 4 (dBi)	5.0-5.0(GHz) 10 / 15 (dBi)
Antenna range	90 m²	140 m²	140 m²	140 m²	115 m²	465+ m²
Ethernet Ports	5 x 1 Gbps	1 x 1 Gbps	2 x 1 Gbps	2 x 1 Gbps	1 x 1 Gbps	1 x 1 Gbps, 1 x 10 Gbps
Max Power Consumption	11 W	11 W	17 W	20 W	11 W	31 W
Environment	Indoor	Indoor	Indoor, Outdoor	Indoor, Outdoor	Indoor, Outdoor	Indoor, Outdoor
