Ubiquiti CWDM Mux Demux 4

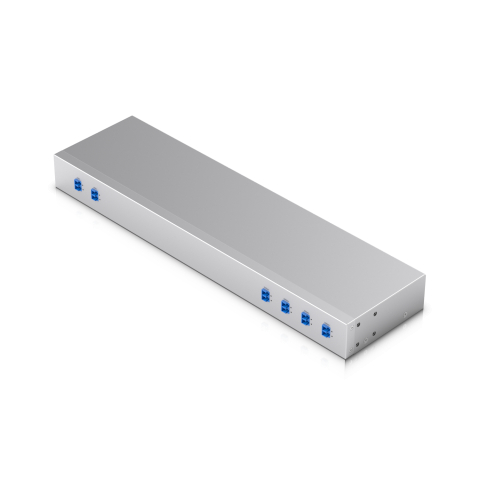

The Ubiquiti CWDM Mux Demux 4 (UACC-CWDM-4) is a rack-mountable solution designed to enhance the capacity of existing fiber optic infrastructure by multiplexing and demultiplexing four separate data channels. By utilizing Coarse Wavelength Division Multiplexing (CWDM) technology, this device enables the transmission of multiple data channels (1270, 1290, 1310, and 1330 nm) over a single fiber optic cable. This allows network administrators to expand the bandwidth of their fiber networks without the need to lay additional cables, making it a cost-effective solution for high-capacity data transfer in enterprise and data center environments. Ideal for applications that demand high-bandwidth connections, the CWDM Mux Demux ensures seamless integration with Ubiquiti's aggregation switches, such as the USW-Aggregation and USW-Pro-Aggregation.

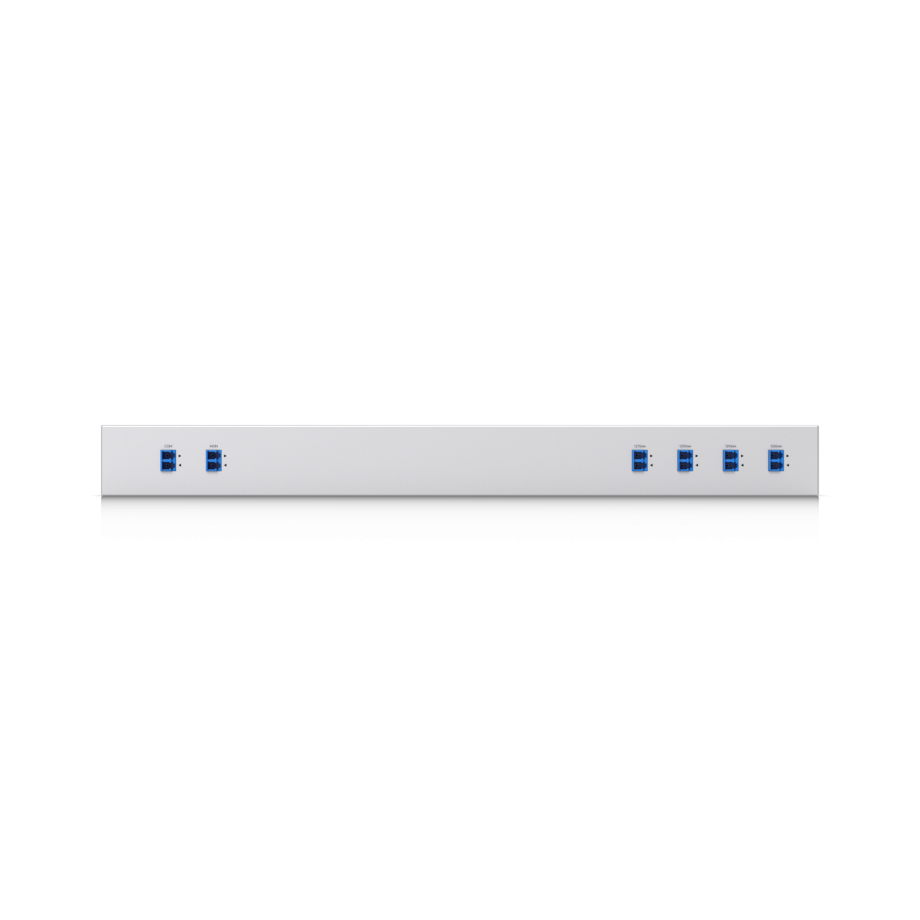

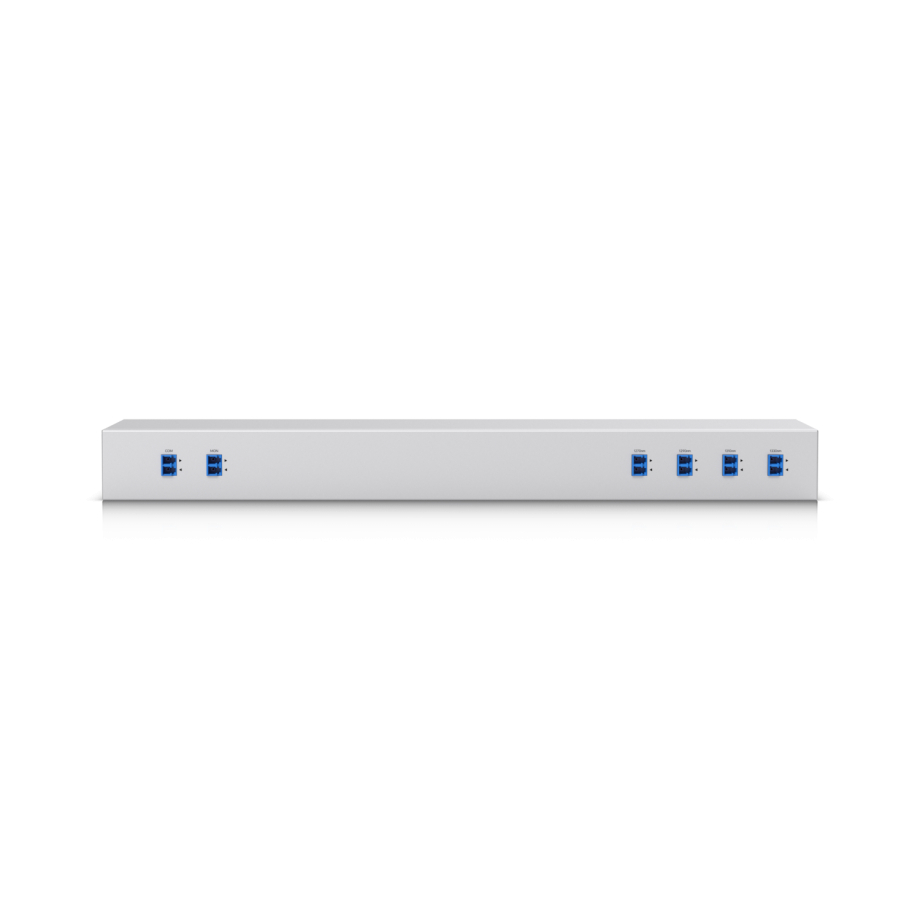

Equipped with multiple Duplex LC UPC ports, the UACC-CWDM-4 supports straightforward connectivity and monitoring. It features a Duplex LC UPC communication port, allowing for linking to another CWDM Mux Demux 4 over single-mode fiber cables, making network expansion simple and efficient. Additionally, the device comes with a Duplex LC UPC monitor port, enabling real-time observation using a power meter or optical spectrum analyzer. This feature allows for easy diagnostics and ensures the smooth operation of your CWDM system. The four-channel Mux/Demux provides a compact yet powerful solution for increasing network capacity without compromising on reliability.

Designed for reliability, the CWDM Mux Demux 4 supports single-mode fiber type (SMF-28e) and offers a maximum power handling capacity of 500 mW. Its four Mux/Demux channels allow precise data channeling with channel center wavelengths between 1270 and 1330 nm. With an ambient operating temperature range of -30 to 75°C, this unit is well-suited for various indoor environments, providing the robust performance necessary for critical applications. Its compact, rack-mountable design ensures that it integrates seamlessly into existing fiber setups in data centers or enterprises. Whether you're expanding a corporate data center or optimizing fiber use in an enterprise environment, the CWDM Mux Demux 4 provides the flexibility and scalability needed for modern high-speed network demands.
