Detailed description
Compact and Cost-Effective Solution
The Teltonika TSW010 is a compact Ethernet switch designed for seamless connectivity in various networking applications. Featuring five 10/100 Mbps Ethernet ports, this unmanaged switch provides a versatile and cost-effective solution for expanding network infrastructure in small offices, industrial environments, and IoT deployments. Its auto-negotiation and auto MDI/MDIX support ensure effortless installation and operation, eliminating the need for manual configuration. The TSW010 is ideal for applications where gigabit speeds are not required, but reliable wired connectivity is essential, such as connecting industrial equipment, IP cameras, access control systems, and other networked devices.
One of the standout features of the TSW010 is its support for passive PoE input (9-30V DC), allowing it to be powered using existing network infrastructure, reducing the need for additional power cables and simplifying deployment. This feature makes it an excellent choice for installations where power sources are limited or where centralized power management is preferred. Additionally, the switch features low power consumption, making it an energy-efficient option for businesses and industrial applications looking to optimize operational costs.

Versatile and Easy to Deploy
The Teltonika TSW010 is designed for effortless integration into various networking environments. Its DIN rail and surface mounting options provide flexibility in installation, ensuring a secure and organized setup in cabinets, enclosures, or wall-mounted configurations. With its seamless setup functionality, users can expand their networks instantly without needing advanced technical knowledge. Whether deployed in industrial automation, security systems, IoT networks, or small office setups, the TSW010 delivers stable, cost-effective, and easy-to-manage Ethernet connectivity, making it a perfect choice for both professionals and businesses seeking reliable networking solutions.
Built to withstand challenging conditions, the TSW010 features a rugged aluminum housing that enhances durability while maintaining a lightweight and compact design. It operates efficiently in a wide temperature range of -40°C to +75°C, making it suitable for both indoor and outdoor deployments in industrial automation, smart cities, and transportation networks. Additionally, the switch is shock and vibration resistant, ensuring stable performance even in demanding environments. The fanless design contributes to its long-term reliability by minimizing potential failure points and enabling silent operation in noise-sensitive areas.
Technical Specs / Datasheet
Specifications
Interfaces

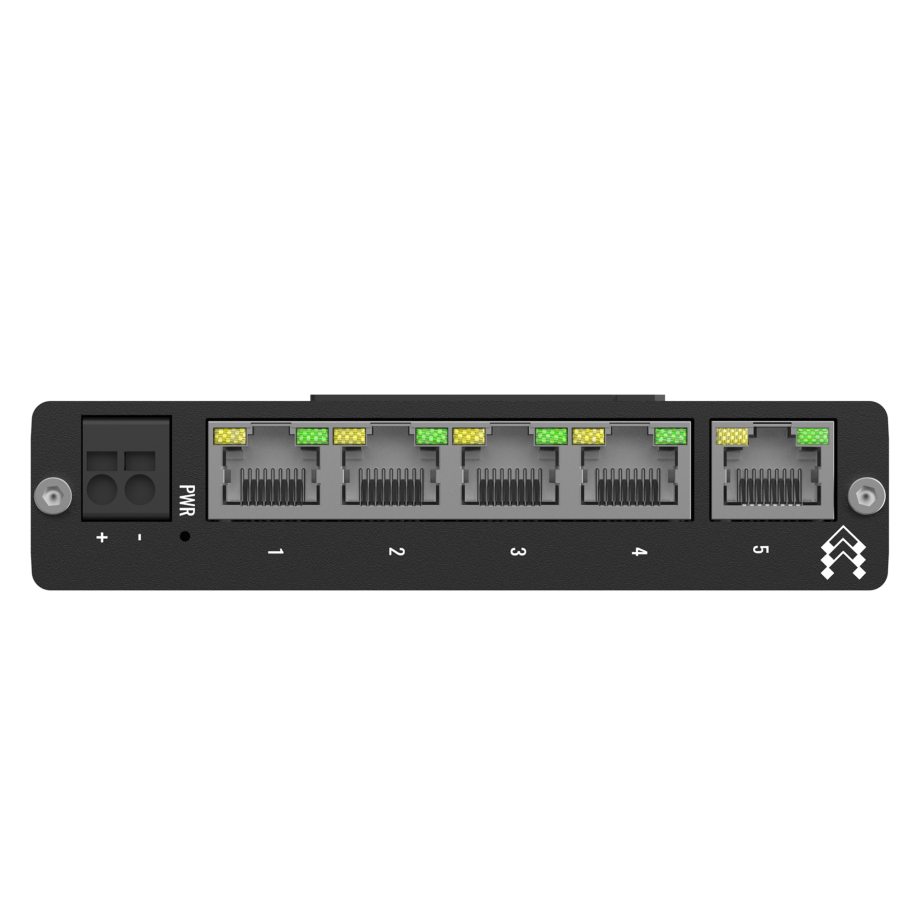

RJ45 Ports
(5) 100 Mbps
PoE Out Standards
w/o PoE
Power
Supported Input Voltage
9 - 30 V DC
Max Power Consumption
0.9 W
Power Connector
2-pin, 3 mm
Physical Parameters
Ingress Protection Code
IP30
Dimensions
113.1 x 27.4 x 80.5 mm
Weight
0.147 kg
Operating Temperature
-40 °C to 75 °C
Environment
Indoor

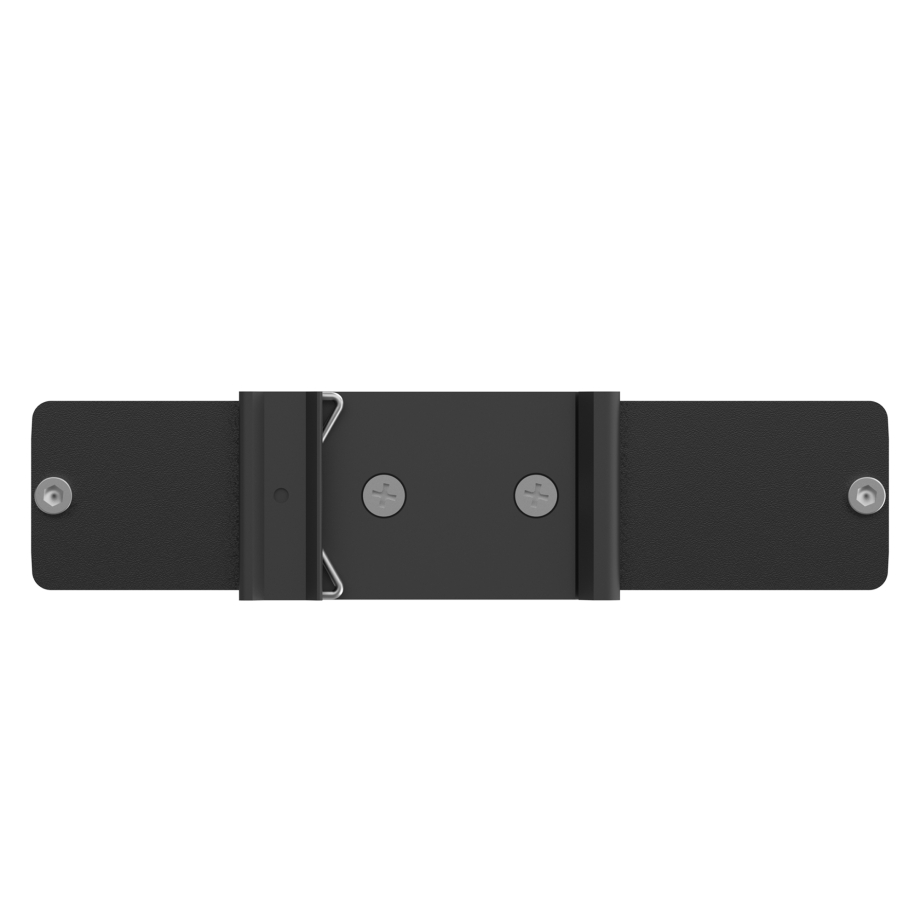

Mounting Method
DIN Rail, Wall Mount
Package Contains
External Power Supply
Not Included
