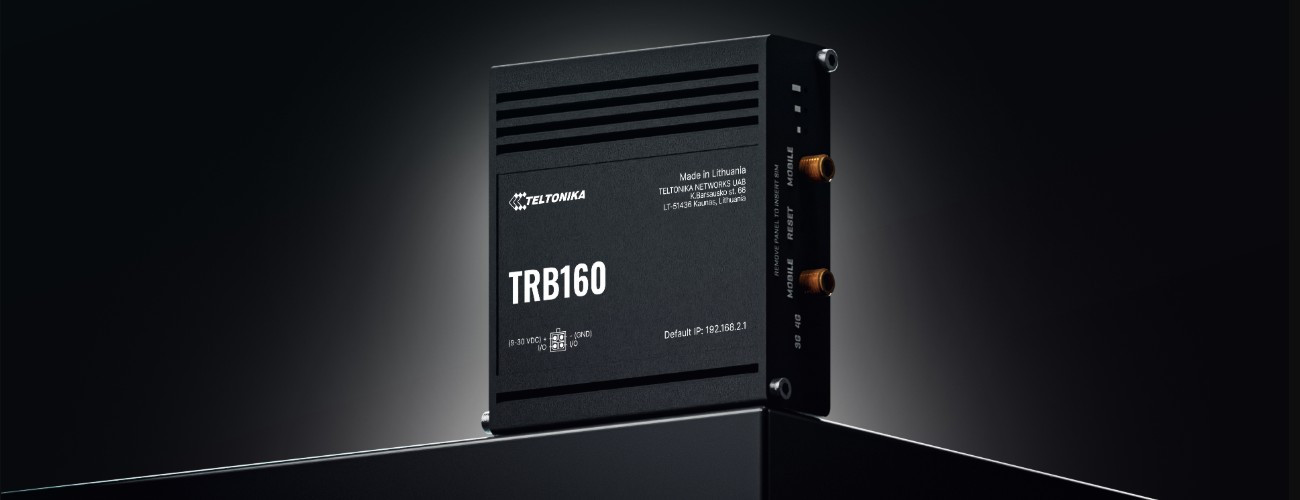

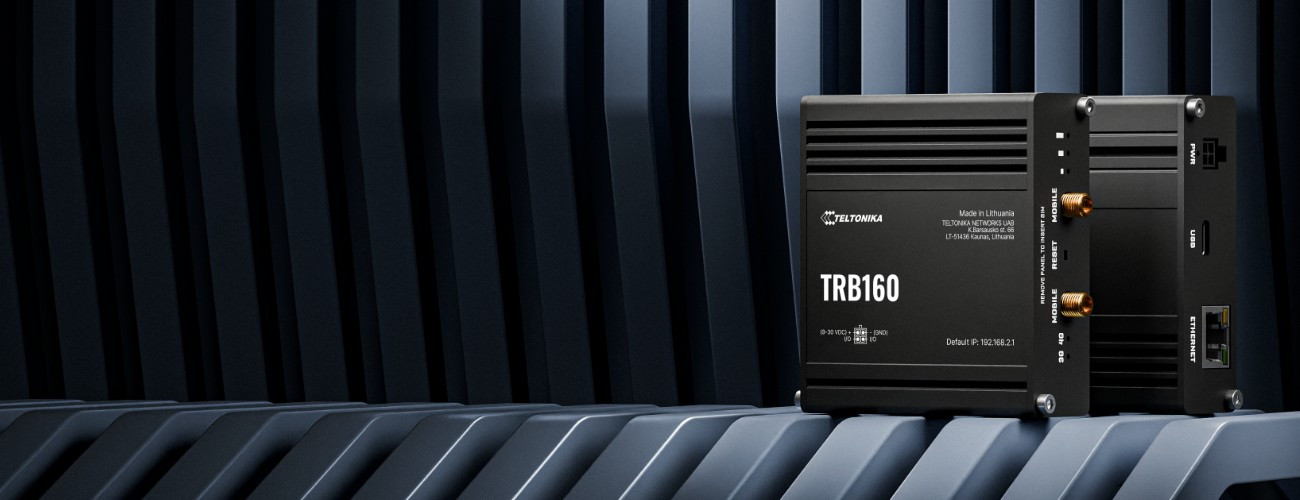

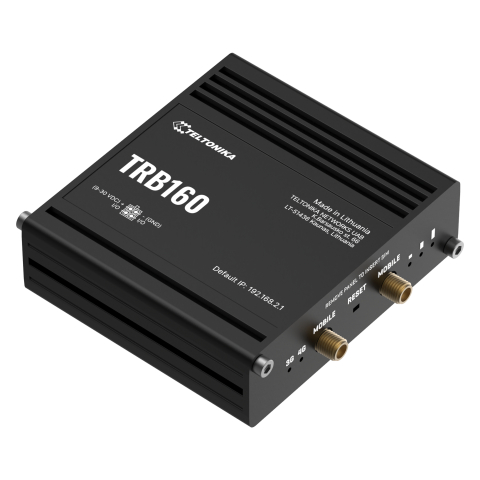

Teltonika TRB160 LTE Cat6 IoT Gateway

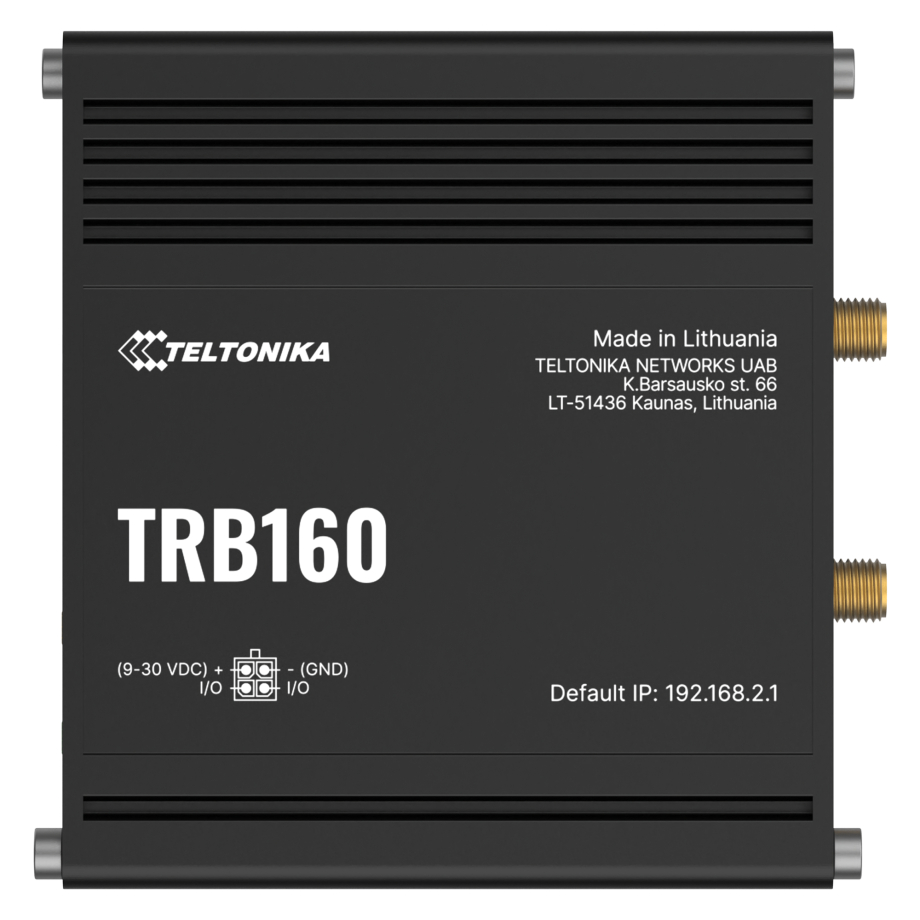

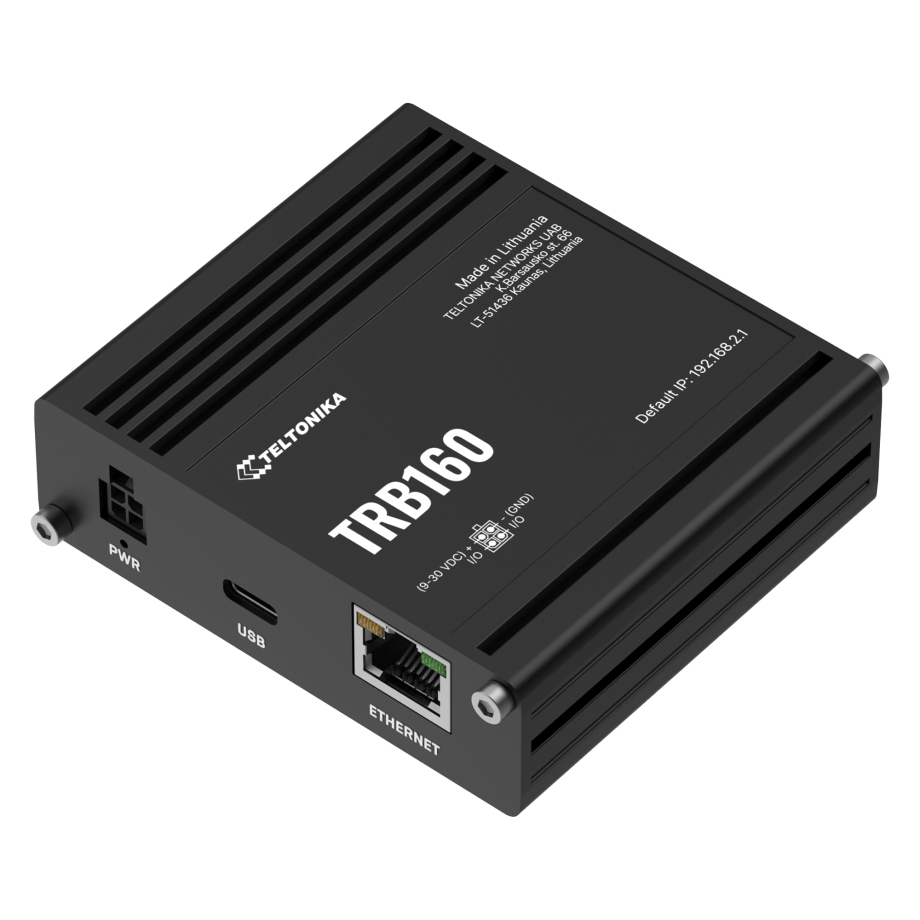

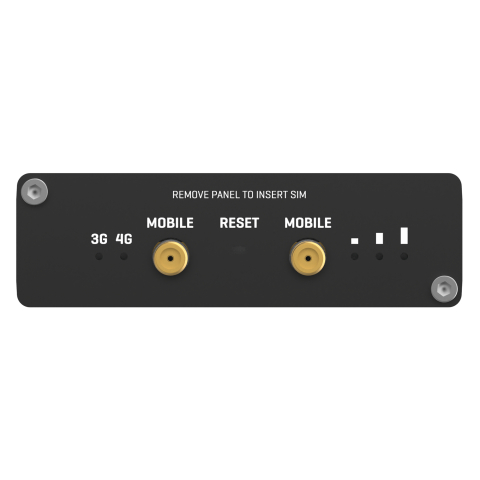

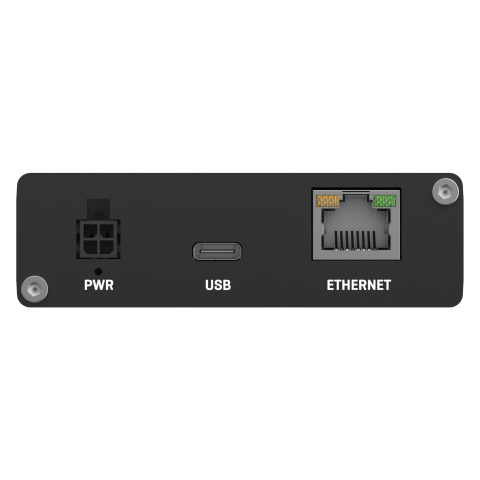

The Teltonika TRB160 is a compact and energy-efficient LTE Cat6 IoT gateway designed for industrial applications. It offers cellular download speeds up to 300 Mbps and upload speeds up to 50 Mbps, utilizing carrier aggregation for enhanced performance. The device supports 3G networks with download speeds up to 42 Mbps and upload speeds up to 5.76 Mbps. Equipped with an internal Mini SIM slot and optional eSIM support, the TRB160 ensures reliable mobile connectivity. It also features dual SMA connectors for external antennas, enhancing signal reception in challenging environments. For wired connectivity and device integration, the gateway provides one Ethernet port (10/100 Mbps) and two configurable digital I/Os accessible via the 4-pin power connector, enabling connection to sensors, alarms, or other automation devices. The gateway operates within a wide temperature range of -40°C to 75°C, making it suitable for deployment in harsh industrial conditions.

The TRB160 supports a wide range of industrial-grade communication protocols, including OPC UA, Modbus, MQTT, DNP3, DLMS, and more. This versatility enables seamless integration into existing industrial systems and facilitates M2M communication. The device also supports SMS functionalities, allowing for SMS status monitoring, configuration, and various SMS operations such as sending/reading SMS via HTTP POST/GET, email to SMS, SMS to email, and scheduled SMS. Additionally, the gateway supports sending and reading Unstructured Supplementary Service Data (USSD) messages, providing enhanced control over mobile network interactions. The TRB160's ability to handle multiple protocols and SMS functionalities makes it a robust solution for diverse IoT applications, ensuring reliable data exchange and remote management capabilities.

The TRB160 is equipped with advanced management capabilities, including a Web User Interface (WebUI) for easy configuration and monitoring. It supports FOTA updates, allowing for remote firmware management and ensuring the device remains up-to-date with the latest features and security patches. The gateway also integrates with Teltonika's Remote Management System (RMS), enabling centralized monitoring and management of multiple devices. Security features include a pre-configured firewall with options for unlimited customization via the Command Line Interface (CLI), DDOS prevention mechanisms, and port scan protection. The device supports various authentication methods, including pre-shared keys, digital certificates, and RADIUS authentication, ensuring secure access control. These comprehensive management and security features make the TRB160 a reliable and secure choice for industrial IoT deployments.
