Teltonika FMM230
Certified Teltonika Engineers
Official Teltonika Distributor
in stock
?
65.95 €
65.95 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailed description

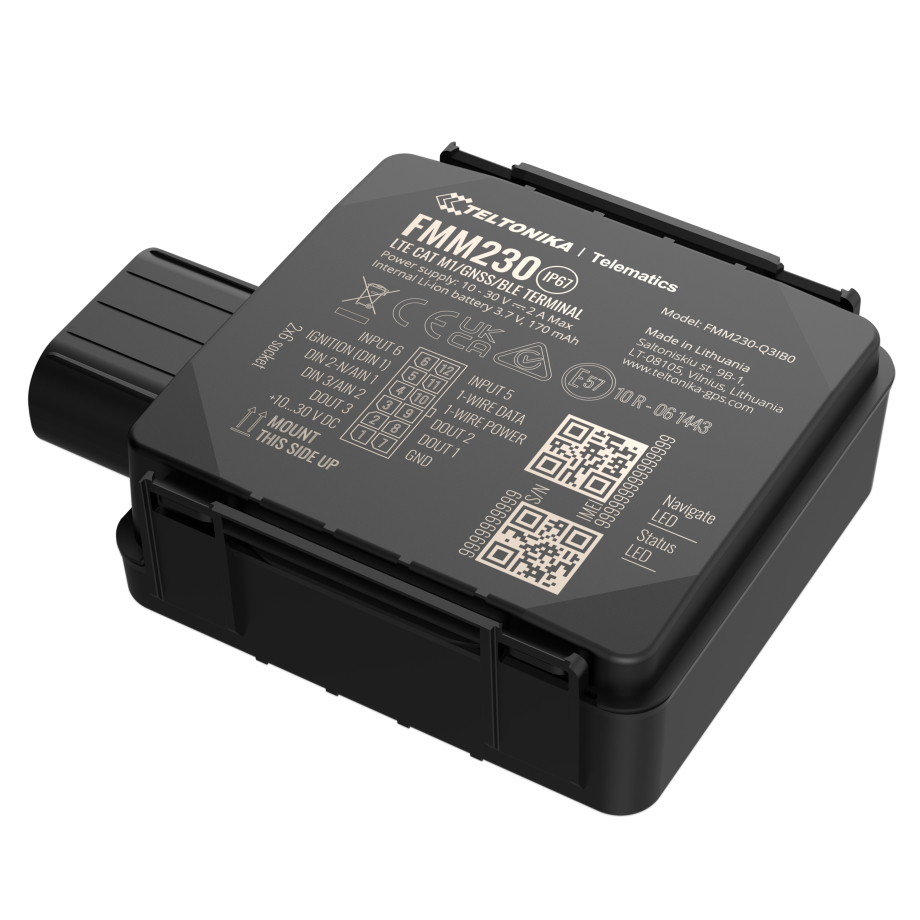

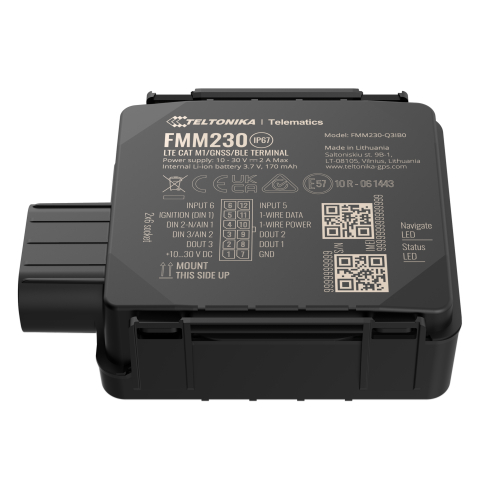

FMM230 is a WATER AND DUST RESISTANT real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS and LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs.
FMM230 is developed on the FMM130 Teltonika platform, therefore it keeps all the functionalities from FMM130 with an additional IP67 resistance to dust and water.
This tracker is dust tight and protected against the effects of a temporary immersion in water. It can be mounted inside and outside a vehicle without worries that high pressured water, mud or dusty environment will impact its operation or performance quality. This is particularly relevant for the industries where harsh conditions exist, such as agriculture, construction and mining, and more.
FMM230 is able to collect device coordinates and transfer them via GSM network to a server. This device is perfectly suitable for applications, which require the location acquirement of remote objects.
Package includes:
- FMM230 device
- Input and output power supply cable with 2x6 connection pins
- Micro USB cable
- 3.7 V 170 mAh rechargeable Li-ion battery
Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
2G (GSM), 4G (LTE), NB-IoT
LTE Category
Cat1 - 10Mbps/5Mbps
FDD LTE Frequency Bands
1 (2100MHz), 2 (1900MHz), 3 (1800MHz), 4 (1700MHz), 5 (850MHz), 8 (900MHz), 12 (700MHz), 13 (700MHz), 18 (850MHz), 19 (850MHz), 20 (800MHz), 25 (1900MHz), 26 (850MHz), 27 (850MHz), 28 (700MHz), 66 (1700MHz)
SIM Card Slot
Micro-SIM, eSIM
Interfaces
Interface
(3) Digital Input, (3) Digital Output, (2) Analog Input, (1) Negative Input, (2) Impulse Input
Communication Interface
1-Wire, CAN adapters support
Management
Bluetooth
Bluetooth
4.0 LE
Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Software
Eco driving, Fuel monitoring digital, Crash detection, Towing detection
Sensors
BLE Sensors/ Beacons, Bluetooth temperature and humidity sensor, 1-wire TTJ temperature sensor, Accelerometer
Authorized Driving
iButton reader
Power
Supported Input Voltage
10 - 30 V DC
Battery Type
Li-Ion
Battery
170 mAh 3.7 V
Internal Battery Energy
0.63 Wh
Physical Parameters
Color
Black
Ingress Protection Code
IP67
Dimensions
85 x 67 x 26 mm
Weight
0.055 kg
Operating Temperature
-20 °C to 85 °C
