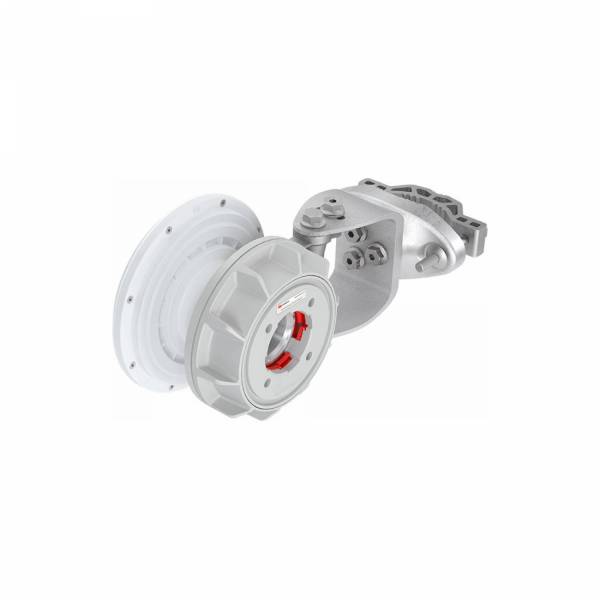

Symmetrical Horn Sector Antenna 90°, TwistPort

Symmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPort™ (TP) connector. Deployed in the field since 2014, they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection, network scalability and throughput increase. Approved by tens of thousands of installations all around the globe, RF elements Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless.

Symmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical.

Symmetrical Horn TP Antennas have no side lobes, they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties, the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently, being basically "deaf" outside their main beam.

The beam pattern does not vary with frequency and the antenna gain is balanced over a very wide frequency range. These features make Symmetrical Horns TP antennas excellent sector antennas.

Symmetrical Horn TP Gen2 Antennas cover an ultra-wideband spectrum: 5180-6400 MHz!

Mainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high, the customers that are too close will suffer from low AP signal.

Symmetrical Horn TP Antennas have naturally attenuated side lobes and extremely low back radiation. Symmetrical Horn TP Antennas are perfect for high density cluster sector installations with high co-location requirements.

Wide selection of beam angles allows for a wide range of deployment scenarios, covering high distance sectors as well as MicroPoPs.

Symmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.

Symmetrical Horn TP Antennas feature the industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless: with radios built according to the Reference design, there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand!

The wide range of TwistPort™ Adaptors allows you to connect most popular connectorized radios from other vendors, such as UBNT™, Mimosa™, MikroTik™ or Cambium Networks™, directly to any TwistPort™-enabled antenna.

Symmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. RF Elements use only the best materials: die-cast, stamped and extruded aluminium; high quality ABS plastic, high density polyethylene; and stainless steel hardware.

Symmetrical Horn TP Gen2 Antennas offer a wide selection of seven different radiation angles covering 30° - 90° with 10° steps. This worldwide unique feature allows network builders to follow the golden rule of wireless networking: to choose the right antenna for the particular job.

While competitors limit their offering to literally a couple of sector antennas, RF elements provides a wide selection of coverage patterns, so you can achieve sector coverage exactly as you need it. This is an essential base for increasing throughput and scaling your wireless networks.
