Brand
Manufacturer part number
R240S
Warranty
?
12 months
EAN
5907772035146

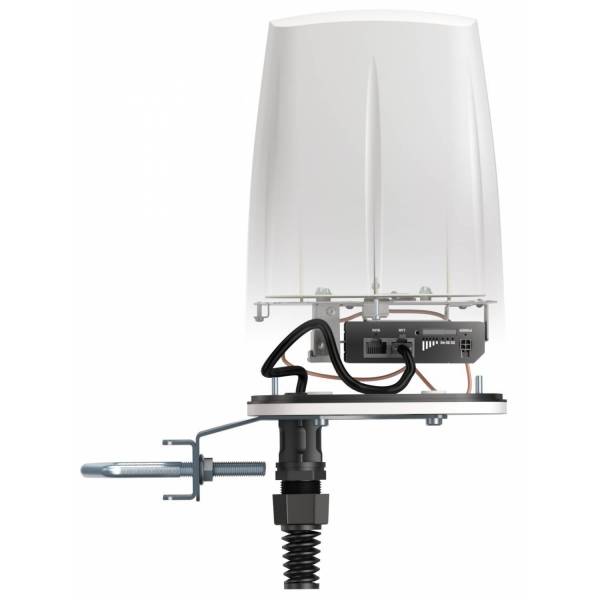

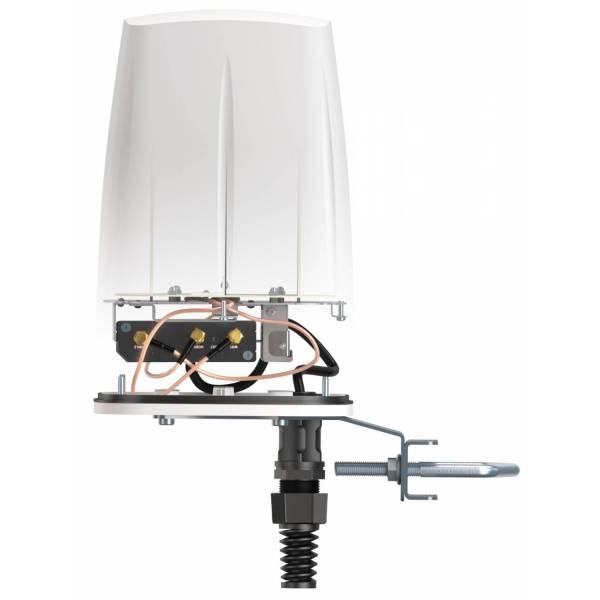

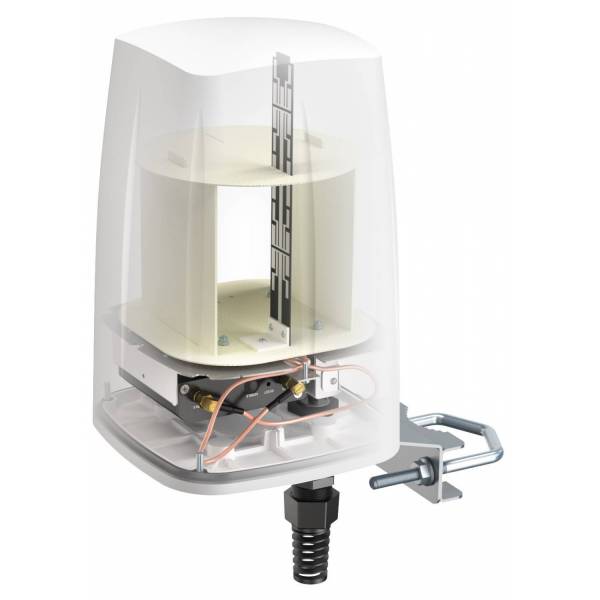

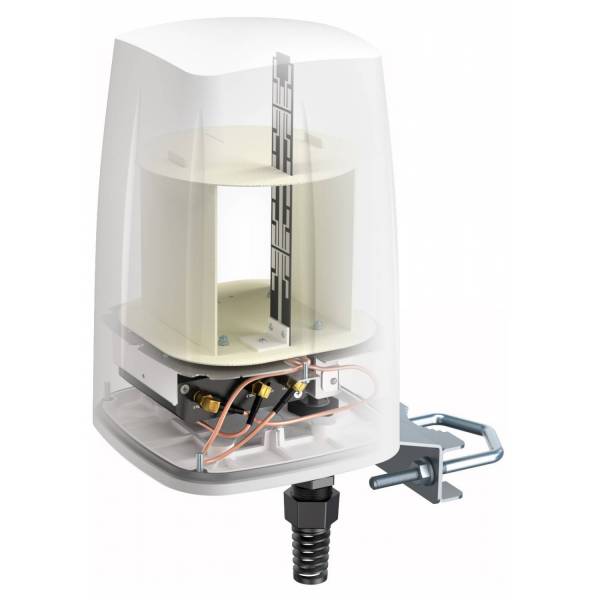

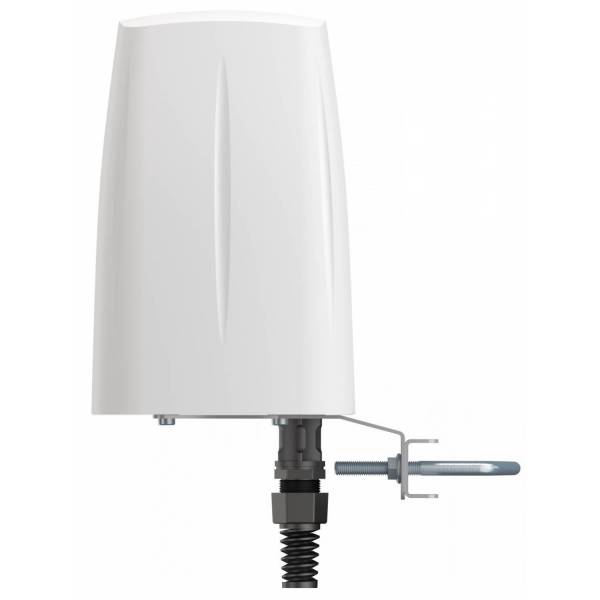

QuRouter 240S
in stock
?
-14% 237.90 €
205.00 €
-14% 237.90 €
205.00 €
Available product variations
Detailed description
QuRouter 240S is a cost-effective and powerful outdoor industrial LTE Cat 4 & Wi-Fi router for professional application. Integrated with omnidirectional LTE and Wi-Fi antennas. The mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous environments where a wide operating temperature is required. Equipped with an external SIM holder.
Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
2G (GSM), 3G (UMTS), 4G (LTE)
LTE Category
Cat4 - 150Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Micro-SIM
Wireless Network
Standards
802.11b/g/n
2.4GHz Radio Rate
150 Mbps
Antenna
Antenna Design
Dome
Wireless Antenna Frequency Range & Gain
2.40 - 2.50 (GHz) 6 (dBi)
Mobile Antenna Frequency Range & Gain
0.694 - 0.96 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Beamwidth
360 °
Polarization
Vertical
VSWR
< 1.7
Impedance
50 Ω
Interfaces
RJ45 Ports
(1) 100 Mbps
Management
Ethernet
System Specification
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM
64 MB
Storage Memory
16 MB
Power
Power Method
24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 30 V DC
Max Power Consumption
5 W
Power Connector
4-pin, 3 mm
Physical Parameters
Color
White
Material
Galvanized steel, Aluminium, ABS Plastic
Ingress Protection Code
IP67
Dimensions
160 x 160 x 240 mm
Weight
1.5 kg
Operating Temperature
-40 °C to 75 °C
Environment
Outdoor
Mounting Method
Pole Mount
