QuMax for RUT360
in stock
?
106.19 €
106.19 €
Detailed description

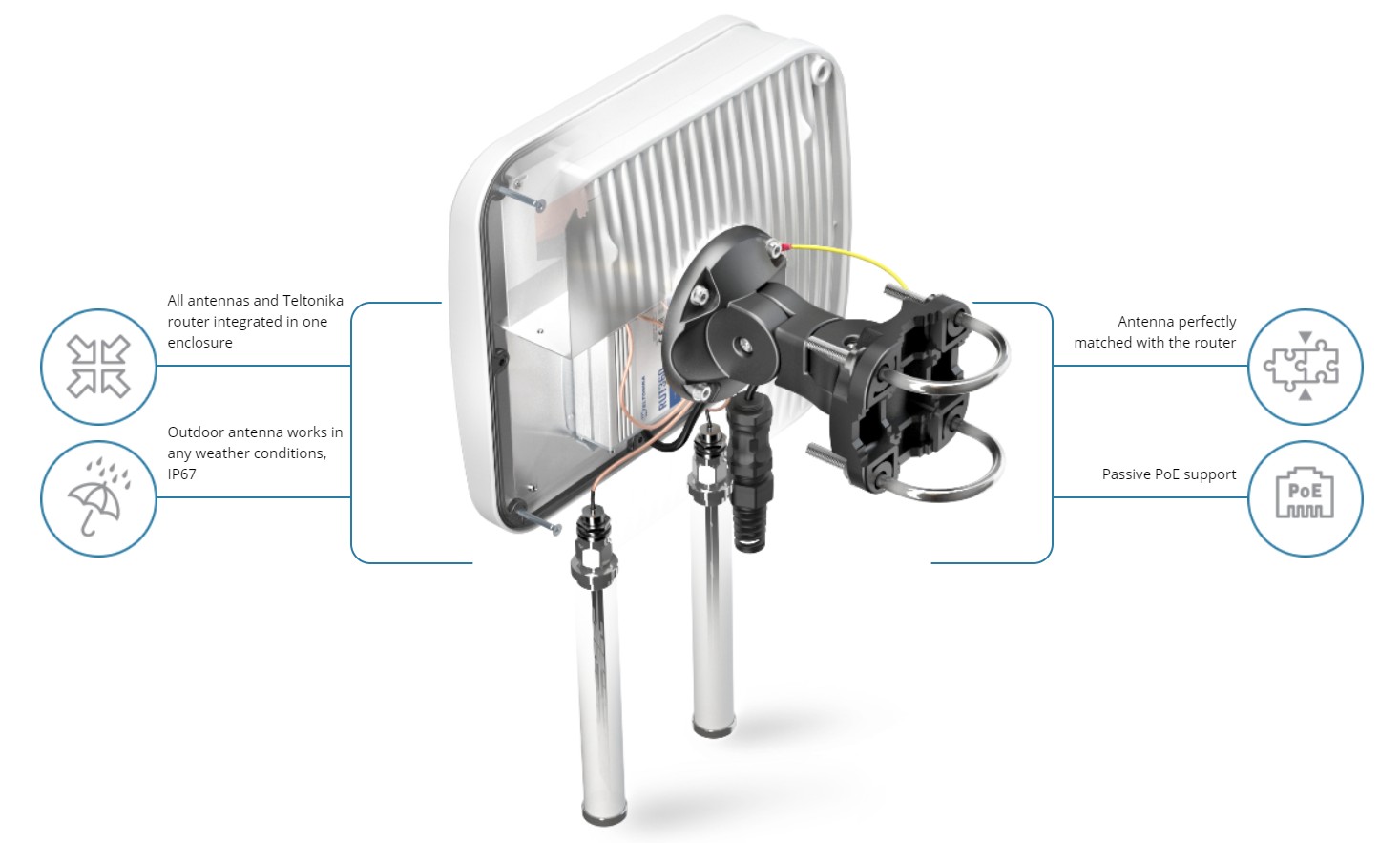

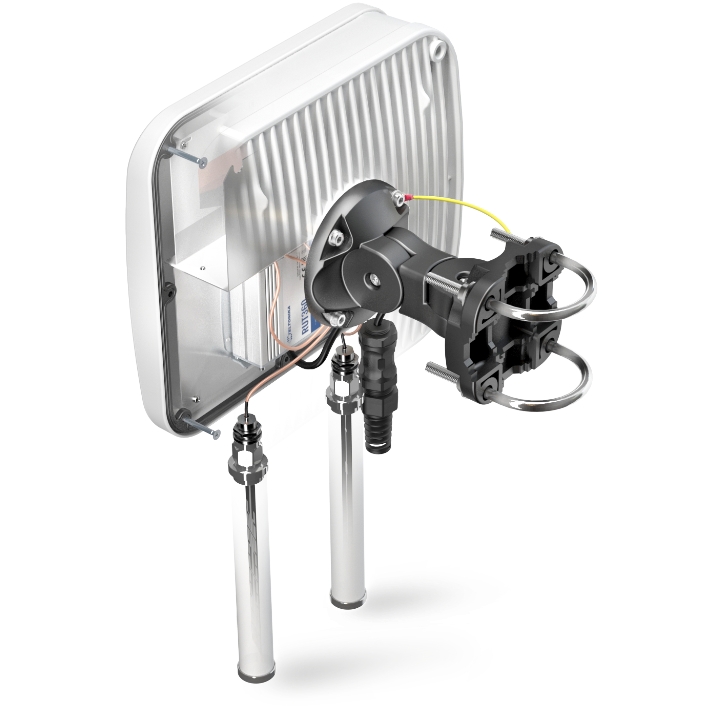

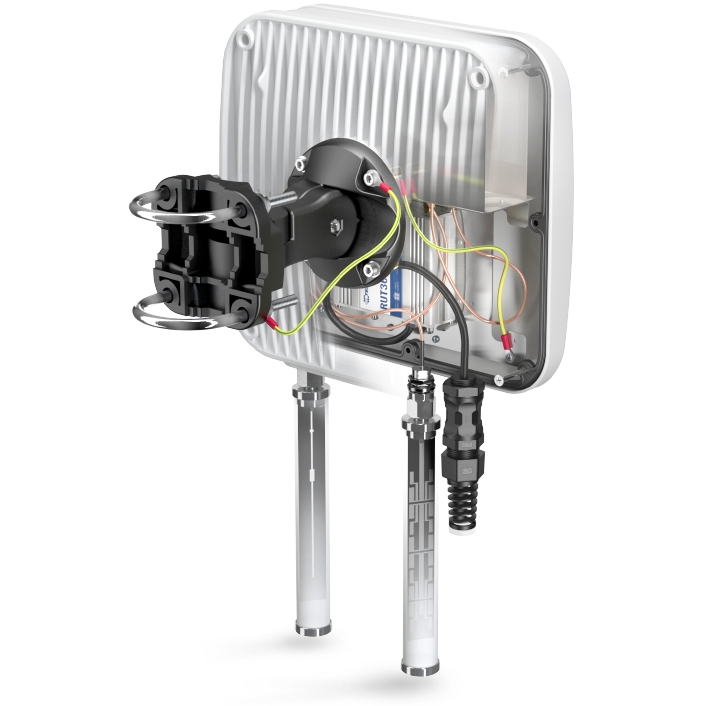

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT360 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. This antenna is the first choice for fixed installations in industrial environment. It also has embedded outdoor Wi-Fi omni antennas.
Compatible products
Specifications
Antenna
Antenna Design
Panel
Wireless Antenna Frequency Range & Gain
2.40 - 2.50 (GHz) 6 (dBi)
Mobile Antenna Frequency Range & Gain
0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Beamwidth
90 ° Vertical, 90 ° Horizontal
Polarization
Vertical
VSWR
< 2
Impedance
50 Ω
Connectors
RF Connectors
(2) N Male, (2) N Female
Ethernet Connector
RJ45 Jack
Physical Parameters
Material
Aluminium, ABS Plastic, Fiberglass, Polytetrafluoroethylene
Ingress Protection Code
IP67
Dimensions
272 x 276 x 96 mm
Weight
1.8 kg
Operating Temperature
-40 °C to 75 °C
Environment
Outdoor
Mounting Method
Pole Mount
