Brand
Manufacturer part number
APLS1-H1
Warranty
?
12 months
EAN
5907772035511

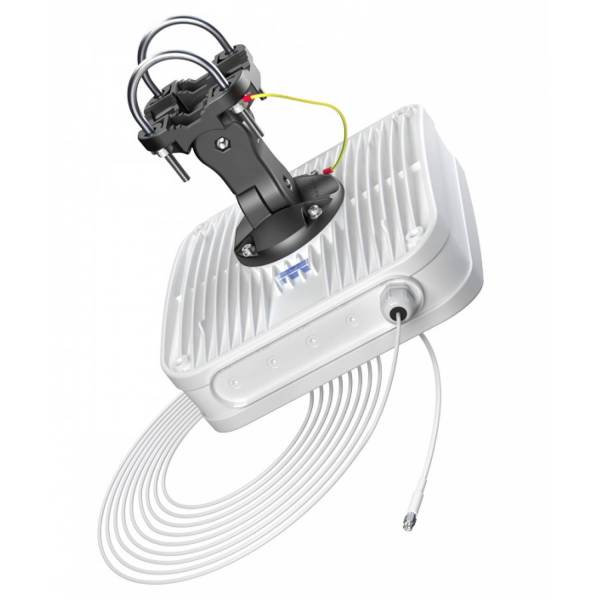

QuPanel LTE High Power SISO, 10m cable
in stock
?
-18% 81.62 €
67.00 €
-18% 81.62 €
67.00 €
Detailed description
Directional High Power multiband LTE SISO antenna
QuPanel LTE HP directional high gain antenna is predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall).
Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Panel
Mobile Antenna Frequency Range & Gain
0.694 - 0.960 (GHz) 7 (dBi), 1.7 - 2.7 (GHz) 7 (dBi)
Beamwidth
70 ° Vertical, 70 ° Horizontal
Cable Length
10 m
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors
(1) SMA Male
Physical Parameters
Ingress Protection Code
IP67

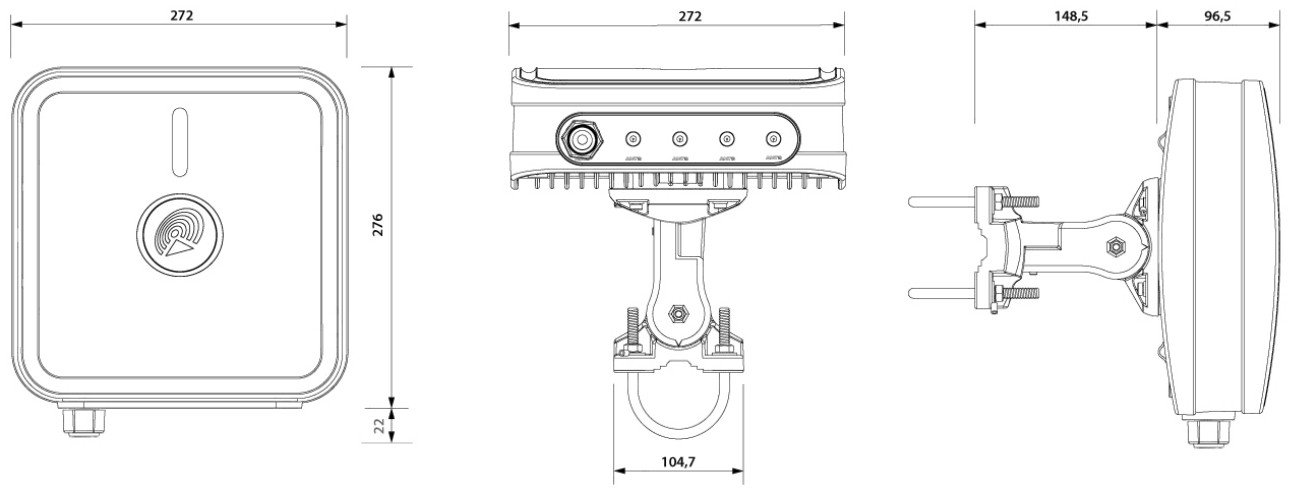

Dimensions
276 x 272 x 96 mm
Weight
1.8 kg
Operating Temperature
-40 °C to 75 °C
Mounting Method
Pole Mount
